2. CUTTER BLADES AND PENS

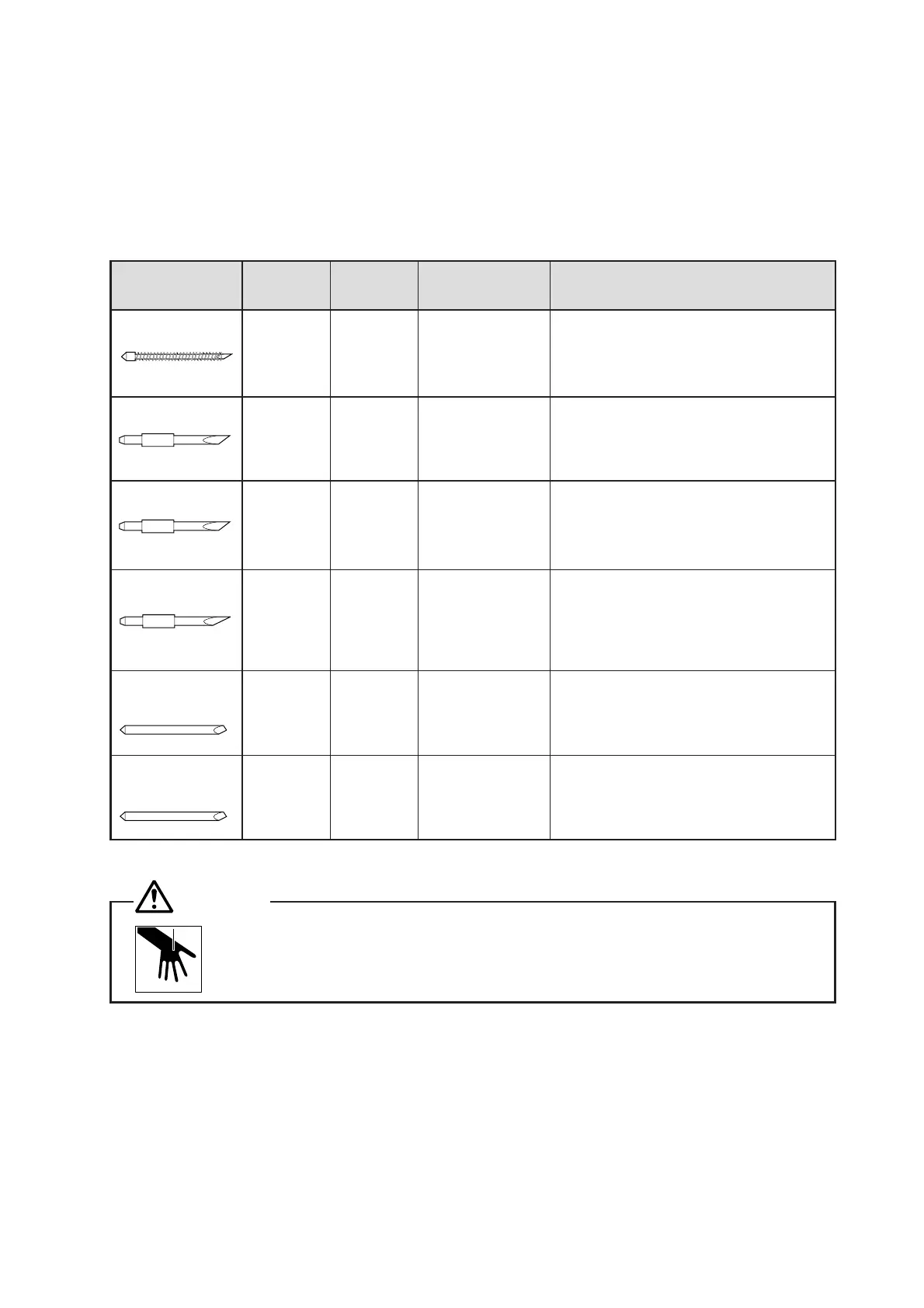

2.1 Types and Features of Cutter Blades
Becoming familiar with the types and features of cutter blades compatible with your plotter will enable you
to select the best combination of cutter blade and cutting medium for optimum cutting results.
Blade’s shape
and part no.
CB09UA
CB15U
CB15UA
CB15U-K30
CB15-10C
(Ceramic)
CB15-05S
(Sapphire)
Blade
diameter
φ 0.9 mm
φ 1.5 mm
φ 1.5 mm
φ 1.5 mm
φ 1.5 mm
φ 1.5 mm
Blade
offset
0.45
0.75
0.75
0.75
0.5
0.25
Compatible
plunger
PHP32-CB09N
PHP32-CB15N
PHP32-CB15N
PHP32-CB15N
PHP31-CB15
PHP31-CB15
Features
The standard blade for cutting color
adhesive-backed film, it is suitable for cutting
media of a thickness under 0.25 mm.
Maximum cut distance: 4000 m.
Capable of cutting thicker film than the
CB09UA blade, this blade is suitable for
cutting media of a thickness ranging from
0.25 to 0.5 mm.
Use this blade to cut high-luminosity
reflecting film.
Use this blade to cut rubber for sandblast-
ing. This blade has the sharpest angle
and a longer cutting edge. It is ideal for
cutting media of a thickness ranging from
0.5 to 1.5 mm.
This blade is made from the hardest
material but has a low resistance to im-
pact. It is suitable for cutting media with
a thickness under 0.05 mm.
For cutting strip film (for use as block
copy), this blade is ideal for cutting media
with a thickness under 0.05 mm.
CAUTION
When handling cutter blades, be careful to avoid cutting your fingers or other parts of
your body.
