Sync Reference Connections
Planning and Installation Manual 113

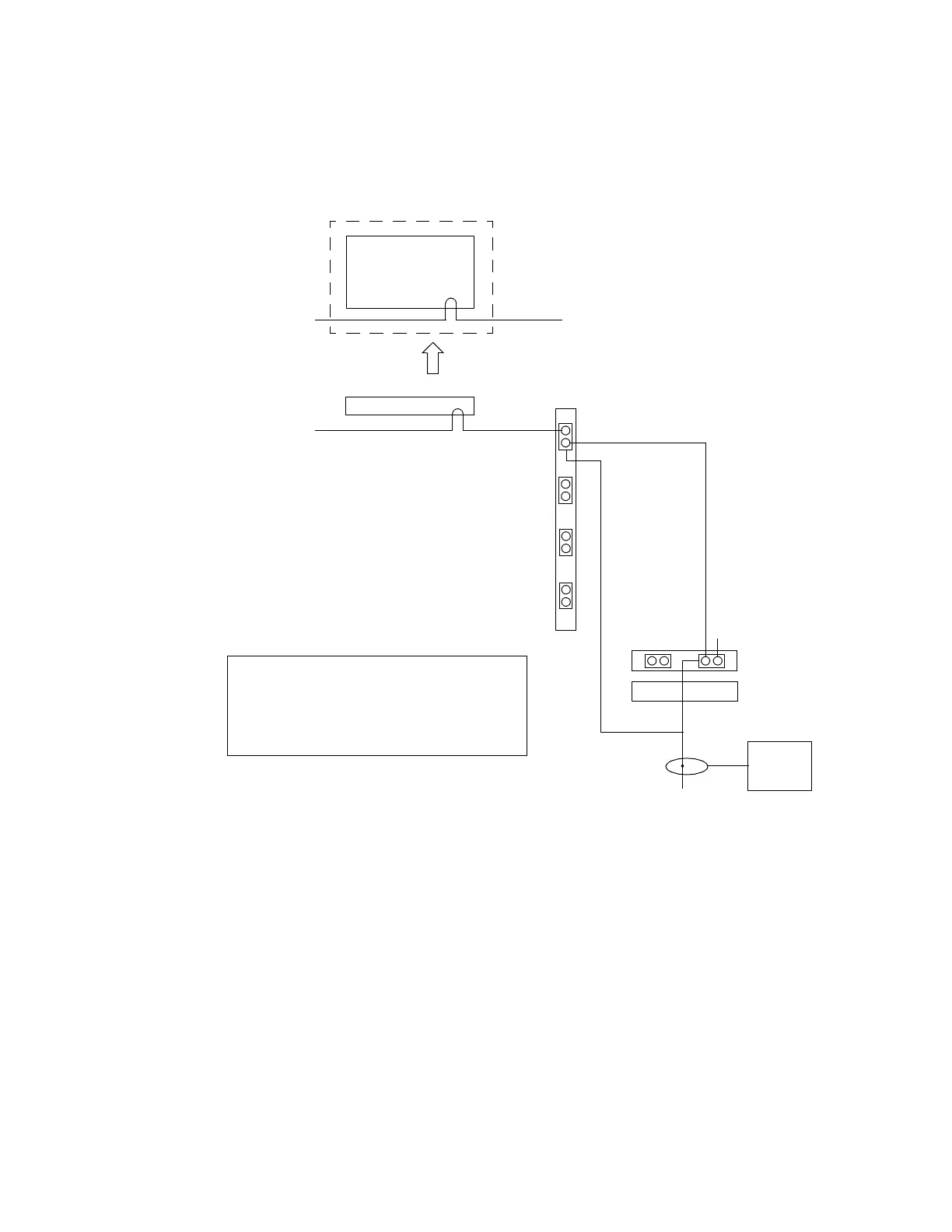

DV-33512 with Single Sync Reference and Single/Dual NR-33000
Figure 52.
If desired, an NR-33000 board can be installed in the associated power
supply chassis to provide Broadlinx capability. The board in the
Primary slot will feed Sync Line 1. If the board is removed, Sync Line 1
will automatically switch to the SR-33500.
Note A secondary NR-33000 can installed to provide Broadlinx redundancy. In
this case, the NR REF IN 3 and 4 connectors would not be used.
Jupiter
Sync 1
2 1 Primary NR-33000
Secondary NR-33000
1
2
3
4
SR-33500
All output
boards
Sync Line 1
SMS MCPU
Sync 1
or
Encore SCB
OR
Sync Redundant switch = Off
“C” switch = Off
See Note
Sync
1
T
Some DV-33512 power supply units
are not labelled correctly. See drawing
on page 102 for correct REF IN con-
nector labelling.
