GRASS VALLEY Trinix User Manual

Installation
112 Planning and Installation Manual

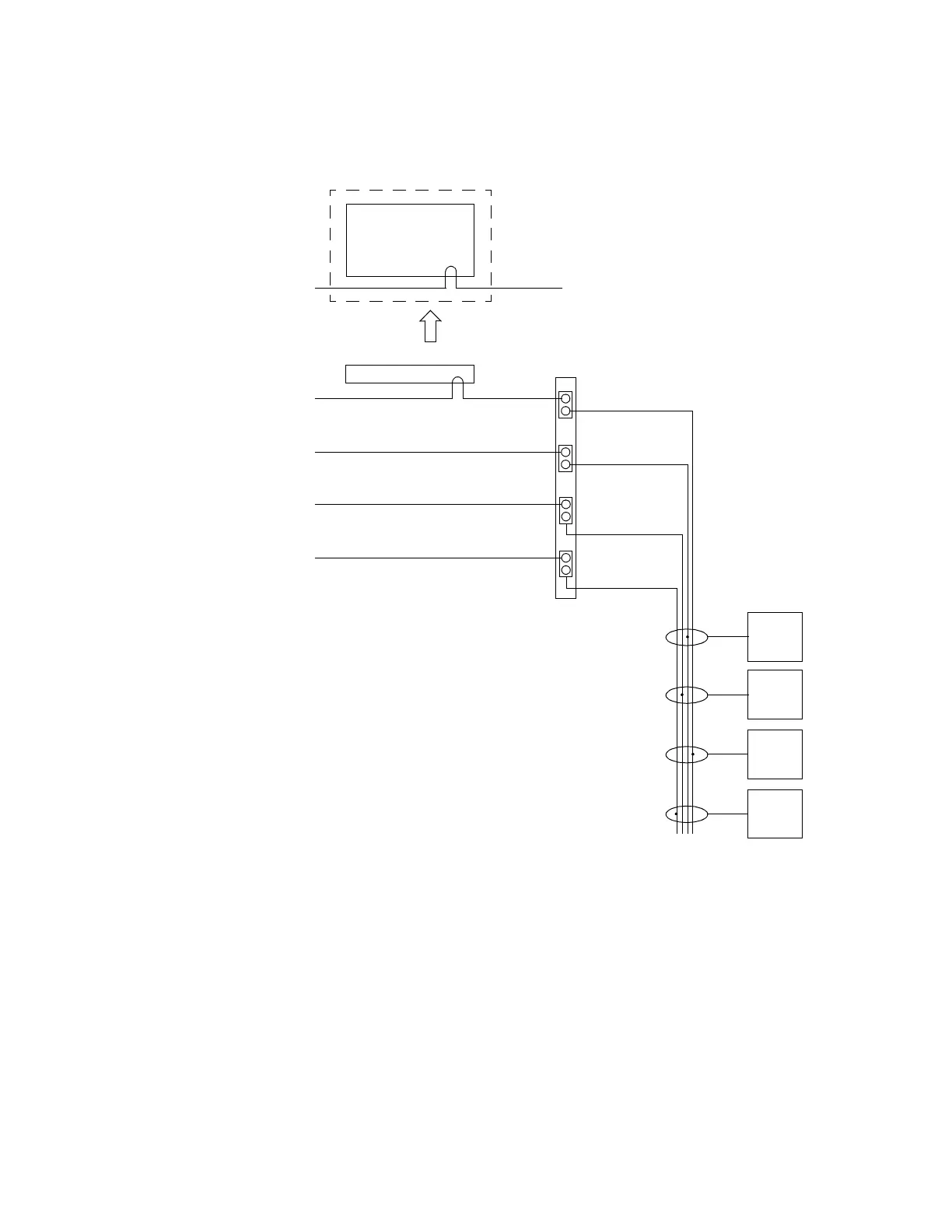

DV-33512 with Multi Sync References
Figure 51.
In DV-33512 units, which are normally supplied with an SR-33500
Sync/OPM board, up to four independent sync sources can be con-
nected and any of the four can be selected for each output board.
For a discussion concerning which of the four sync references should be
connected to the control system, see Sync Connection to Control System
on page 109.
The “C” switch mentioned here and on the following drawings in on
the Trinix rear panel.
Jupiter
Sync 1
1
2
3
4
SR-33500
Output
board(s)
on SL1
Output
board(s)
on SL2
Output
board(s)
on SL3
Output
board(s)
on SL4
Sync Lines
Sync 2
Sync 3
Sync 4
SMS MCPU
Sync 1
or
Encore SCB
OR
Sync Redundant switch = Off
“C” switch = Off
Sync
1
