GRASS VALLEY Trinix User Manual

NR/SR-33000 / SR-33500 V-Phasing
Planning and Installation Manual 119

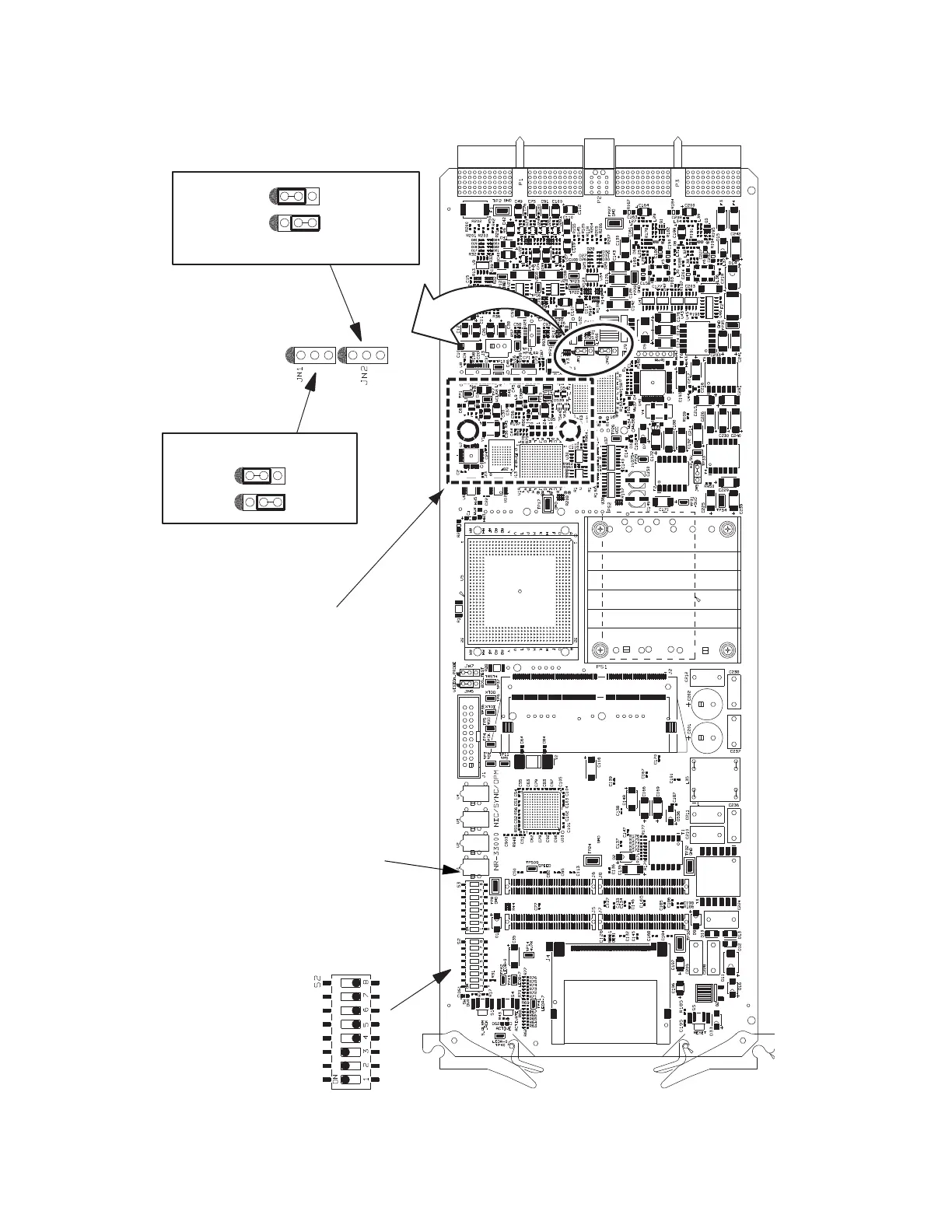

Figure 56. NR-33000 NIC/Sync/OPM board
S2 default settings
SMPTE Alarm Jumper JN1
Report
SALARM
Supress
SALARM
Power Input Select Jumper JN2
AC and dual
power systems
DC and single
power systems
Location of
Lithium-Ion battery
Switch S3. See page 117 and page 142.
For more information,
see Step 18 on page 94.
For more information,
see page 104.
