GRASS VALLEY Trinix - Page 121

NR/SR-33000 / SR-33500 V-Phasing
Planning and Installation Manual 121

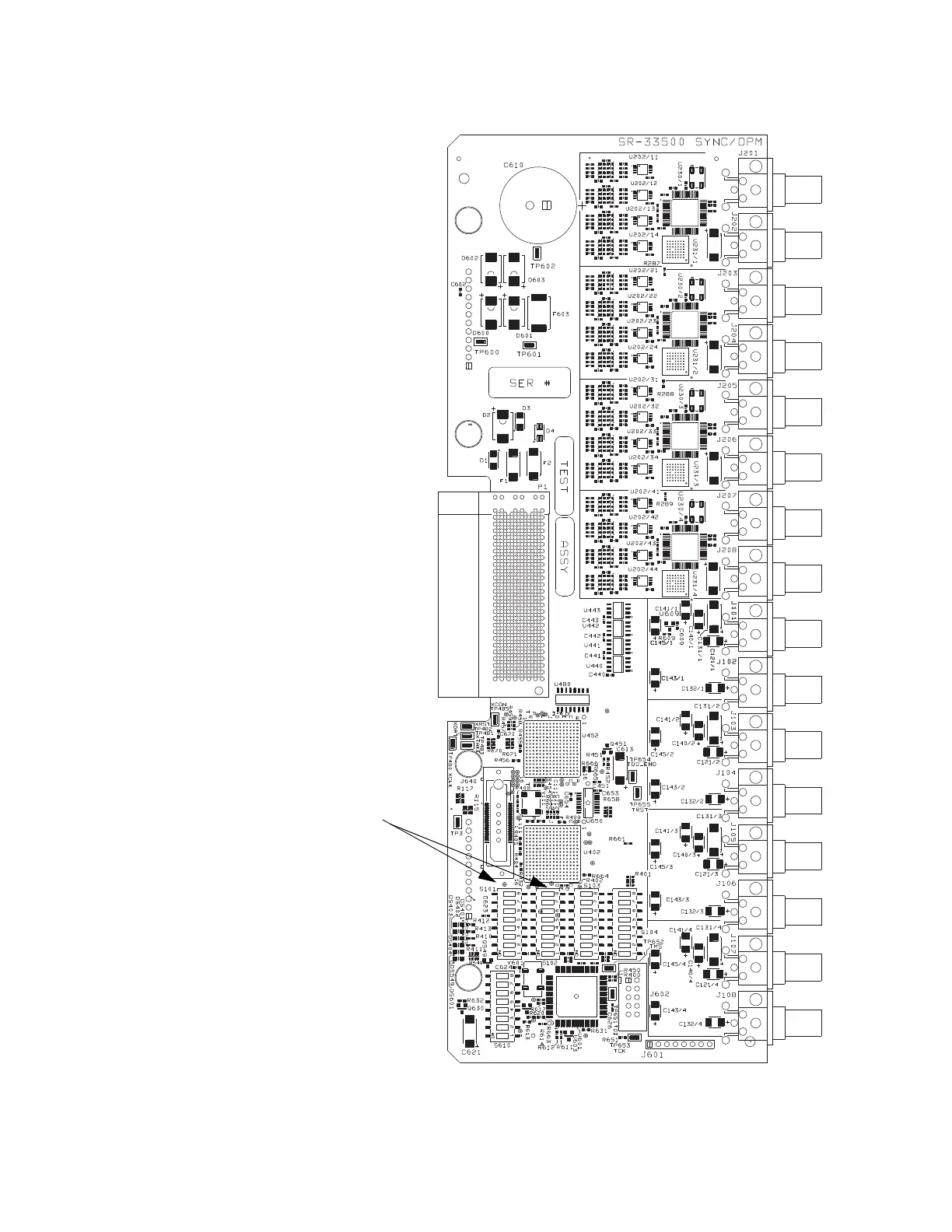

Figure 58. SR-33500 Sync/OPM reference card
Switches S101 and S102. See
page 117 and page 142.
DIP switches S103, S104, and S610 are
reserved
for future use. The default setting
for these switches is “Open.”
