GRASS VALLEY Trinix User Manual

Duplication and Expansion
Planning and Installation Manual 45

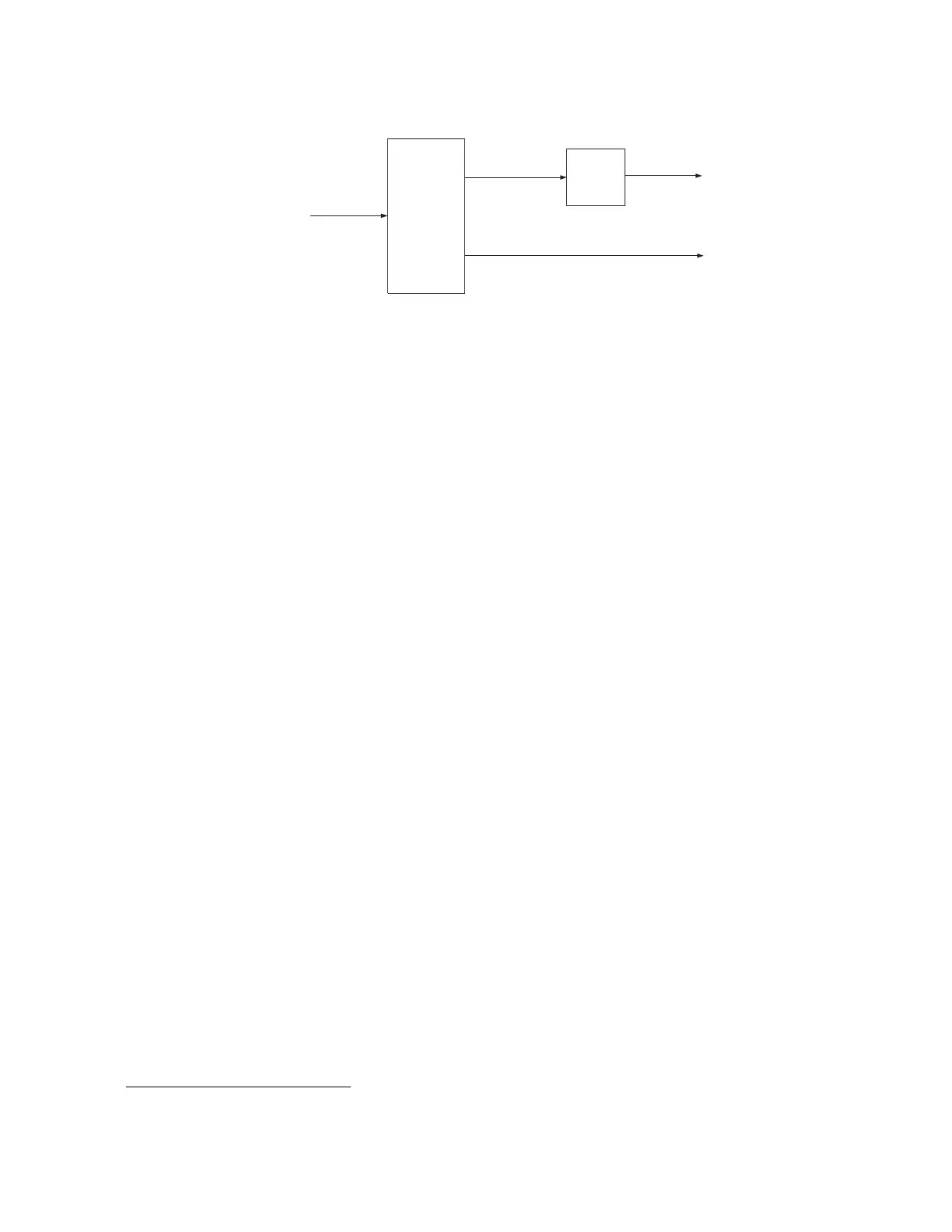

Figure 15.
In this application, 16 of the PE-33016 rear BNCs can be used for inputs
(outputs from the router) and all 32 of the front BNCs can be used for
outputs.
1
Up to 16 PE-33016 modules can be mounted in the MK-33000 Mounting
Kit, which is eight rack units high and approximately four inches deep.
Figure 16 shows a 128 input router with a single PE-33016 mounted in
an MK-33000; this provides 112 single outputs and 16 dual outputs.
Figure 17 shows a 256 input router with 256 dual outputs; this arrange-
ment requires 16 PE-33016 Port Expanders.
1.
All unused connectors must be terminated. 16 terminators are supplied with each PE-33016. See page 87.
1 - 16
1 - 256
1 - 16
Dual outputs
1
PE 33016
used as
splitter
17 - 256
Single outputs
Frame 0
Trinix
256 x 256
