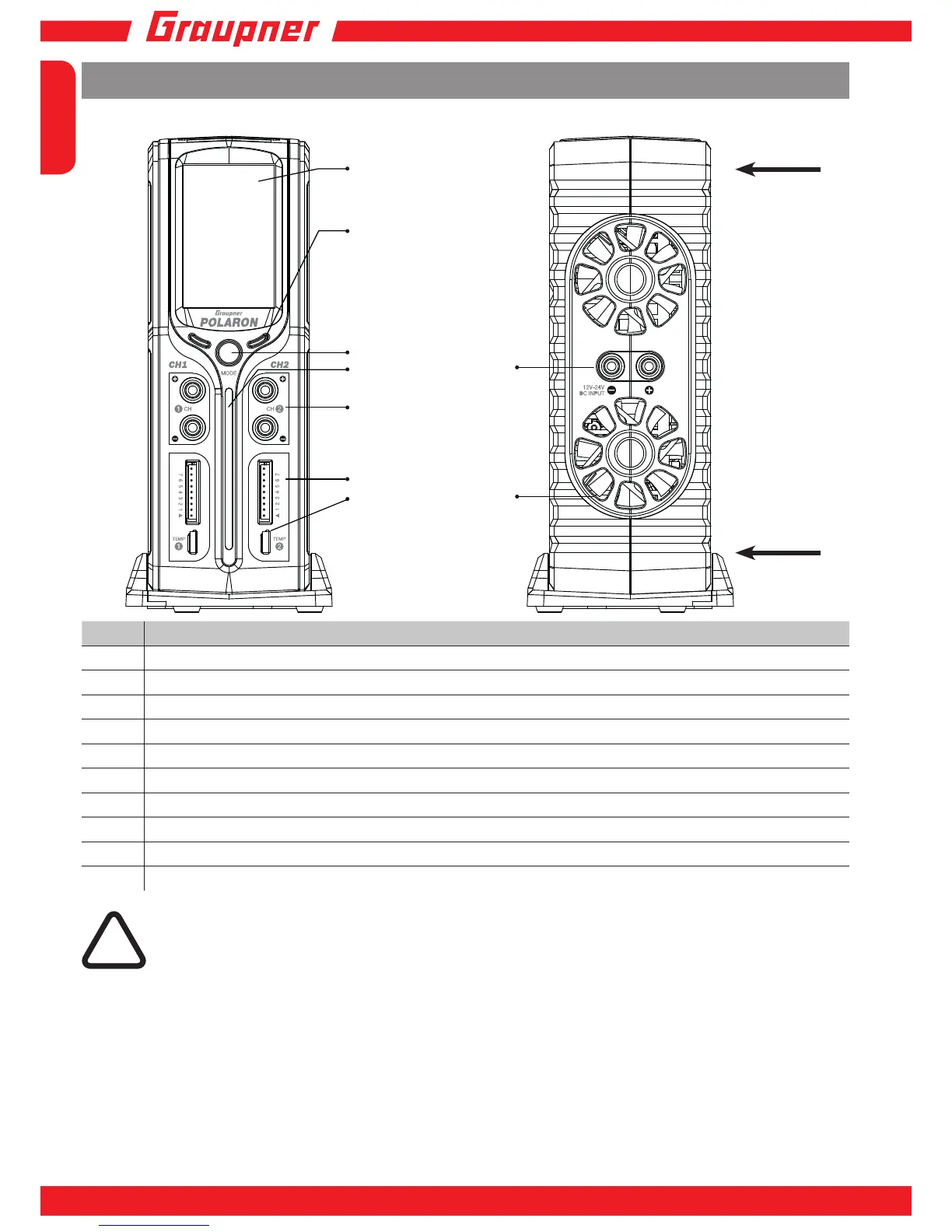

Operating elements
8
8
Back sightFront sight
3
4
5
1
2
7
6
Nr. Description
1 3.0 "Color TFT LCD Touch Screen
2 LED indicators for charge / discharge
3 Push button to switch between CH1 and CH2
4 Charge / discharge status bar
5 Battery port
6 Balancer port
7 Port for temperature sensor
8 XT90 connector to connect the power supply to the charger
9 Fans
10 Lateral docking jacks for separately sold AC adapter, Order Nr. S2012
ATTENTION!
• If the Graupner Polaron EX-1400 is connected through the XT90 connector, located
on the back, to an external power source, such as a car battery, there is current on the
other plugs, located on the side (red on the bottom front part and black on the upper back part).
Never connect these jacks one another!!!
• Disconnect the docked Polaron power supply 12 V DC 25 A, Order Nr. S2012, from the charger
Polaron EX-1400 before you connect the charger to any other external power source. Other-
wise, the power supply load on the charger docking connection plugs will be added unnecessa-
rily to the external power source.
• Never shortcircuit the two charge ports.
• Never connect two separate, but interconnected to the negative poles battery packs, to both
charge ports.
8
9
10
10
