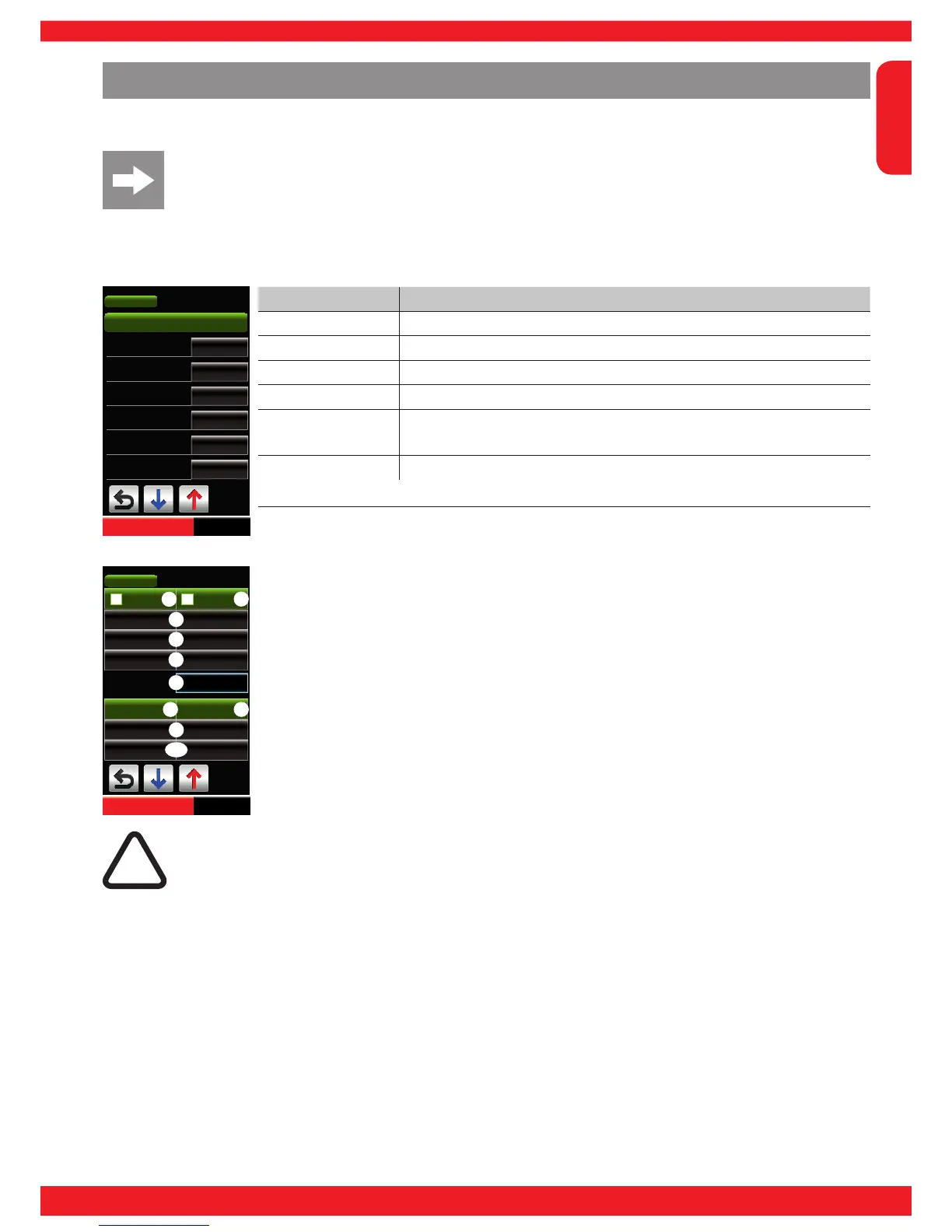

Menu SETTINGS
In this menu, you have the opportunity not only to update the date and time, but also to customize
the default settings of the charger.
Please note in this context that the parameter values of this rst display “USER SETUP”
act on a specic channel, and therefore CH1 and CH2 must be set separately, while the
parameters of the displays 2 to 4 act on specic devices. Therefore, these displays are
also available only on the menu “SETTINGS” of the charge channel CH1 and at the same place in
CH2 they are hidden.
1. Display “USER SETUP“
Parameter* Short description
Ready sound 10 different melodies adjustable
Sound time Melody period (on, off, 5 s, 15 s and 1 Minute)
Beep IN = Buzzer (light), OUT = Speaker (loud), OFF
LCD bright Display brightness (range 1 … 20)
Temperature
Unit
Unit of temperature (°C / °F)
Volume Volume of the tone(1 … 5)
* Displaysthefactorysettingvaluesshowninthegure.
2. Display “POWER SETTINGS“
PM 05:17:28
CH1 CH2
USER SET
300W1200W
Input1
Input2
Low Volts
24.0V
12.0V
50.0A
400W400W
Output1
Output2
50%
50%
25.0A
1
2
3
4
5
6
10
7
8
9
10.7V
1 Input 1 (actually active)
2 Input 2 (actually passive)
3 Input power per input resulting from the settings 4 and 5
4 Set the maximum input voltage (range 12 ... 28 V)
5 Set the maximum input current (range 5 ... 50 A)
6 Undervoltage warning threshold (range 10.7 ... 28 V)
7 Output 1 (CH1)
8 Output 2 (CH2)
9 Output power per output resulting from the maximum charge distribution 10
10 Distribution in%
