45
In Public Safety, the sub bands are defined as follows:
0: 33.420-46.5 MHz VHF Low Band
1: 151.820-170.150 MHz VHF High Band
2: 453.0375-467.7125 MHz UHF Band
3: 764.003125-766.996875 MHz 700 MHz Band
769.003125-775.998675 MHz
794.003125-796.996875 MHz
4: 806.0125-868.9875 MHz 800 MHz Band
Sub bands can be selected and deselected by using the
34
keys to scroll
through the sub bands, and pressing the SEL key to toggle the selected
sub band on or off. An asterisk character (*) indicates that the sub band is
enabled.
Be sure to provide a name for your SWPR object in the
Tag:
field. When
finished, press the
Save
softkey to store your SWPR search as a new
object.
Once your SWPR object is saved, you can use it while scanning, or launch
the Spectrum Sweeper object by itself by pressing the
SWPR
softkey after
navigating to the SWPR object in Manual Mode.

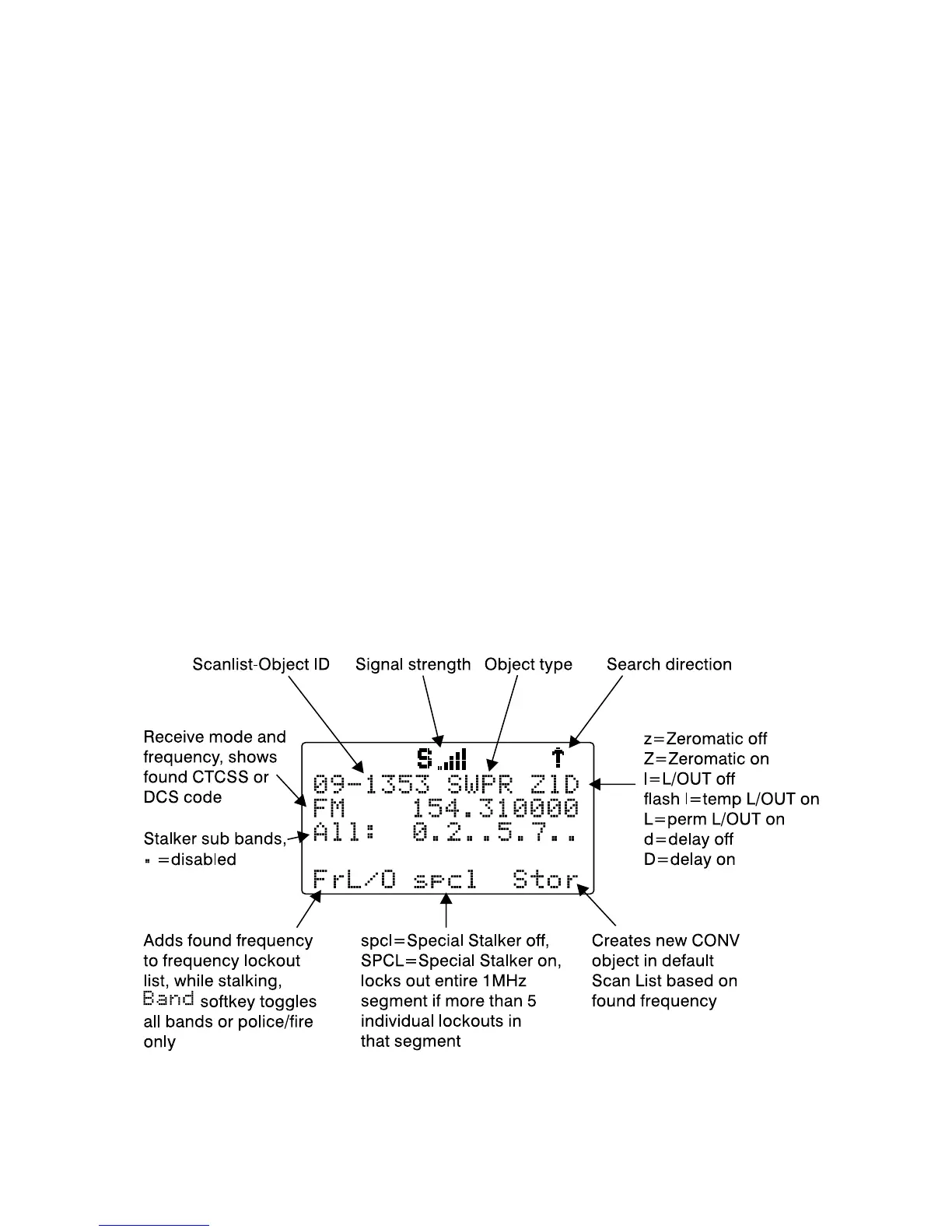

When the SWPR object stops on an active frequency, the display will
appear as follows:
