GREE GMV5 INDOOR UNIT SERVICE MANUAL
102
3.6 Installation of Compact 2-way Cassette Type unit

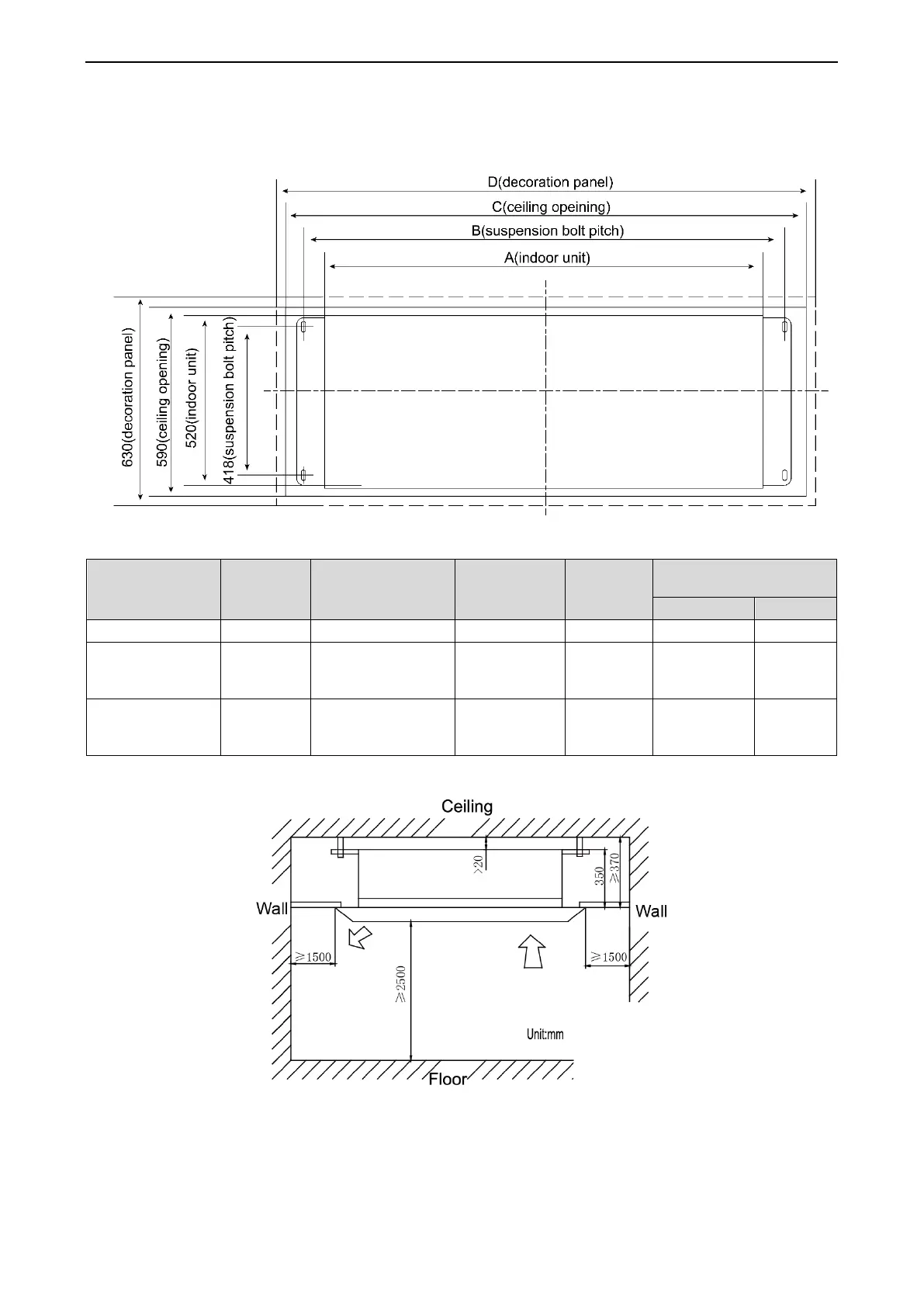

3.6.1 Outline and installation dimension
Unit: mm/inch
Model
Indoor
unit(A)
Suspension bolt
pitch(B)
Ceiling
opening(C)
Decoration
panel(D)
Outer diameter of
connection pipe(mm)
Liquid pipe
Gas pipe
GMV-ND28TS/A-T
1200
1252
1403
1443
6.35
9.52
GMV-ND36TS/A-T
GMV-ND45TS/A-T
GMV-ND50TS/A-T
1200
1252
1403
1443
6.35
12.7
GMV-ND56TS/A-T
GMV-ND63TS/A-T
GMV-ND71TS/A-T
1200
1252
1403
1443
9.52
15.9
3.6.2 Installation space
3.6.3 Installation notice
 The unit shall be installed by the professional personnel according to this installation instruction
to ensure proper use.
 Please contact the local Gree appointed service center before installation. Any
malfunctioncaused by the unit that is not installed by the Gree appointed service center would
