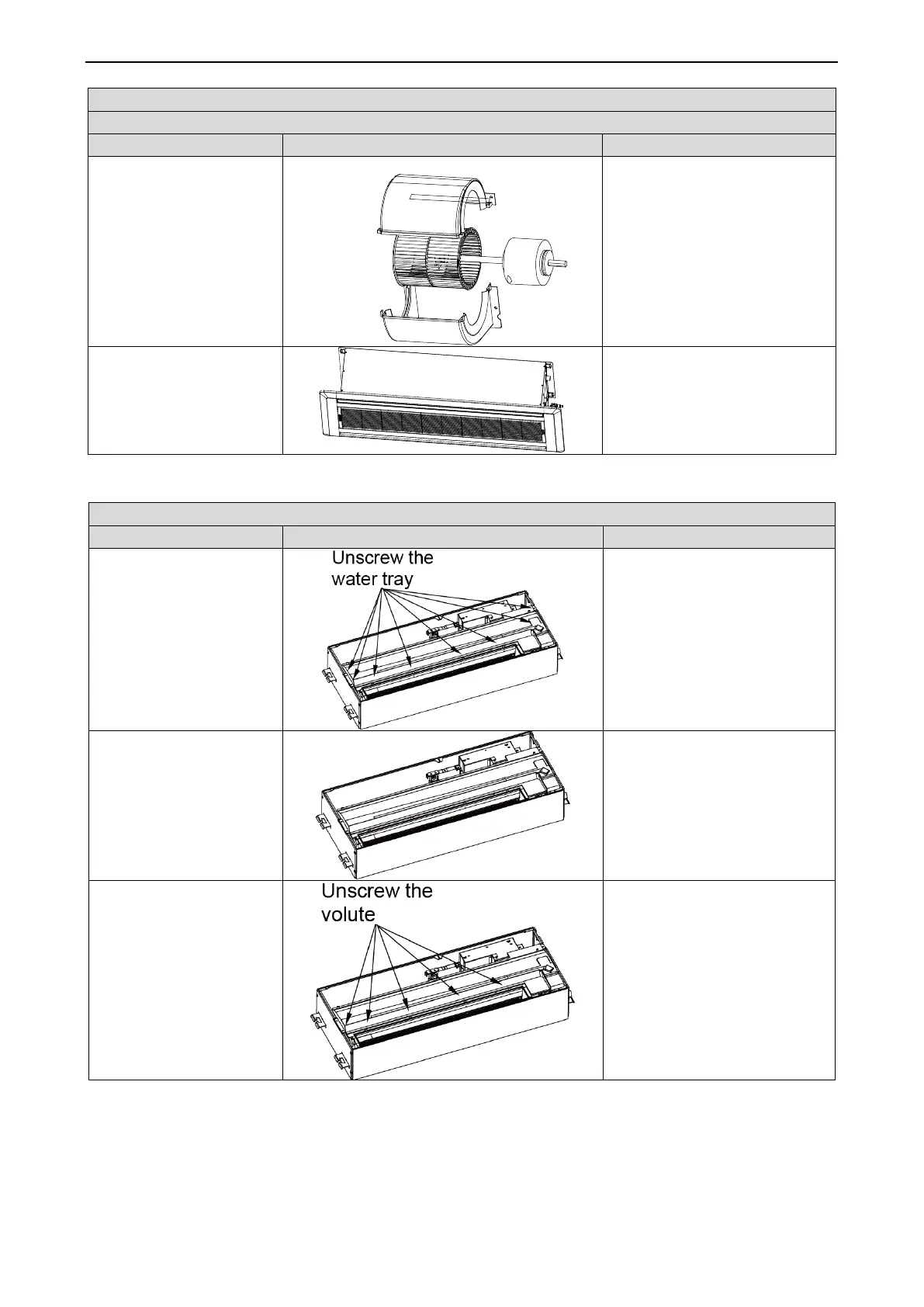

Removal of Fan Motor
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
4. Remove the centrifugal
fan
●Remove the volute casing
●Use a hexagon to unscrew the
centrifugal fan
，
remove it from
motor axle
5. Replace the motor with a
new one.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
4.7 1-way Cassette Type
Motor and fan
Step
Diagram
Operation Procedure
1. Unscrew the water tray.
●Use a screwdriver to unscrew the
water tray.
2. Remove the water tray.
●Remove the water tray.
3. Unscrew the volute
tongue.
●Use a screwdriver to unscrew the
volute tongue.
