GREE GMV5 INDOOR UNIT SERVICE MANUAL
19
Model
GMV-
ND22TD/A-T
GMV-
ND28TD/A-T
GMV-
ND36TD/A-T
GMV-
ND45TD/A-T
GMV-
ND50TD/A-T
GMV-
ND56TD/A-T
Main body
dimensions
W×D×H
mm
987×385×178
987×385×178
987×385×178
987×385×178
987×385×178
987×385×178
Panel
dimensions
W×D×H
mm
1200×460×55
1200×460×55
1200×460×55
1200×460×55
1200×460×55
1200×460×55
Net weight
Main body
kg
20
20
20
21
21
21
Panel
kg
4.2
4.2
4.2
4.2
4.2
4.2
Notes:
① Rated cooling capacity test conditions: indoor 27°C DB/19°C WB, outdoor 35°C DB; connection
pipe length: 5 m, without height drop between units.
② Rated heating capacity test conditions: indoor 20°C DB, outdoor 7°C DB/6 °C WB; connection
pipe length: 5 m, without height drop between units.

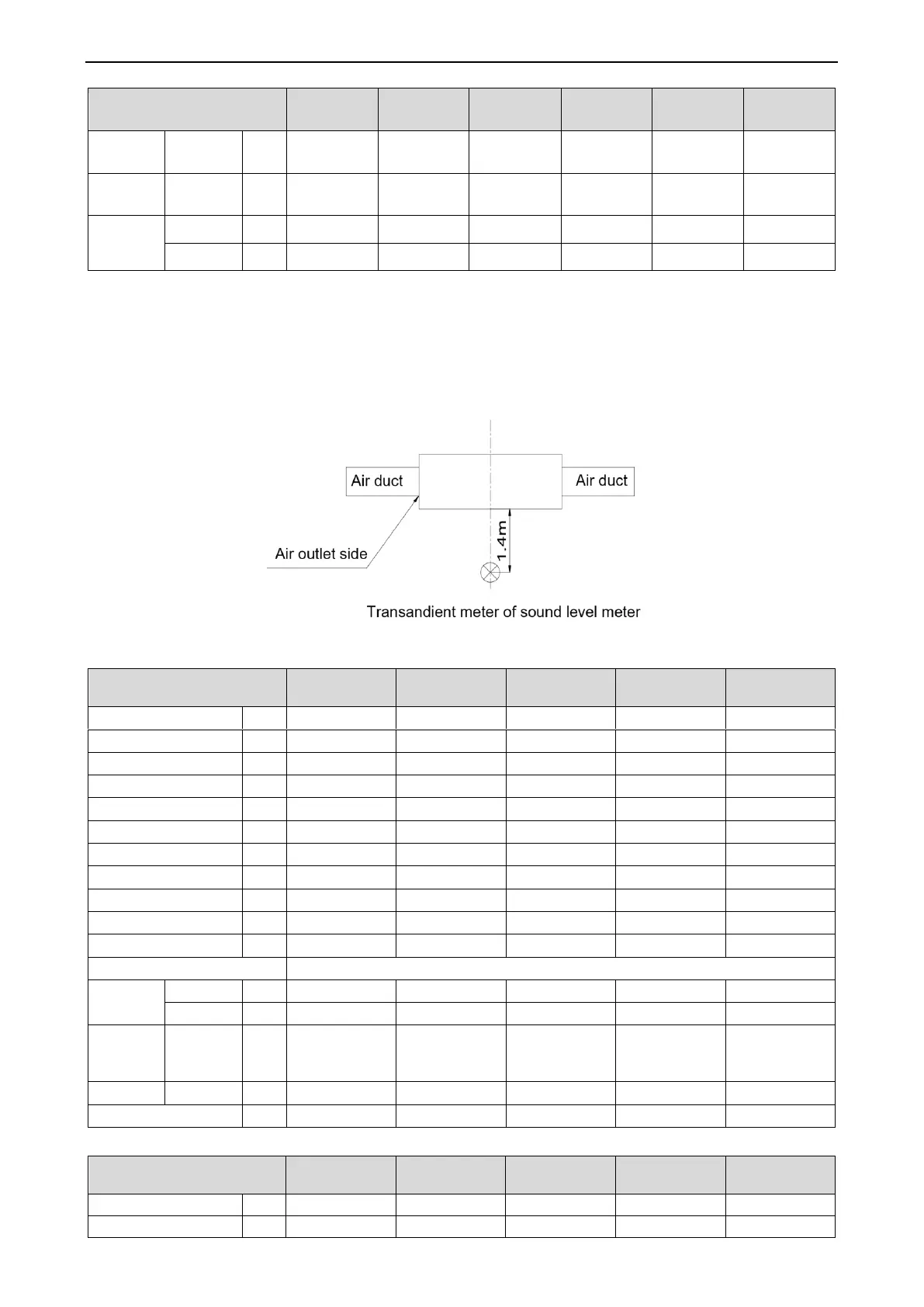

3.8 Floor Ceiling Type
Model
GMV-
ND28ZD/A-T
GMV
-ND36ZD/A-T
GMV
-ND50ZD/A-T
GMV
-ND63ZD/A-T
GMV
-ND71ZD/A-T
Horse Power
HP
1
1.5
2
3
3
Cooling capacity
kW
2.8
3.6
5.0
6.3
7.1
Heating capacity
kW
3.2
4.0
5.6
7.1
80
Air volume
m
3
/h
650
650
950
1400
1400
Cooling power input
W
40
40
50
75
75
Cooling current input
A
0.3
0.3
0.4
0.6
0.6
Heating power input
W
40
40
50
75
75
Heating current input
A
0.3
0.3
0.4
0.6
0.6
*Minimum line current
A
0.32
0.32
0.43
0.64
0.64
*Maximum fuse current
A
6
6
6
6
6
Sound pressure level
dB(A)
36
36
42
44
44
Power supply
220-240V 1 phase ~50Hz/208-230V 1 phase ~60Hz
Piping
interface
Liquid pipe
mm
Φ6.35
Φ6.35
Φ6.35
Φ9.52
Φ9.52
Gas pipe
mm
Φ9.52
Φ12.7
Φ12.7
Φ15.9
Φ15.9
Drain pipe
External
diameter
×thickness
mm
Φ17×1.75
Φ17×1.75
Φ17×1.75
Φ17×1.75
Φ17×1.75
Dimensions
W×D×H
mm
1220×700×225
1220×700×225
1220×700×225
1420×700×245
1420×700×245
Net weight
kg
40
40
40
50
50
Model
GMV-
ND90ZD/A-T
GMV-
ND112ZD/A-T
GMV-
ND125ZD/A-T
GMV-
ND140ZD/A-T
GMV-
ND160ZD/A-T
Horse Power
HP
4
4
5
5
6
Cooling capacity
kW
9.0
11.2
12.5
14.0
16.0
