5.2 High Static Pressure Duct Type

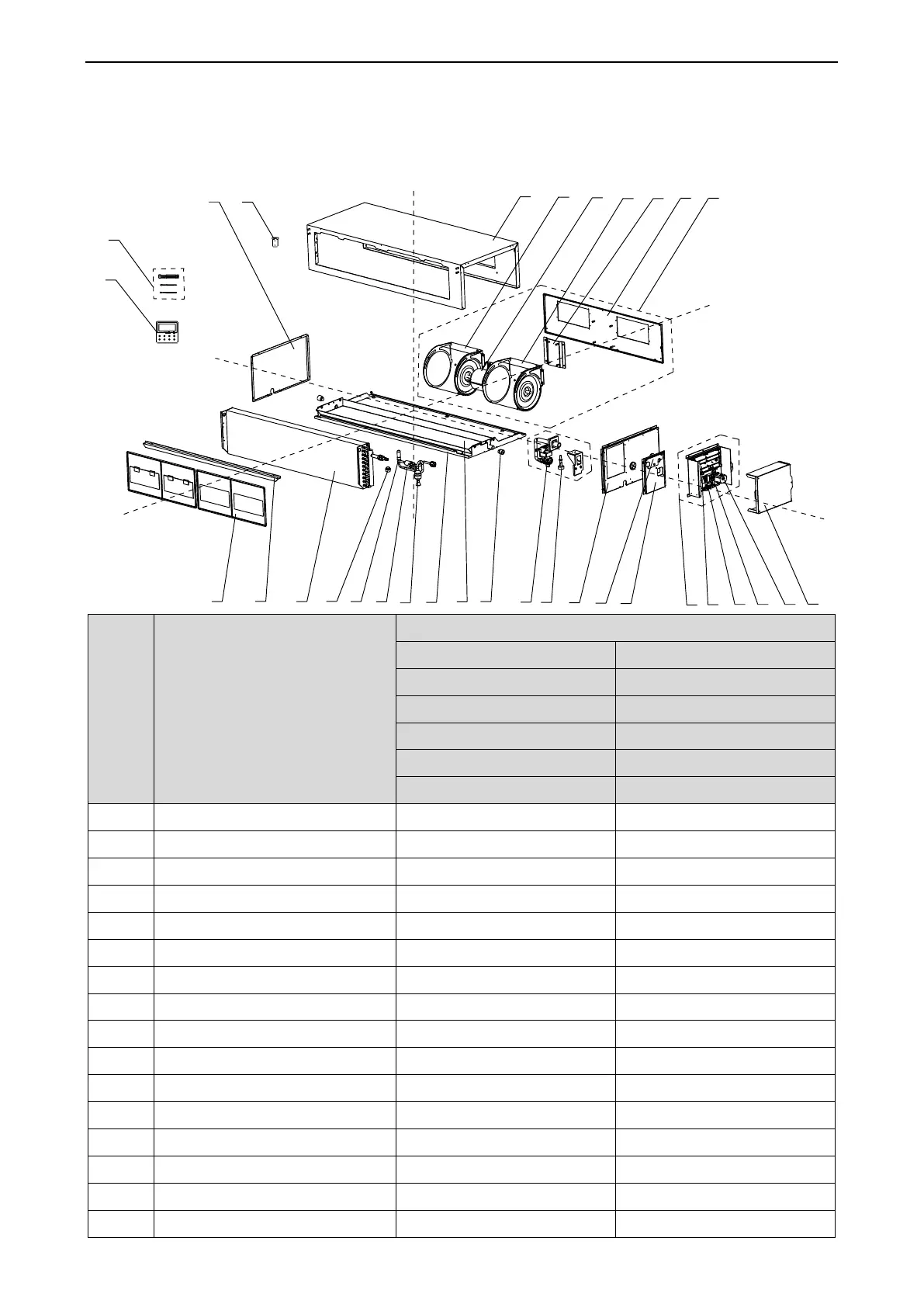

Exploded View of GMV-ND56PHS/A-T, GMV-ND63PHS/A-T, GMV-ND71PHS/A-T, GMV-
ND80PHS/A-T:
8
16
17
11
9
21
201918
7
6
53
2
1
12
13
14
15
25 24
23 22
27
26
28
30
29
4
31
10
2
1
1
2
6
5
3
4
1
2
32
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND56PHS/A-T
CM800N3690
GMV-ND63PHS/A-T
CM800N3700
GMV-ND71PHS/A-T
CM800N3540
GMV-ND80PHS/A-T
CM800N3710
Part code
Quantity
1
Filter Sub-Assy
11125303
2
2
Guide groove of the filter screen
02285301
1
3
Evaporator Assy
01024100090
1
4
Electric Expand Valve Fitting
4304413215
1
5
Electronic Expansion Valve
07334466
1
6
Strainer
0741410000601
1
7
Filter
07415210
1
8
Lower Cover Plate Sub-Assy
01265304
1
9
Water Tray Assy
01285317
1
10
Choke Plug of Drain Pipe
76712455
2
11
Water Pump
4313822001
1
12
Water Level Switch
450127011
1
13
Right Side Plate
01314100063
1
14
Seal plate
01494100008
1
15
Cover Plate
01264100036
1
16
Electric Box Assy
01394100255
1
