GREE GMV5 INDOOR UNIT SERVICE MANUAL
249
5.13 Wall Mounted type Indoor Unit

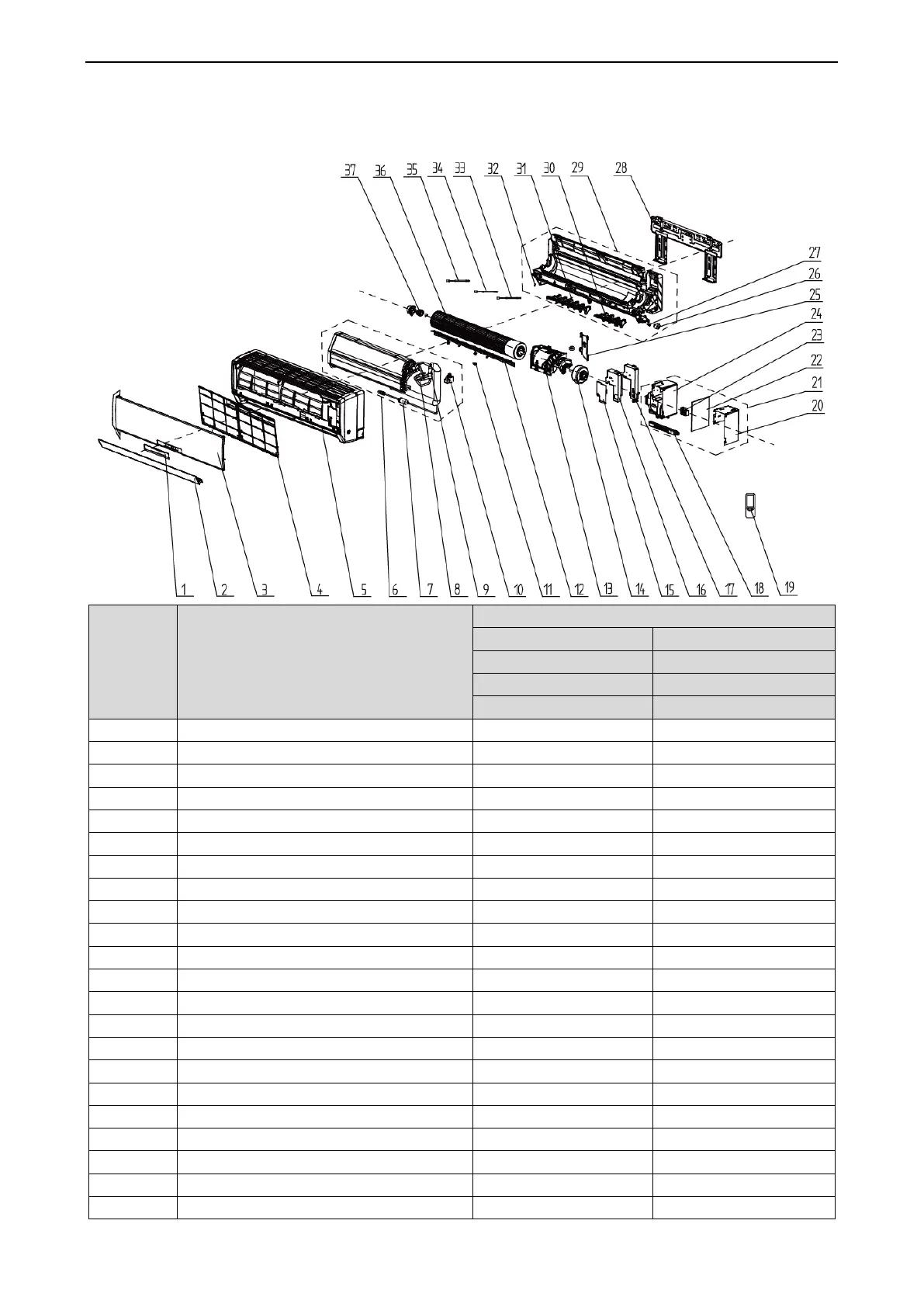

Exploded View of GMV-N22G/A3A-K, GMV-N28G/A3A-K
No.
Name of part
For the following unit
Unit
Product Code
GMV-N22G/A3A-K
CM100N1350
GMV-N28G/A3A-K
CM100N1340
Part code
Quantity
1
Receiver Window
22432230
1
2
Guide Louver
10512157
1
3
Front Panel B1
20012122S
1
4
Filter Sub-Assy
1112220403
1
5
Front Case Sub-assy
2001213931
1
6
Evaporator Assy
1024100097
2
7
Strainer
07414100006
4
8
Strainer
07213050
4
9
Electronic Expansion Valve
07334463
4
10
Electric Expand Valve Fitting
4304413217
2
11
Axile Bush
10542036
1
12
Rear Grill
01472013
1
13
Motor Press Plate
26904100117
1
14
Fan Motor
1501208905
1
15
Electric Box Cover2
2012207504
1
16
Shield Cover of Electric Box Sub-assy
01592073
1
17
Electric Box Cover1
2224213502
1
18
Display Board
30565007
2
19
Remote Controller
30510589
1
20
Lower Shield Sub-assy of Electric Box
01592072
2
21
Electric Box Assy
01394100451
1
22
Main Board
30226000061
2
