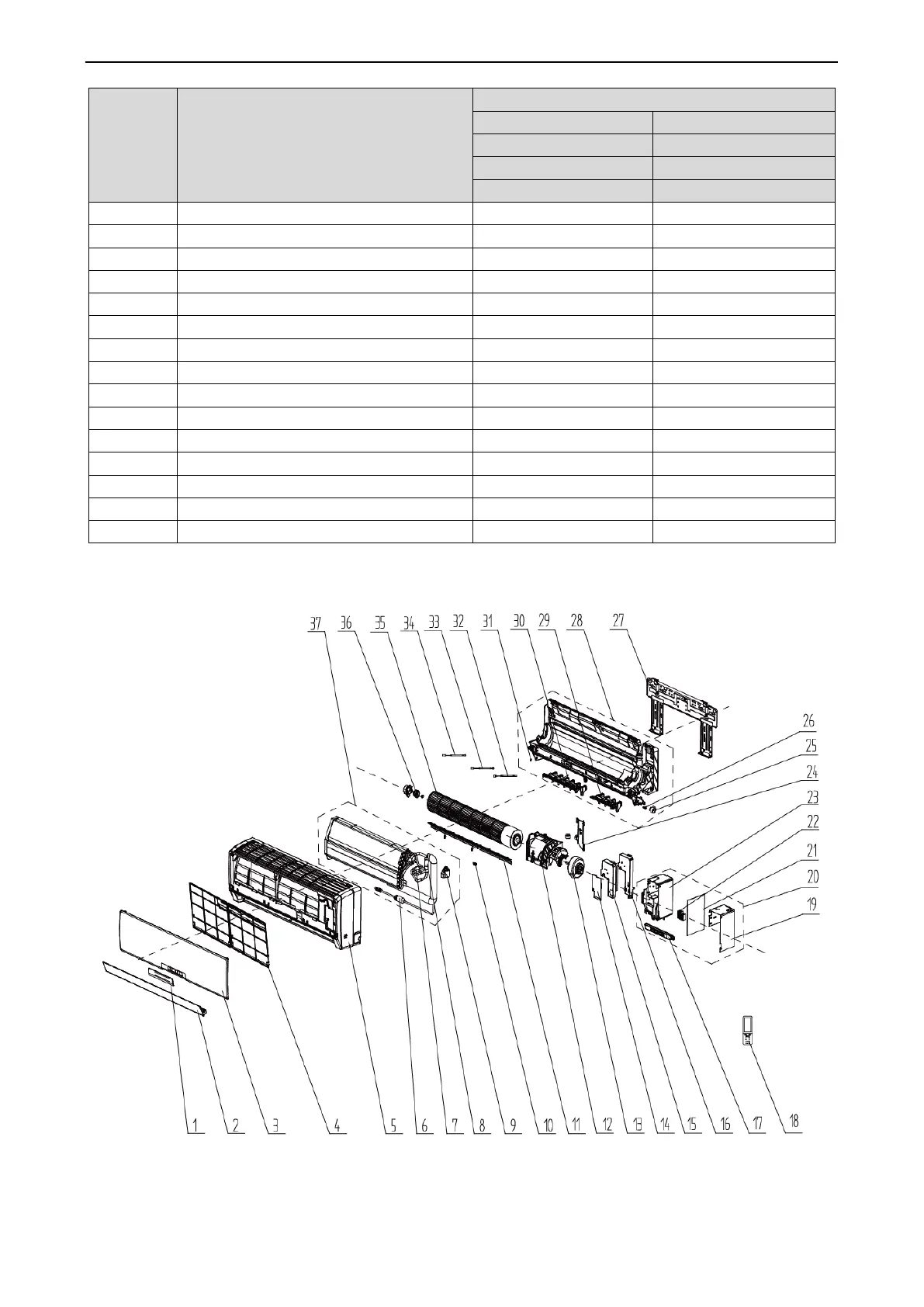

GREE GMV5 INDOOR UNIT SERVICE MANUAL
250
No.
Name of part
For the following unit
Unit
Product Code
GMV-N22G/A3A-K
CM100N1350
GMV-N28G/A3A-K
CM100N1340
Part code
Quantity
23
Terminal Board
42010268
2
24
Electric Box
2011216702
2
25
Connecting pipe clamp
26112164
1
26
Stepping Motor
1521212901
2
27
Crank
10582070
2
28
Wall Mounting Frame
01252021
1
29
Rear Case Sub-Assy
2220294712
2
30
Air Louver 1
10512164
2
31
Air Louver 2
10512165
2
32
Left Axile Bush
10512037
2
33
Temperature Sensor
390000454
1
34
Temperature Sensor
39000076G
1
35
Temperature Sensor
390002072G
1
36
Cross Flow Fan
10454101
1
37
O-Gasket of Cross Fan Bearing
76512203
3
Above data is subject to change without notice, pls reference the SP in global service website.
GMV-N36G/A3A-K, GMV-N45G/A3A-K, GMV-N50G/A3A-K
