GREE GMV5 INDOOR UNIT SERVICE MANUAL
92
3.2 Installation of High Static Pressure Duct Type unit

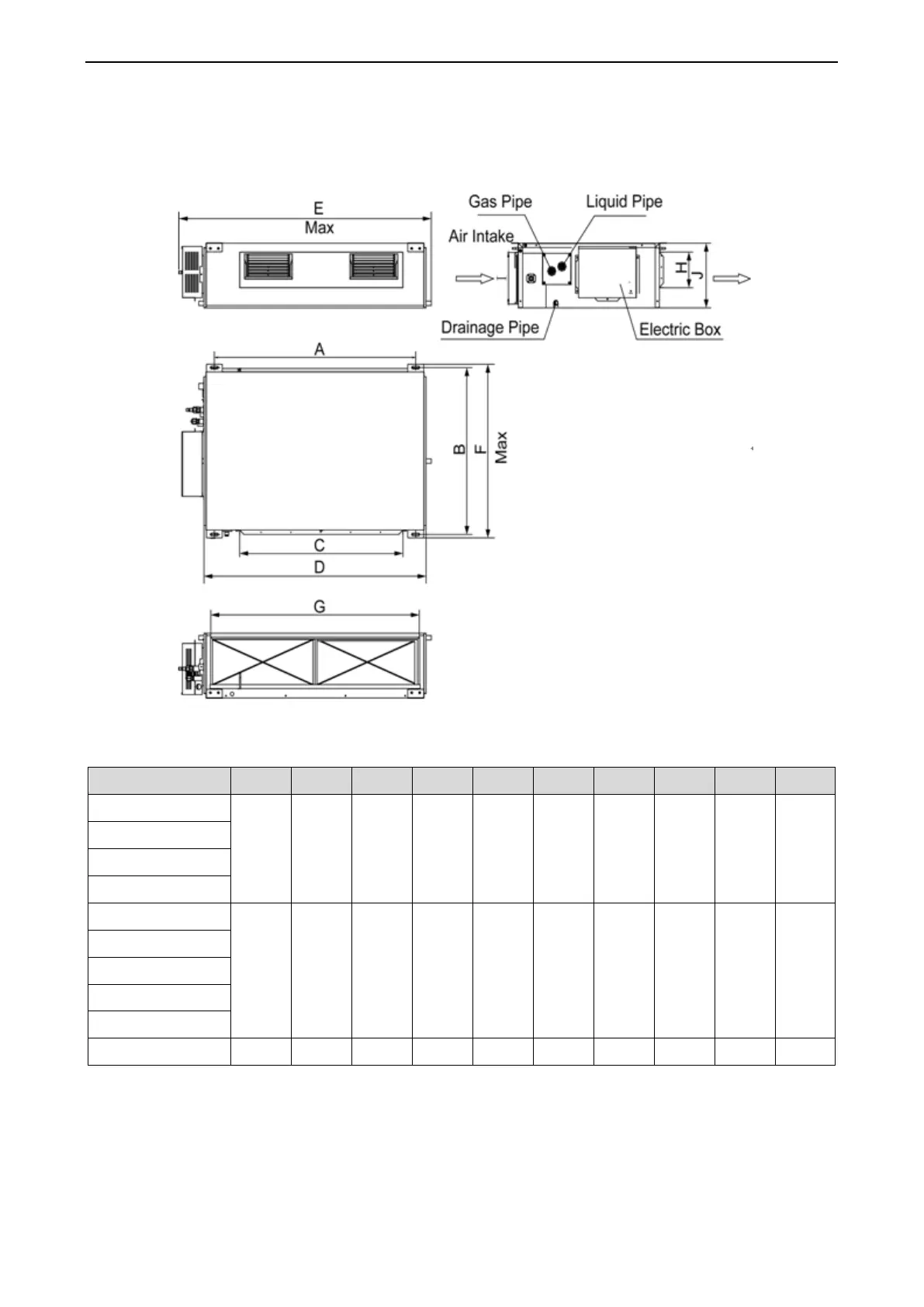

3.2.1 Outline and installation dimension
Model:
GMV-ND56PHS/A-T~ GMV-ND160PHS/A-T
Below are dimensions of A, B, C, etc. for different models:
Unit: mm/inch
Model
A
B
C
D
E
F
G
H
I
J
GMV-ND56PHS/A-T
1101
(43-3/8)
517
(20-3/8)
820
(32-1/4)
1159
(45-5/8)
1271
(50)
558
(22)
1002
(39-1/2)
160
(6-1/4)
235
(9-1/4)
268
(10-1/2)
GMV-ND63PHS/A-T
GMV-ND71PHS/A-T
GMV-ND80PHS/A-T
GMV-ND90PHS/A-T
1011
(39-3/4)
748
(29-1/2)
820
(32-1/4)
1115
(43-7/8)
1229
(48-3/8)
775
(30-1/2)
979
(38-1/2)
160
(6-1/4)
231
(9-1/8)
290
(11-3/8)
GMV-ND100PHS/A-T
GMV-ND112PHS/A-T
GMV-ND125PHS/A-T
GMV-ND140PHS/A-T
GMV-ND160PHS/A-T
1177
646
852
1150
1340
750
953
190
316
350
