GREE GMV5 INDOOR UNIT SERVICE MANUAL
211
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND160T/A-T
CM500N0660
Part code
Quantity
15
Body Installing Plate
01329420
1
16
Tube Exit Plate Assy
000067000002
1
17
Water Pump Assy
15404100052
1
18
Water Pump
4313822001
1
19
Drainage Hose(Water Pump)
05339401
1
20
Liquid Level Switch
4501801203
1
21
Electric Expand Valve Fitting
4304413219
1
22
Drain Hose Sub-Assy
05339400001
1
23
Sensor Sub-Assy
39008000012G
1
24
Remote Controller
30510589
1
25
Corrugated Pipe
0502511203
1
Above data is subject to change without notice, pls refer the SP in global service website.
5.5 Compact 4-way Cassette Type

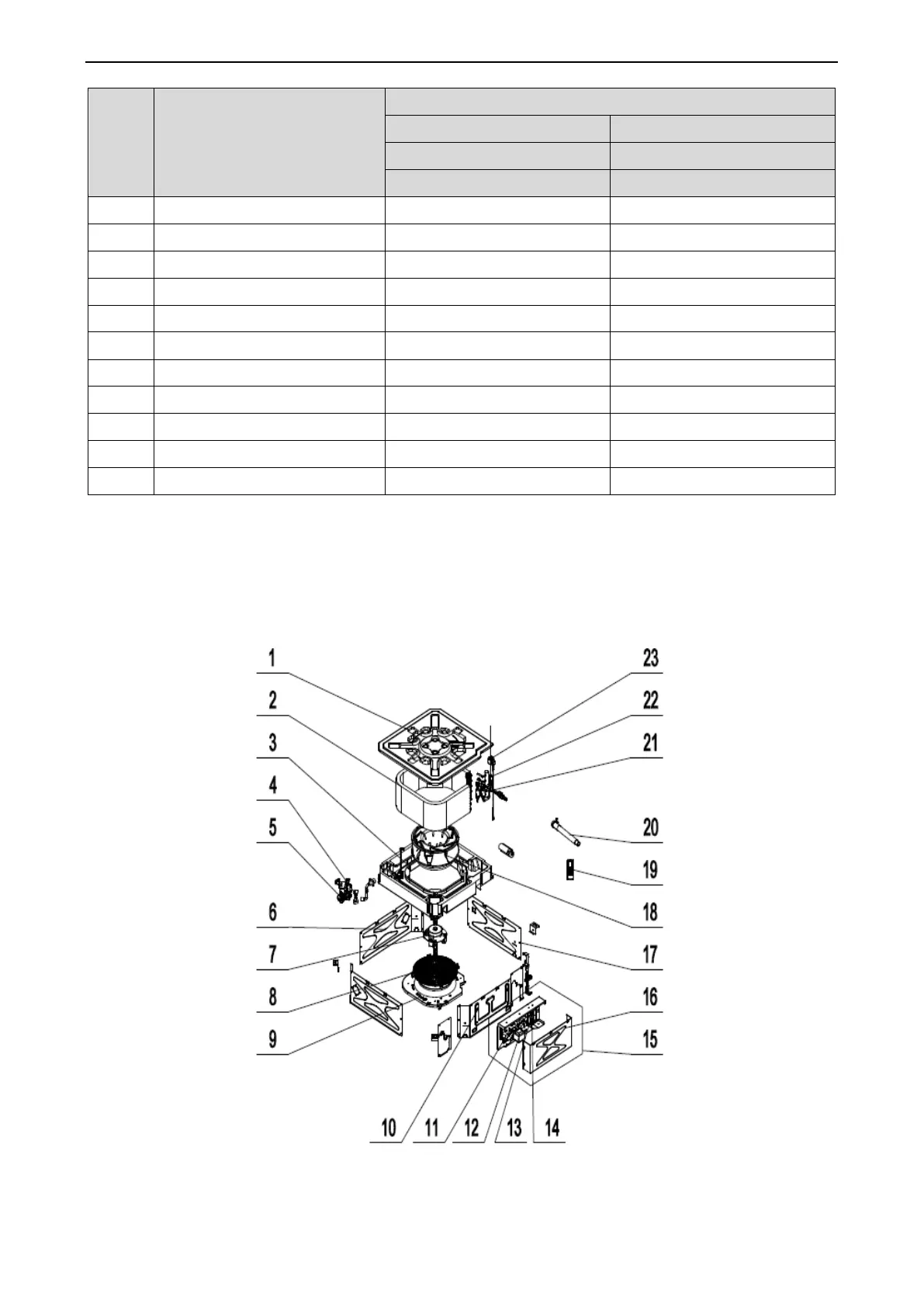

Exploded View of GMV-ND22T/B-T, GMV-ND28T/B-T, GMV-ND36T/B-T, GMV-ND45T/B-T, GMV-
ND50T/B-T, GMV-ND56T/B-T
