Gree GMV-ND100L/A-T

GREE GMV5 INDOOR UNIT SERVICE MANUAL
190

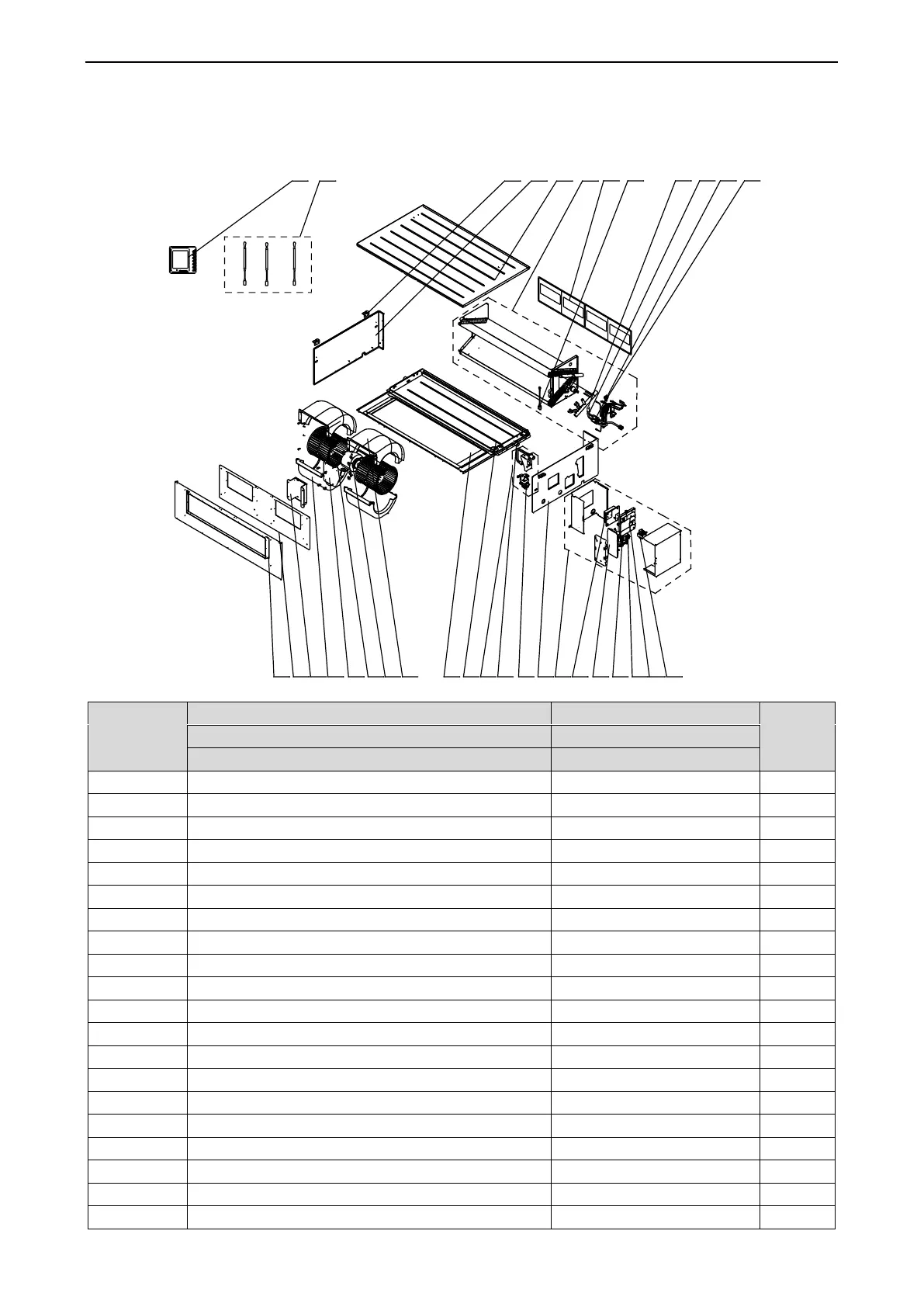

Exploded View of GMV-ND160PHS/A-T:
1 2 3 4 5 6 7 8 9
10
11 12
13
14
15
16 17
18
19
20
21
222324252627
282930313233
NO.
Model
GMV-ND160PHS/A-T
Qty.
Product Code
CM810N0250
Part Name
Part Code
1
Front Side Plate Sub-Assy
01315200091
1
2
Blower Mounting Plate Sub-Assy
01325200057
1
3
Support plate sub-assy (motor)
0189520001401
1
4
Propeller Housing(Lower)
26905200011
2
5
Motor Support
01805200228
1
6
Centrifugal Fan
10425200002
2
7
Brushless DC Motor
15709400008
1
8
Propeller Housing(Upper)
26905200010
2
9
Bottom Cover Plate Assy
01265200045
1
10
Water Tray Assy
01285200025
1
11
Water Pump Assy
15405200081
1
12
Choke Plug of Drain Pipe
76712455
2
13
Water Pump
4313822001
1
14
Right Side Plate Assy
01314100108
1
15
Electric Box Sub-Assy
01395200479
1
16
Radiator
49018000068
1
17
Main Board
30226000064
1
18
Terminal Board
42010259
1
19
Terminal Board
4201800002601
1
20
Main Board
30221000018
1
