GREE GMV5 INDOOR UNIT SERVICE MANUAL
228

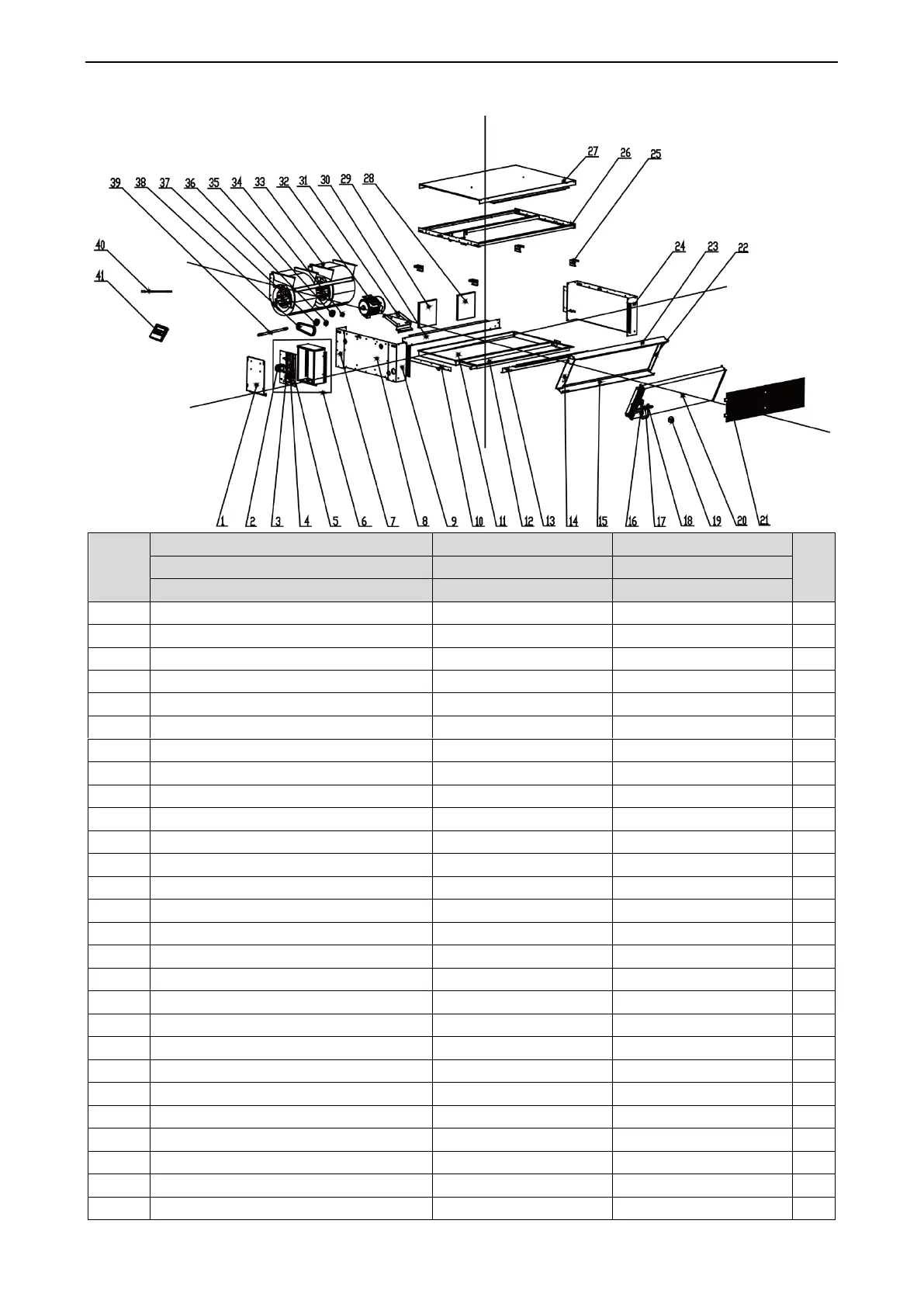

Exploded View of GMV-NX280P/A(X2.5)-M, GMV-NX280P/A(X3.0)-M:
NO.
Model
GMV-NX280P/A(X2.5)-M
GMV-NX280P/A(X3.0)-M
Qty.
Product Code
CM800N3630
CM800N3630
Part Name
Part Code
Part Code
1
Electric Box Cover
014191411
014191411
1
2
AC Contactor
44010232
44010232
1
3
Terminal Board
420100071
420100071
1
4
Terminal Board
4201800002601
4201800002601
1
5
Main Board
30226000052
30226000052
1
6
Electric Box Assy
01394100202
01394100202
1
7
Right Side Plate Sub-Assy
01309105
01309105
1
8
Access panel sub-assy
01544126
01544126
1
9
Right Side Plate Sub-Assy
01314209
01314209
1
10
Side beam assy
01874178
01874178
1
11
Chassis Sub-assy
01194136
01194136
1
12
Water Collecting Tray Assy
01284142
01284142
1
13
Front Frame sub- assy
01874184
01874184
1
14
Air Guard
01354112
01354112
1
15
Base plate (evaporator)
01079114
01079114
1
16
Filter
07415210
07415210
1
17
Strainer
0741410000601
0741410000601
1
18
Electronic Expansion Valve
07334390
07334390
1
19
Electric Expand Valve Fitting
4304413219
4304413219
1
20
Evaporator Assy
1024100092
1024100092
1
21
Filter Sub-Assy
11129070
11129070
2
22
Air Guard
01354111
01354111
1
23
Cover Plate Sub-Assy of Evaporator
01094109
01094109
1
24
Left Side Plate Assy
01314208
01314208
1
25
Hook
02205302
02205302
4
26
suspending rack
01729165
01729165
1
27
Top Cover Assy
01259106
01259106
1
