-16-
Model G0561 (Mfd. Since 01/08)
A shipping bracket has been installed on the
bandsaw to protect the alignment of the bow dur-
ing shipment. After removal, store the bracket in
a safe place until you need to move or ship the
bandsaw in the future.
To remove shipping bracket:
1. Use a #2 Phillips head screwdriver to remove
top screw and flat washer.
2. Use a 14mm wrench to loosen bottom
hex nut and remove shipping bracket
shown in Figure 9.
Shipping Bracket

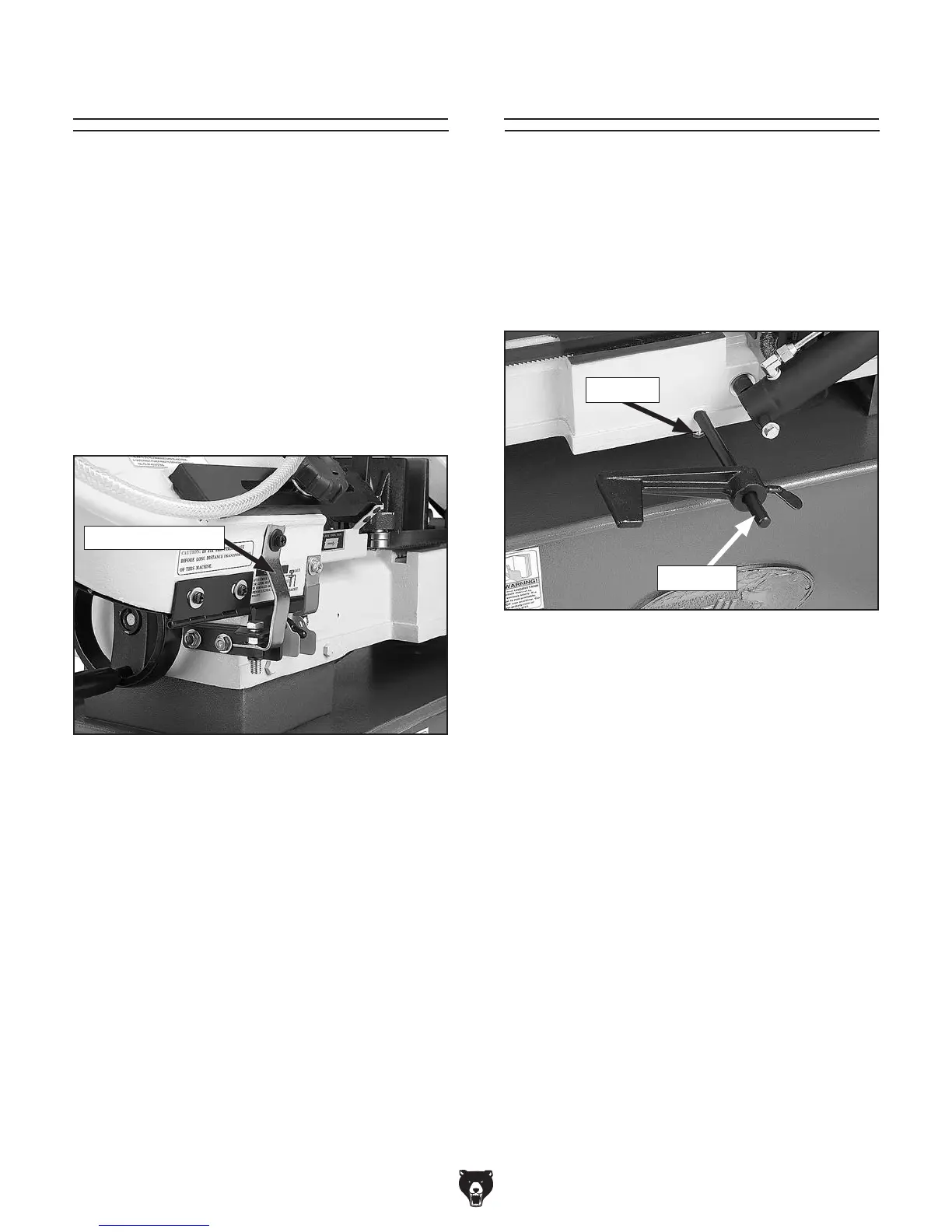

Figure 9. Location of shipping bracket.
Shipping Bracket
Work Stop
Components and Hardware Needed: Qty
Work Stop ...........................................................1
Work Stop Rod ...................................................1
To install work stop:
1. Insert work stop rod through hole in base and
lock in place with hex bolt (see Figure 10).
2. Slide work stop over rod.
3. Measuring from outside of blade, tighten
thumbscrew to set work stop at desired
length.
Figure 10. Work stop installed.
Stop Rod
Hex Bolt
