The wheels may be installed to make it easier to
move the G0561 bandsaw.
Components and Hardware Needed: Qty
Wheels............................................................... 2
Axle ................................................................... 1
Cotter Pins 3 x 30mm........................................ 2
Flat Washers
5
⁄8" ................................................ 4
Leveling Feet with Hex Nuts
............................. 2

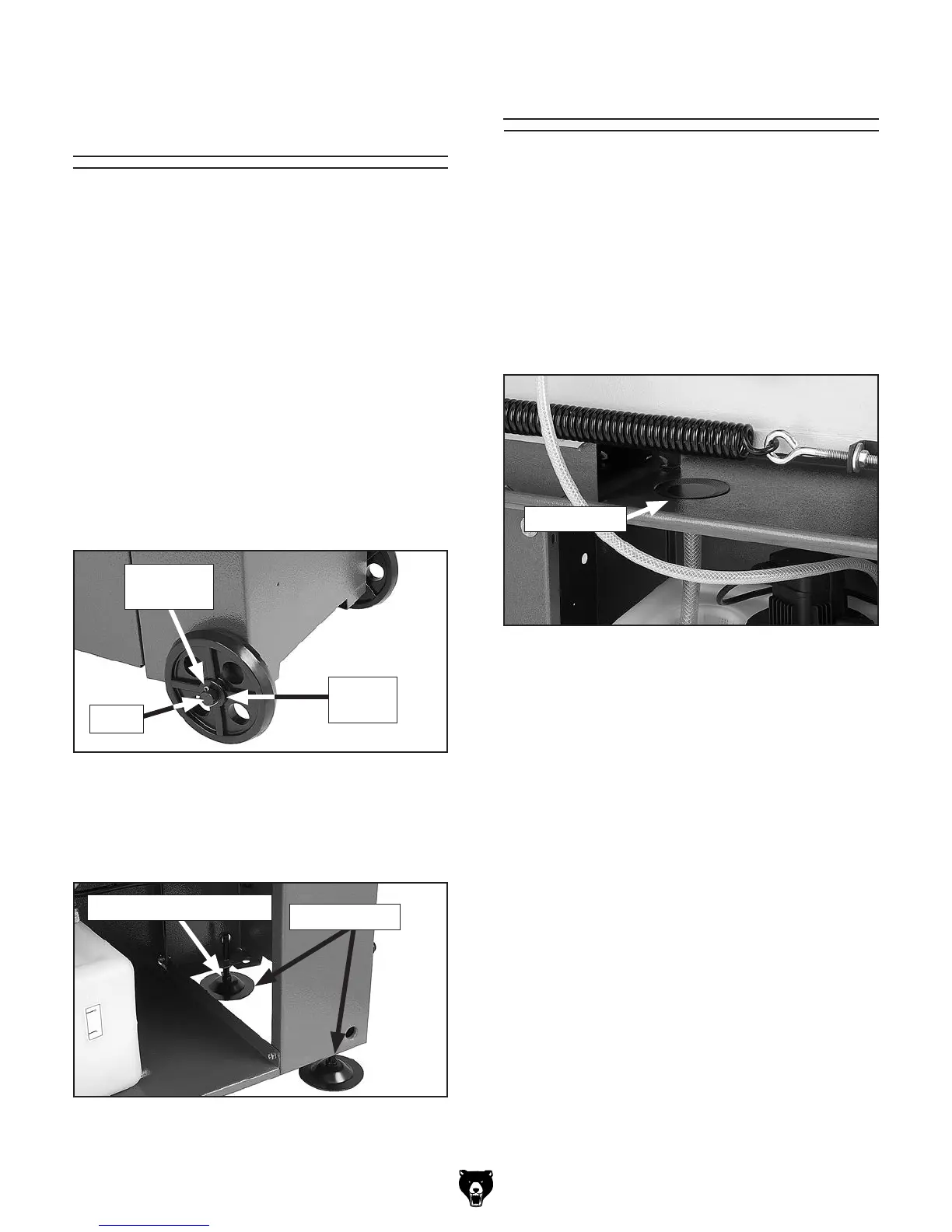

To install wheels and leveling feet:
1. Slide axle through holes in bottom of cabinet.
2. Slide one flat washer onto the axle, followed
by a wheel and another washer. Secure with
cotter pins, as shown in Figure 11.
3. Attach threaded portion of leveling feet with
flat washer and hex nut into the base of cabi-
net, as shown in Figure 12.
Wheels & Leveling
Feet
4. Adjust the feet to level bandsaw as needed.
Chip Screen
The chip screen is designed to prevent chips and
cutoffs from entering the coolant tank.
Components and Hardware Needed: Qty
Chip Screen ........................................................1
To install chip screen:
1. Place chip screen into opening shown in
Figure 13.
Figure 13. Chip screen installed.
Chip Screen
Figure 12. Leveling feet attached.
Hex Nut & Flat Washer
Leveling Feet
Figure 11. Wheels secured with cotter pin.
Axle
Cotter Pin
(1 of 2)
Washer
(1 of 2)
