-48-
Model G0561 (Mfd. Since 01/08)
Main Motor
Coolant Motor
HY29H
Power Switch
(Viewed From Behind)
HY29H
Coolant Switch
(Viewed From Behind)
Start
Capacitor
400 MF
125 VAC
KUOYUH
Circuit Breaker
13A 125-250V
GND
GND
Main Motor
Coolant Motor
HY29H
Power Switch
(Viewed From Behind)
HY29H
Coolant Switch
(Viewed From Behind)
Start
Capacitor
400 MF
125 VAC
KUOYUH
Circuit Breaker
13A 125-250V
GND
GND
CBB61
Run Capacitor
3MF
450VAC
CBB61
Run Capacitor
3MF
450VAC
Hot
Hot
Ground
6-15 Plug
(As Recommended)
220
VAC
G

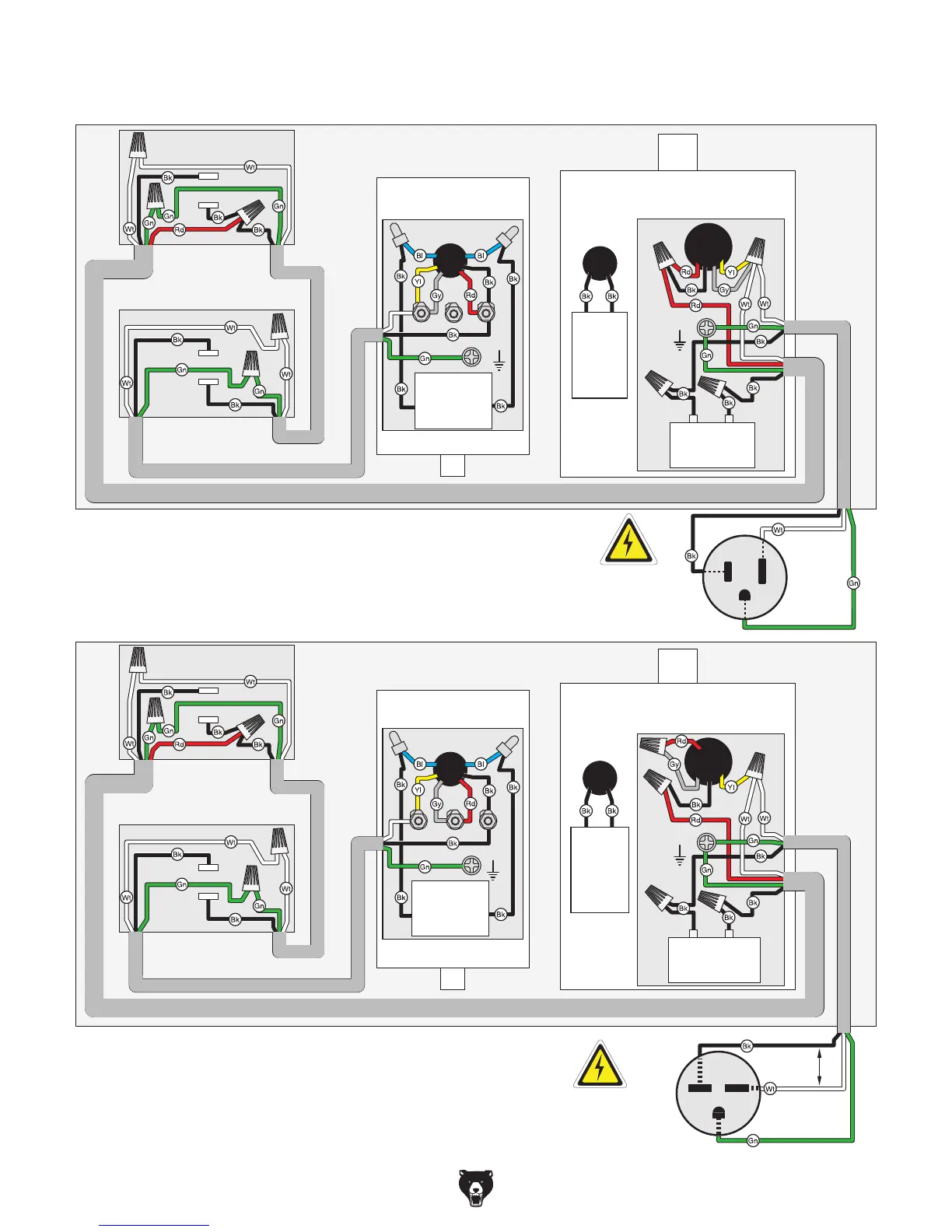

220V Wiring Diagram
110V Wiring Diagram
110 VAC
5-15 Plug
Hot
Neutral
Ground
G0561 110V & 220V Wiring Diagrams
