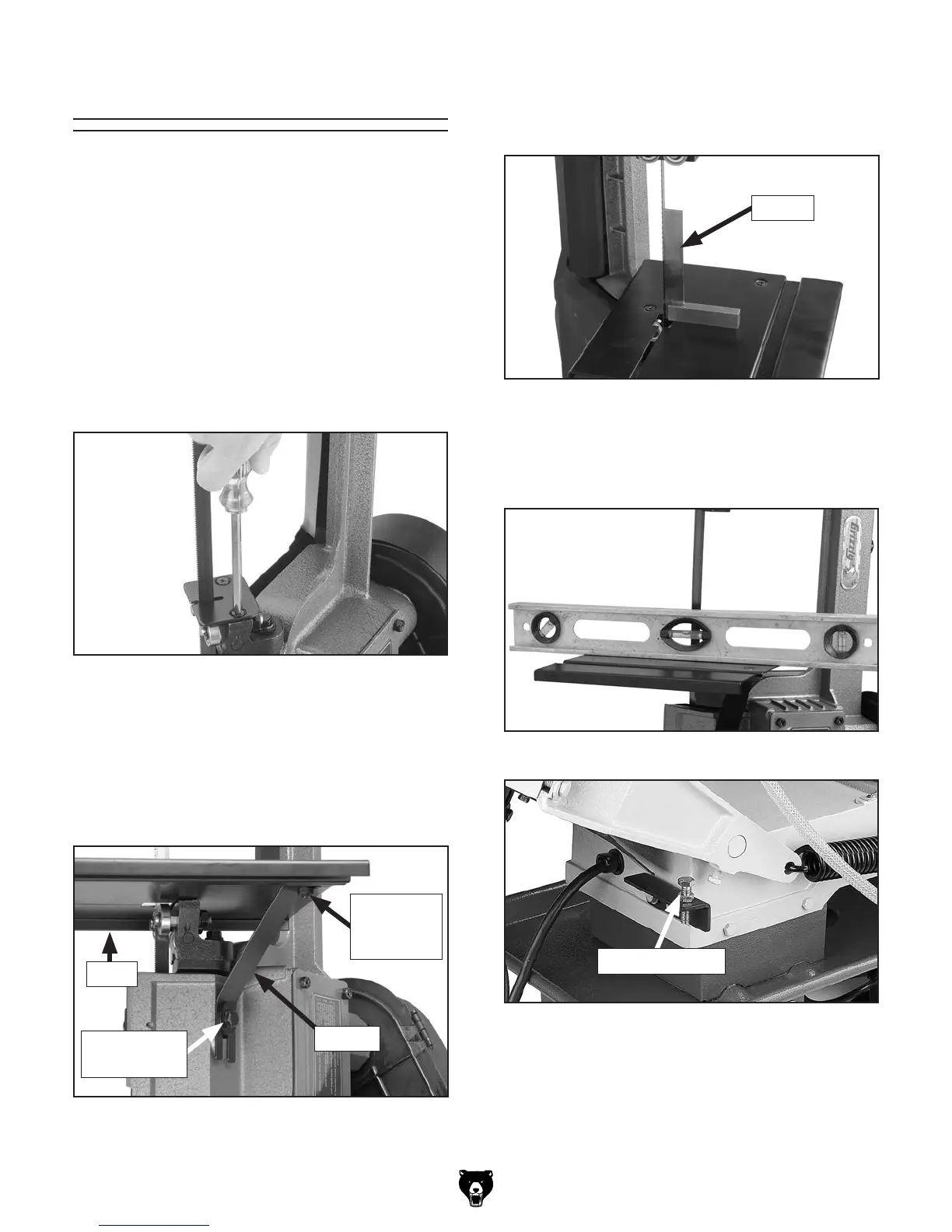

Vertical Assembly
Figure 21. Location of flat head screws holding
blade guide cover.
2. Install vertical work table and replace the two
flat head screws removed in Step 1.
3. Install table bracket using pre-installed bolt
already in casting (see Figure 22).
The Model G0561 can be set up for vertical cut-
ting operations.
Components and Hardware Needed: Qty
Vertical Work Table ............................................1
Table Bracket .....................................................1
Flat Head Screw
1
⁄4"-20 x
1
⁄2" ............................. 1
Hex Nut
1
⁄4"-20 ................................................... 1
To assemble bandsaw for vertical cutting:
1. Remove the two flat head screws and blade
guide cover (see Figure 21).
Figure 23. Squaring table to blade.
4. Set a square on table to side of blade, as
shown in Figure 23, and adjust table bracket
to square table to blade.
Figure 25. Location of adjustment bolt.
Figure 24. Adjusting table level.
5. Place a level on the table, as shown in Figure
24, and turn the adjustment bolt shown in
Figure 25 until table is level.
Adjustment Bolt
Square
Figure 22. Table and bracket installed.
Bolt Already
in Casting
Table
Bracket
Flat Head
Screw and
Hex Nut
To Next Page
