Pulley Cover
Components and Hardware Needed: Qty
Pulley Cover ......................................................1
Collar ..................................................................1
Hex Bolts
1
⁄4"-20 x
1
⁄2" .........................................2
Flat Washers
1
⁄4" .................................................2
Knob
1
⁄4"-20 x
5
⁄8" ................................................1
To install the pulley cover:
1. Slide the collar onto the bottom side of the
pulley cover and snap in place, as shown in
Figure 18.
Entanglement Hazard!
You MUST install the pul-
ley cover before operat-
ing or severe injury may
occur.
The V-belt needs to be tensioned or repositioned
for your desired RPM.
To tension or reposition V-belt:
1. DISCONNECT MACHINE FROM POWER!
2. Loosen the two hex bolts on motor mount
bracket (see Figure 17).
3. Adjust the two hex bolts on motor mount
plate to loosen belt (see Figure 17).
4. Slip V-belt over combination of pulleys to get
desired RPM. Make sure belt is on parallel
sheaves. See chart on inside of pulley cover
for RPM choices.
5. Retension belt. Apply enough tension so belt
deflects about
1
⁄4" with moderate pressure
when pinched together between center of
pulleys.
V-Belt

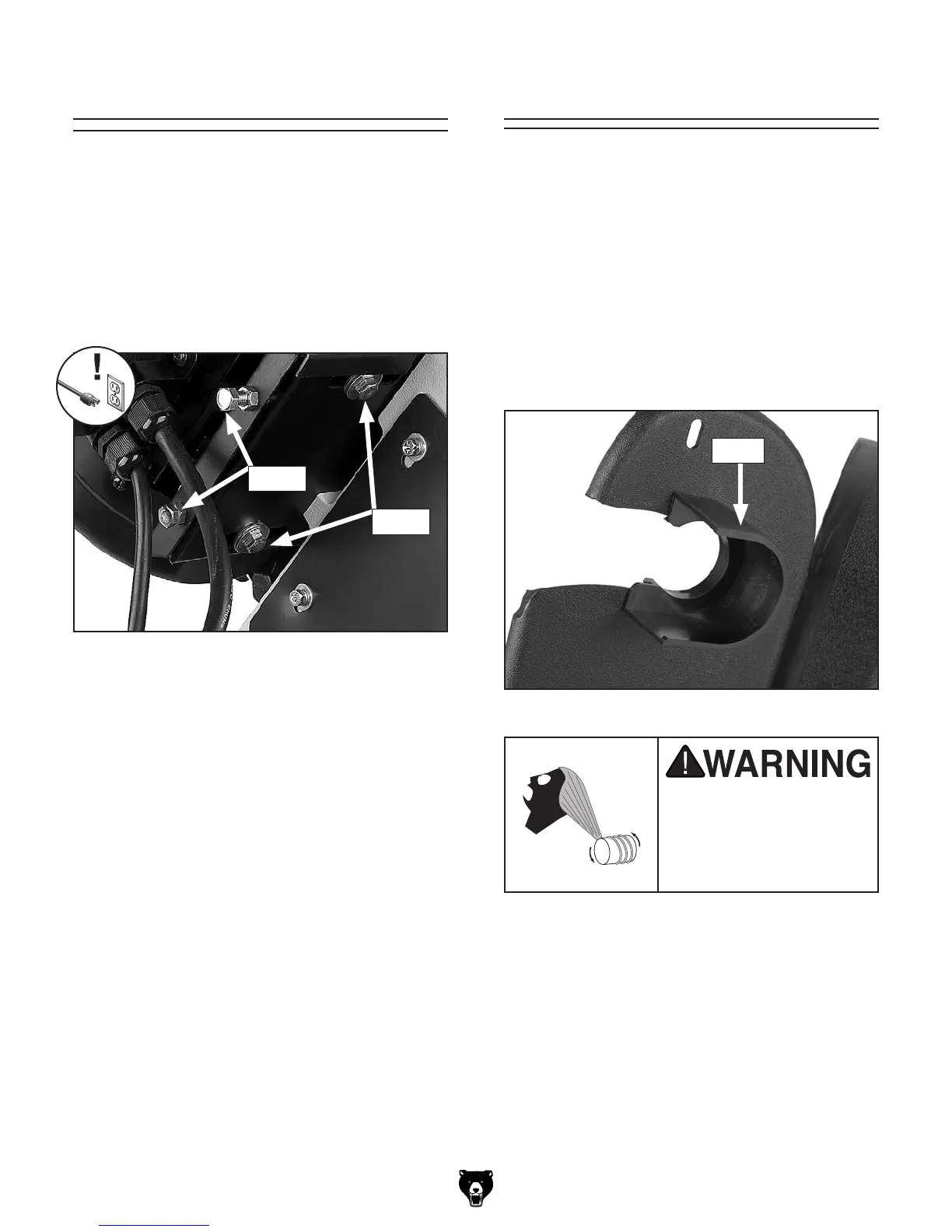

Figure 17. Location of V-belt tension hex bolts.
Step 2
Step 3
Figure 18. Collar installed.
Collar
