-22-
Model G0561 (Mfd. Since 01/08)
6. Close feed ON/OFF valve to lock bow in posi-
tion (see Figure 26).

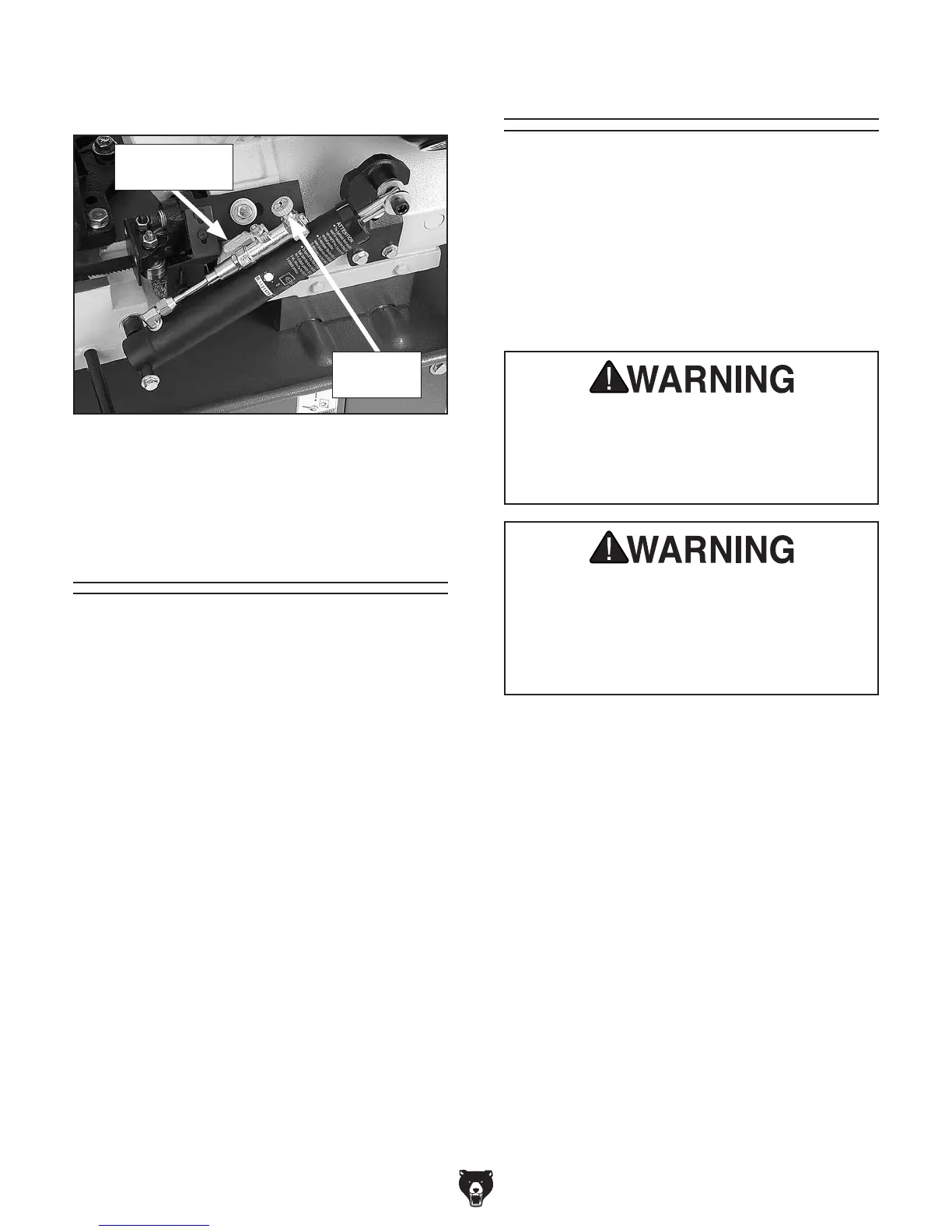

Figure 26 Location of feed ON/OFF valve and
feed rate dial.
Inspections &
Adjustments
The following list of adjustments were performed
at the factory before the machine was shipped:
• Blade Tension & Tracking ...............Page 43
• Squaring the Blade ..........................Page 44
• Blade Guide Bearings .....................Page 45
Be aware that these can change during the
shipping process. Pay careful attention to these
adjustments when first operating the machine. If
you find that the adjustments are not set to your
personal preferences, re-adjust them.
Test Run
Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The
Troubleshooting
table in the
SERVICE section of this manual can help.
DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine
may result in malfunction or unexpect-
ed results that can lead to serious injury,
death, or machine/property damage.
Serious injury or death can result from
using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.
To test run machine:
1. Clear all setup tools away from machine.
2. Connect machine to power supply.
3. Turn machine ON. Verify motor operation,
and then turn machine OFF. The motor
should run smoothly and without unusual
problems or noises.
Feed Rate
Dial
Feed ON/OFF
Valve
To Next Page
