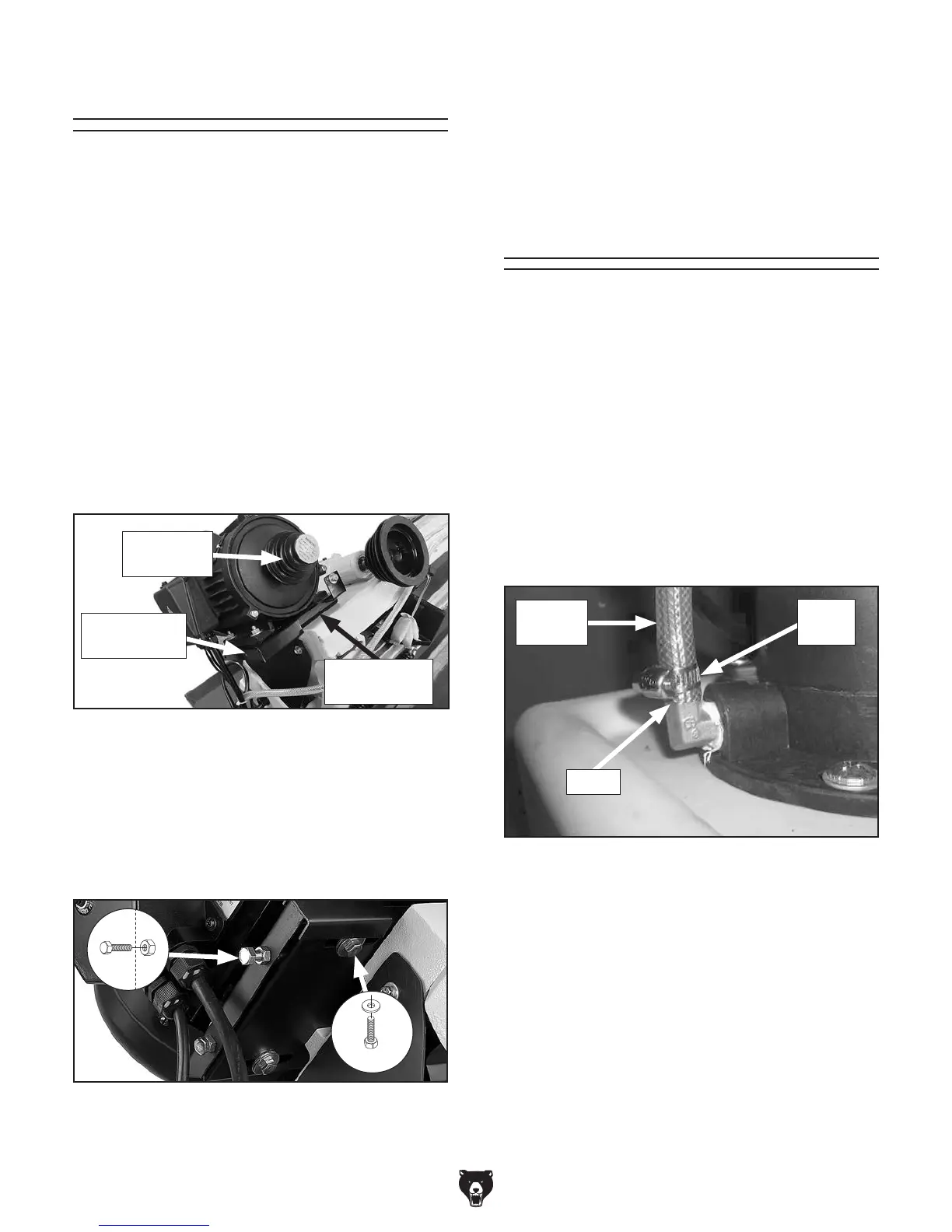

-18-
Model G0561 (Mfd. Since 01/08)
Motor
The motor is placed inside the machine cabinet
for shipping purposes and must be installed in
order for the machine to operate.
Components and Hardware Needed: Qty
Motor ................................................................. 2
V-Belt 3V270 ...................................................... 1
Hex Bolts
5
16"-18 x 1" ....................................... 4
Hex Nuts
5
16"-18 ................................................ 2
Flat Washers
5
16" ............................................... 2
4. Install V-belt onto pulleys, then use a straight-
edge to check pulley alignment. If pulleys are
not aligned, loosen motor pulley set screw
(see Figure 14), adjust pulley, then re-tighten
set screw.
Coolant Tank
The coolant tank hose is not installed onto the
coolant tank for shipping purposes, so these must
be connected prior to operating the machine.
Components and Hardware Needed: Qty
Coolant Tank ..................................................... 1
Hose Clamp
5
8" ................................................. 1
To install coolant tank:
1. Move coolant tank into cabinet.
2. Push hose over coolant tank fitting and
secure with hose clamp (see Figure 16).
Figure 16. Coolant hose installed.
Fitting
Hose
Clamp
Coolant
Hose
To install motor:
1. Remove motor from cabinet.
2. Slide motor mount plate into motor mount
bracket (see Figure 14).
Figure 14. Motor installed on motor mount
bracket.
Motor Mount
Bracket
Motor Mount
Plate
Pulley Set
Screw
Figure 15. Motor mounting fasteners installed.
x 2
3. Thread (2)
5
16"-18 x 1" hex bolts with
5
16"
hex nuts into side of motor mount plate, then
thread (2)
5
16"-18 x 1" hex bolts with
5
16"
flat washers into motor mount bracket (see
Figure 15).
x 2
