-30-
Model G0561 (Mfd. Since 01/08)
Cutting Fluid System
This bandsaw has a built-in cutting fluid system
that extends the life of your bandsaw blades by
lowering the cutting temperature and washing
away chips.
See Cutting Fluid on Page 31 for more informa-
tion.
To use cutting fluid system:
1. Thoroughly clean and remove any foreign
material that may have fallen inside reservoir
during shipping.
2. Place filter screen and drain tube in reservoir,
as shown in Figure 38.
ELECTROCUTION
HAZARD! Never plug or
unplug machine with wet
hands or while standing on
wet floor.
4. Adjust valve on coolant hose to control flow
of coolant (see Figure 39). Make sure that
pressure is not so high that coolant spills on
floor and creates a slipping hazard.
5. Turn pump toggle switch ON before making
your cut.
FIRE HAZARD! DO NOT cut
magnesium when using oil-
water solutions as a cut-
ting fluid! Always use a
cutting fluid intended for
magnesium. The water in
the solution will cause a
magnesium-chip fire.
Keep tray chip screen clear so coolant can
recycle to pump reservoir. NEVER operate
pump with reservoir below low mark or you
will over-heat pump and void warranty!
3. Fill reservoir to "High" mark with cutting fluid.

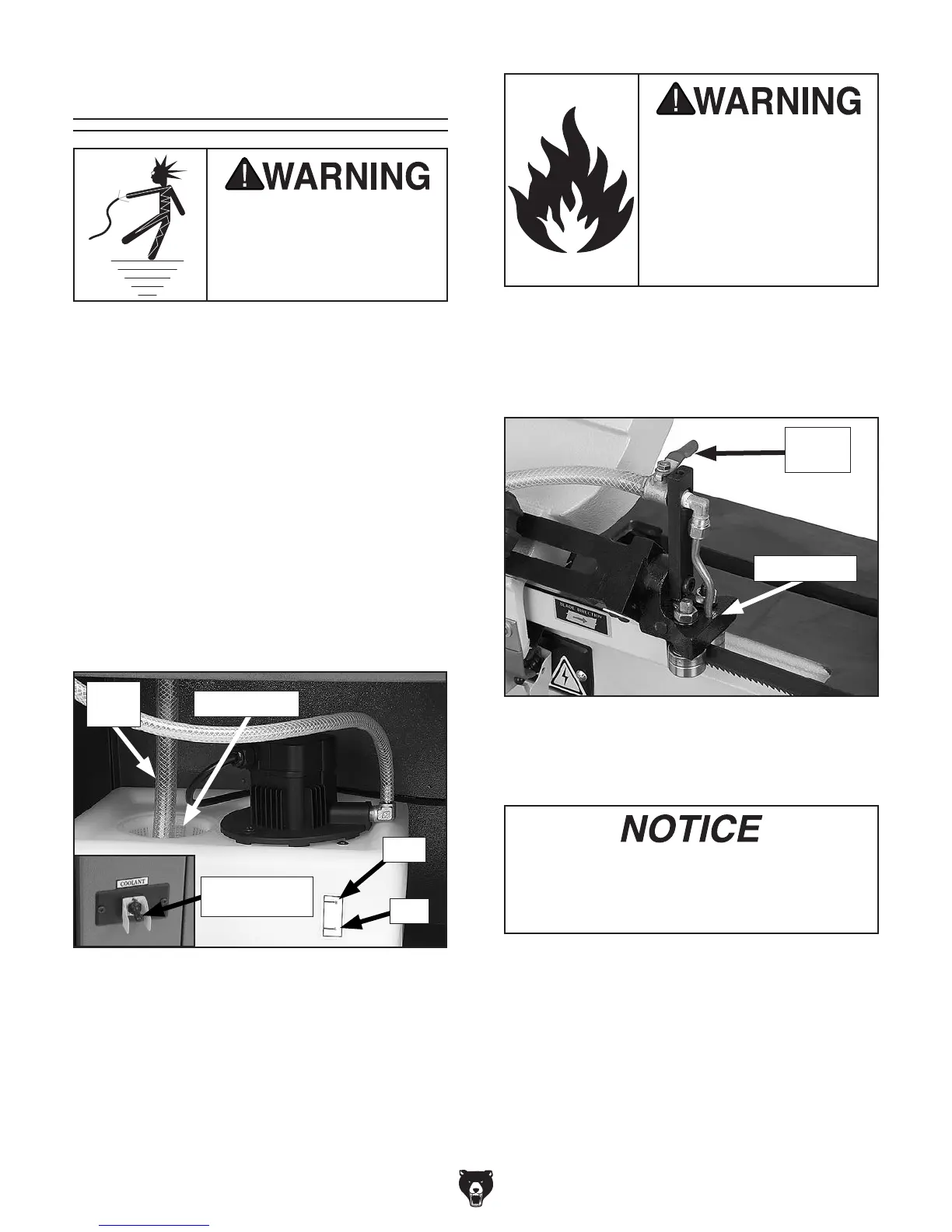

Figure 38. Identification of coolant components.
Pump Toggle
Switch
Low
High
Filter Screen
Drain
Tube
Figure 39. Location of coolant control valve.
Fluid Nozzle
Control
Valve
