Grizzly G0704 User Manual

-20-
Model G0704 (Mfg. Since 08/11)
Power Connection
After you have completed all previous setup
instructions and circuit requirements, the machine
is ready to be connected to the power supply.
To avoid unexpected startups or property dam-
age, use the following steps whenever connecting
or disconnecting the machine.
Connecting Power

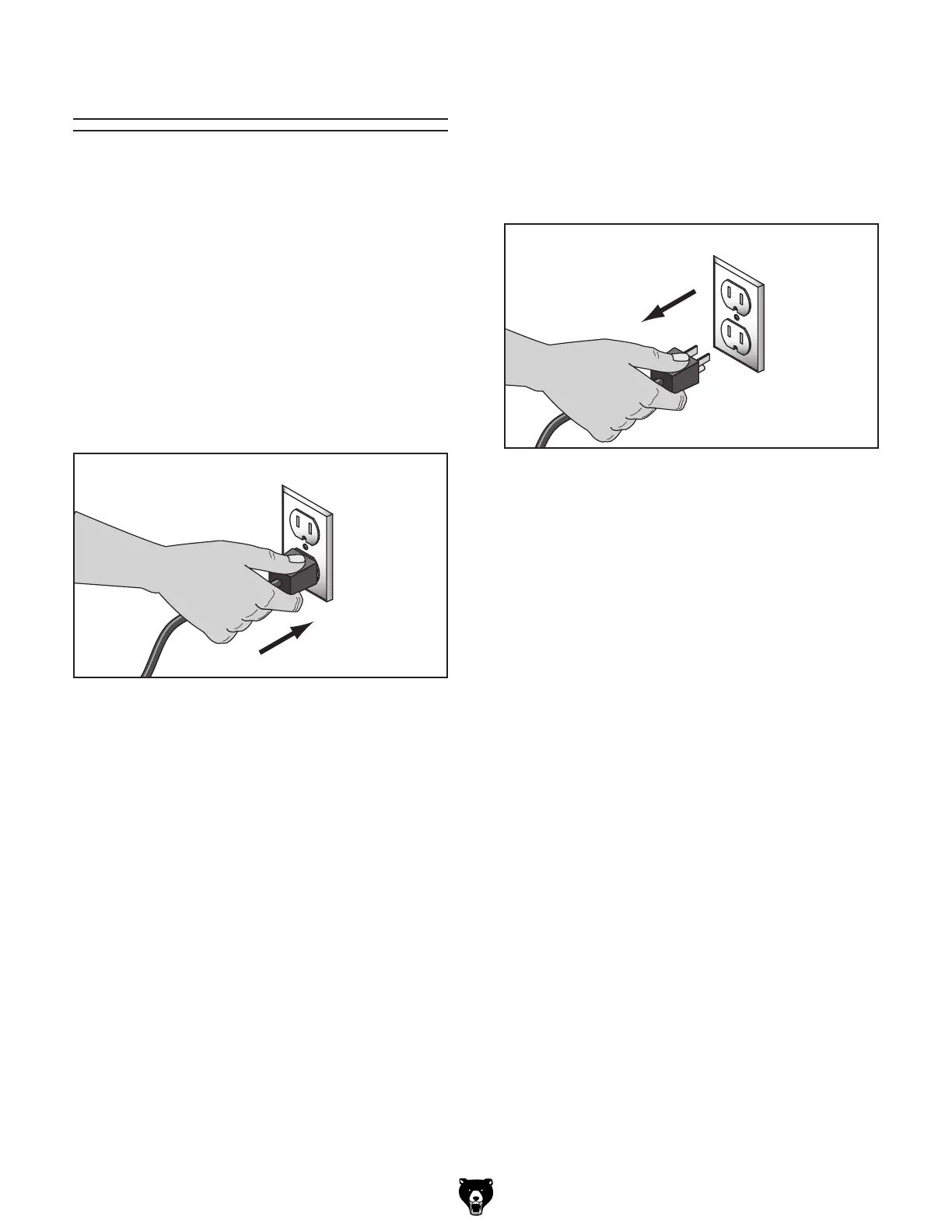

Figure 15. Connecting power.
1. TurnthemachinepowerswitchOFF.
2.
 Insert the power cord plug into a
matching
power supply receptacle. The machine
is
nowconnectedtothepowersource.
Disconnecting Power
Figure 16. Disconnecting power.
1. TurnthemachinepowerswitchOFF.
2.
 Graspthemoldedplugandpullit
completely
outofthereceptacle.Donotpullbythe
cord
asthismaydamagethewiresinside.

Grizzly G0704 Specifications

General

Motor	1 HP, 110V, Single-phase
Spindle Taper	R-8
Max Spindle Speed	2500 RPM
Model	G0704
Category	Drill
Spindle Travel	2"
Spindle Speed	50-2500 RPM
Table Tilt	45° Left/Right
Speed Range	50-2500 RPM
