Grizzly G0704 User Manual

Model G0704 (Mfg. Since 08/11)
-3-
Identification

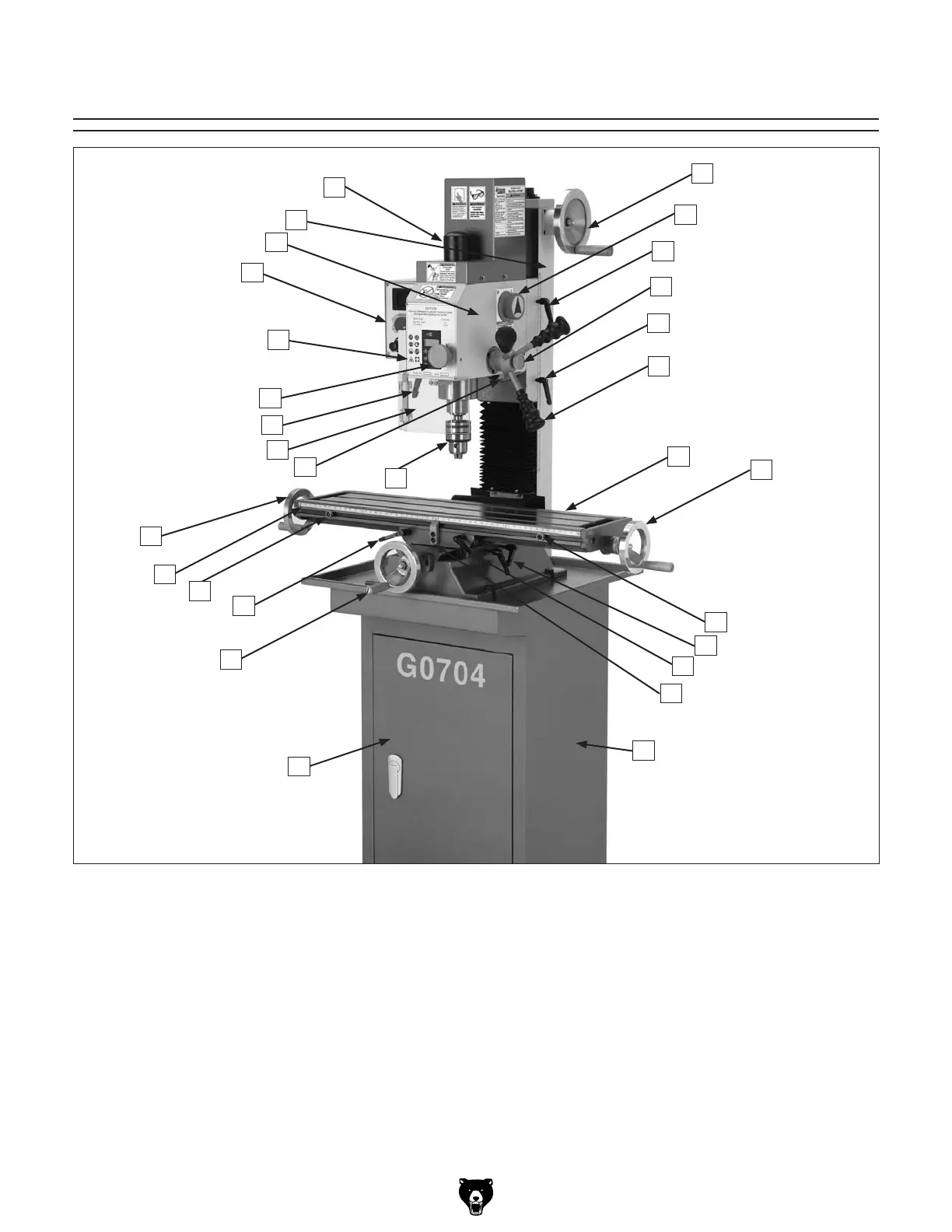

Figure 1. G0704 Identification.
A. Drawbar Cap and Drawbar
B. Vertical (Z-Axis) Handwheel
C. Speed Range Selector Knob
D. Vertical Travel Lock
E. Fine Feed Lock Knob
F. Quill Feed Lever
G. Table
H. Longitudinal (X-Axis) Handwheel
I. Longitudinal Table Stop
J. Table Cross Travel Locks
K. Table Longitudinal Travel Lock
L. Table Center Stop
M. Machine Stand
N. Storage Access Door
O. Cross (Y-Axis) Handwheel
P. Longitudinal Scale
Q. Drill Chuck
R. Headstock Tilt Scale
S. Chip Guard
T. Quill Lock Lever
U. Fine Feed Knob
V. Digital Readout (Page 4)
W. Control Panel (Page 4)
X. Headstock
Y. Column
H
H
A
B
R
S
P
O
N
I
I
L
J
M
W
X
Y
V
U
G
F
D
D
C
E
K
K
T
Q

Grizzly G0704 Specifications

General

Motor	1 HP, 110V, Single-phase
Spindle Taper	R-8
Max Spindle Speed	2500 RPM
Model	G0704
Category	Drill
Spindle Travel	2"
Spindle Speed	50-2500 RPM
Table Tilt	45° Left/Right
Speed Range	50-2500 RPM
