Grizzly G0704 User Manual

-4-
Model G0704 (Mfg. Since 08/11)
Electronic Controls Identification

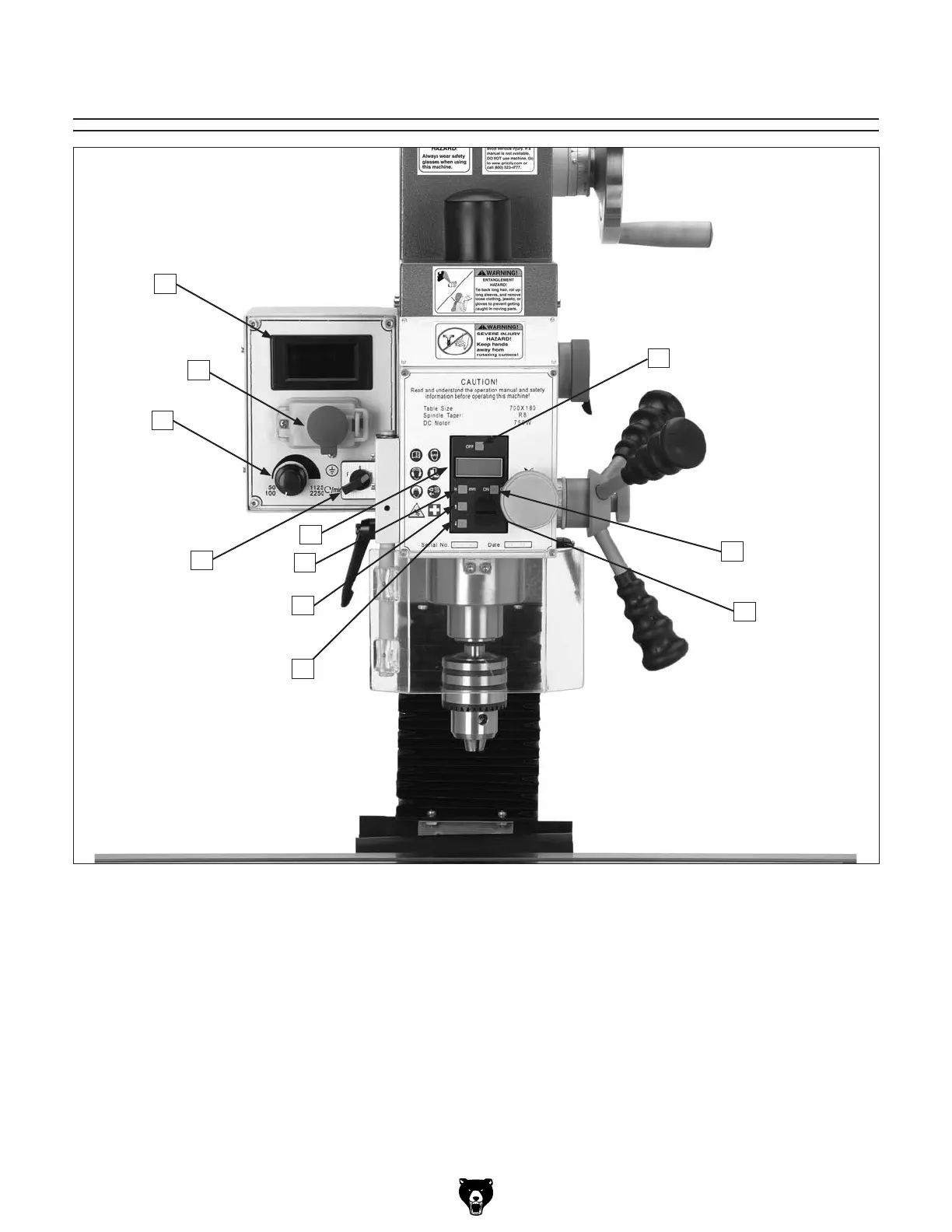

Figure 2. G0704 electronic controls identification.
A. Spindle RPM Readout
B. Spindle Digital Readout OFF Button
C. Digital Readout ON/ZERO Button
D. Digital Readout Battery Cover & Battery
E. Spindle Depth Display DECREASE Button
F. Spindle Depth Display INCREASE Button
G. IN/MM Unit Selection Button
H. Spindle Depth Display
I. Spindle Direction Selection Knob
J. Variable Spindle Speed Knob
K. START/Emergency STOP Buttons
H
A
B
I
K
J
G
F
D
C
E

Grizzly G0704 Specifications

General

Motor	1 HP, 110V, Single-phase
Spindle Taper	R-8
Max Spindle Speed	2500 RPM
Model	G0704
Category	Drill
Spindle Travel	2"
Spindle Speed	50-2500 RPM
Table Tilt	45° Left/Right
Speed Range	50-2500 RPM
