Grizzly G0704 User Manual

Model G0704 (Mfg. Since 08/11)
-31-
2. Turn the vertical handwheel shown in Figure
30 to raise or lower the headstock, then lock
the vertical travel lock levers.
Note: For maximum spindle rigidity when
milling, keep the spindle retracted into the
headstock as far as possible with the quill
lock lever locked and with the fine feed lock
knob tightened.
Headstock Travel
(Z-Axis and Rotation)
Headstock height is adjustable in the vertical
Z-axis to accept large workpieces. For unique
milling operations, the headstock can be tilted
right or left between 0° and 90°.
To raise or lower the headstock:
1. Unlock the vertical travel lock levers shown in
Figure 30.
To tilt the headstock to the left or right:
1. DISCONNECT MILL/DRILL FROM POWER.

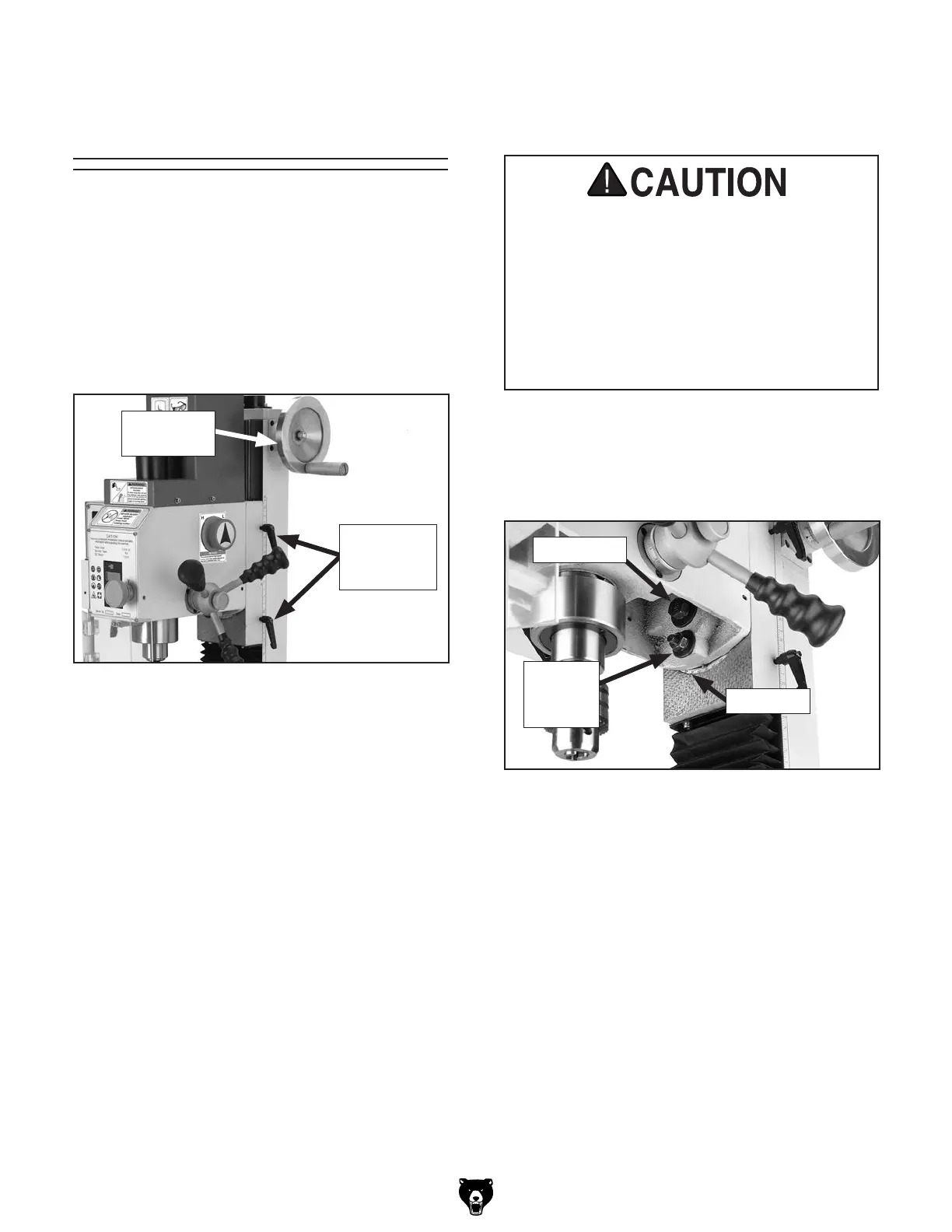

Figure 30. Headstock slide controls.
Vertical
Travel Lock
Levers
Vertical
Handwheel
Figure 31. Headstock tilt controls.
Center Bolt
Tilt Scale
Angle
Lock Nut
1 of 3
2. Support the headstock with one hand, then
using the included 17/19mm combo wrench,
loosen the headstock center bolt and three
angle lock nuts (Figure 31).
During the following steps, be aware that the
headstock is top-heavy and will swing if it is
not well supported once the center bolt and
lock nut are loosened. Always support the
headstock with one hand when loosening
these fasteners. Failure to do so may result
in unexpected movement of the headstock,
causing damage to the machine and per-
sonal injury.
3. While watching the tilt scale, rotate the head-
stock to the required angle, then retighten
the center bolt and angle lock nut to hold the
headstock in place.

Grizzly G0704 Specifications

General

Motor	1 HP, 110V, Single-phase
Spindle Taper	R-8
Max Spindle Speed	2500 RPM
Model	G0704
Category	Drill
Spindle Travel	2"
Spindle Speed	50-2500 RPM
Table Tilt	45° Left/Right
Speed Range	50-2500 RPM
