Grizzly G0704 User Manual

Model G0704 (Mfg. Since 08/11)
-49-
83
84
79
85
89
88
92V2
96
86
91
91
91
81
86
87
80
80-1
78
94
90
94
93
95

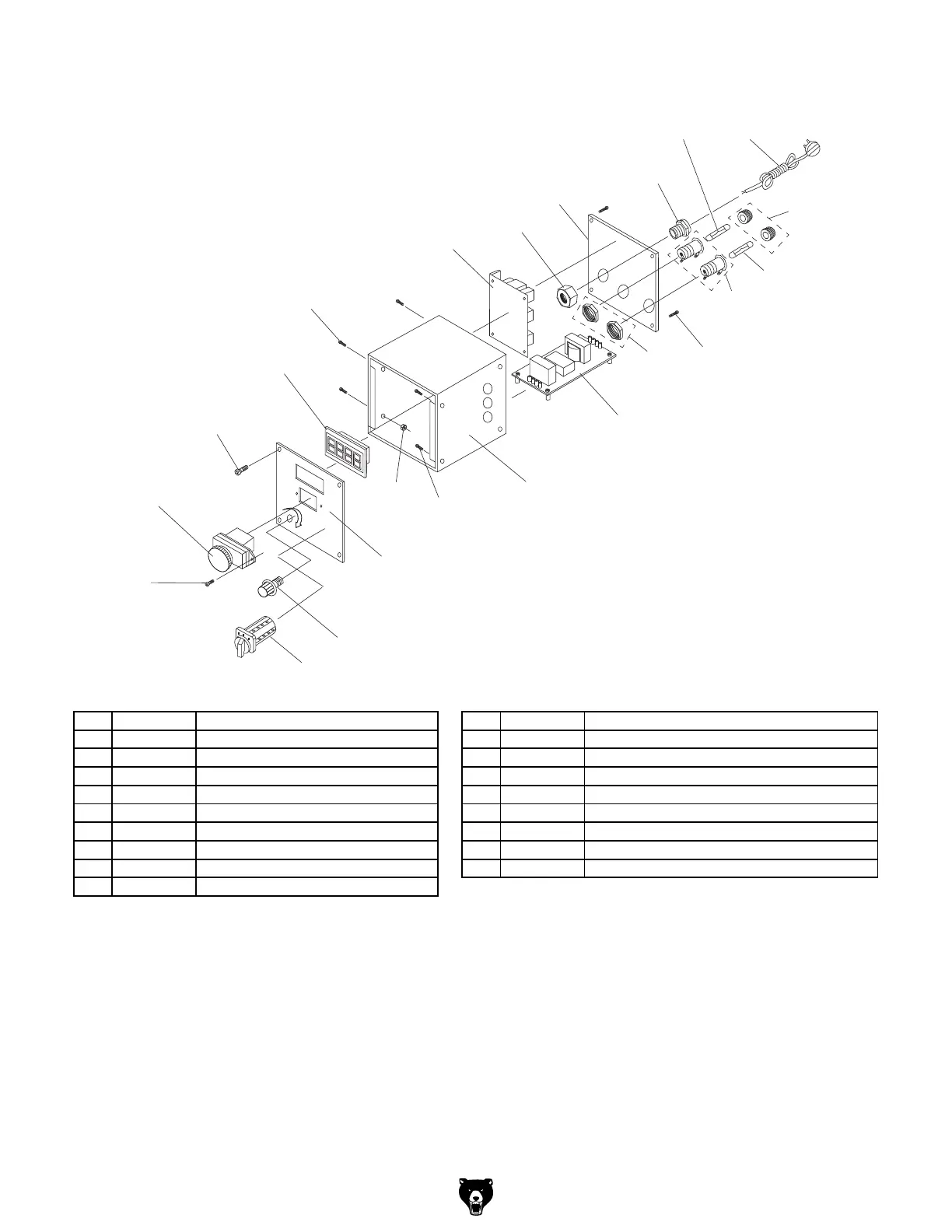

Electrical Box Breakdown & Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
78 P0704078 CIRCUIT BOARD JD-014 5WR02J 88 P0704088 ELECTRICAL BOX
79 P0704079 SPINDLE SPEED KNOB WX14-12 89 P0704089 CAP SCREW M5-.8 X 8
80 P0704080 CAP SCREW M3-.5 X 16 90 P0704090 ELECTRICAL BOX REAR COVER
80-1 P0704080-1 HEX NUT M3-.5 91 P0704091 FUSE HOLDER
81 P0704081 CIRCUIT BOARD CESX 1101-28 92V2 P0704092V2 FUSE 15A 250V FAST-ACTING GLASS V2.01.11
83 P0704083 ON/OFF SWITCH KEDU KJD-178/120V 93 P0704093 POWER CORD 18G 3W 72" 5-15
84 P0704084 CAP SCREW M4-.7 X 10 94 P0704094 STRAIN RELIEF M20 X 1.5 TYPE-3
85 P0704085 CONTROL PANEL PLATE 95 P0704095 FWD/REV SWITCH KEDU EN61058
86 P0704086 CAP SCREW M4-.7 X 6 96 P0704096 FUSE 10A 250V FAST-ACTING GLASS
87 P0704087 RPM DIGITIAL DISPLAY ZD-SX-THL

Grizzly G0704 Specifications

General

Motor	1 HP, 110V, Single-phase
Spindle Taper	R-8
Max Spindle Speed	2500 RPM
Model	G0704
Category	Drill
Spindle Travel	2"
Spindle Speed	50-2500 RPM
Table Tilt	45° Left/Right
Speed Range	50-2500 RPM
