Grizzly G0704 User Manual

-52-
Model G0704 (Mfg. Since 08/11)
290
277
278
279
280
281
282
283
284
285
286
287
288
289

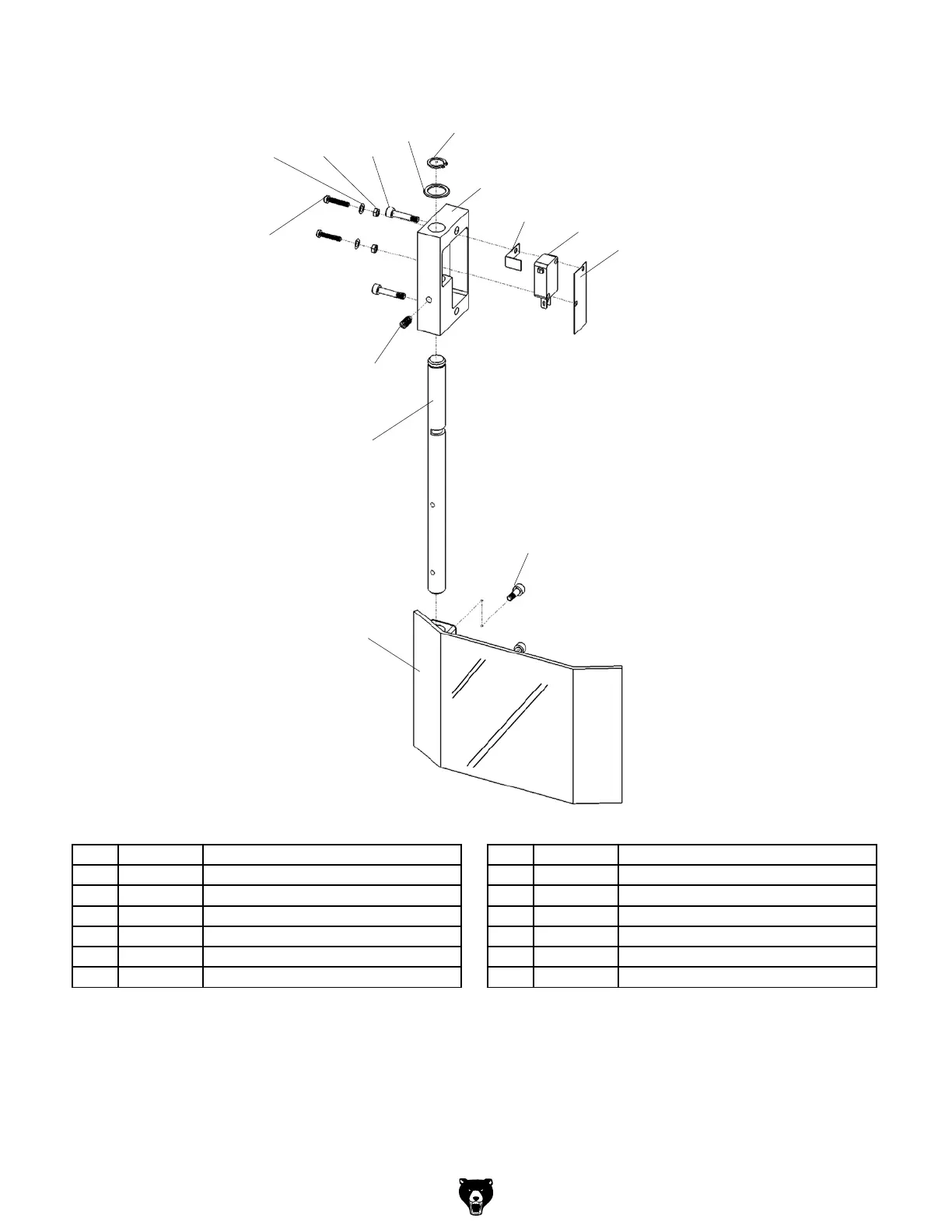

Chip Guard Breakdown & Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
277 P0704277 FLAT WASHER 3MM 284 P0704284 LIMIT SWITCH DATER KW1-103
278 P0704278 HEX NUT M3-.5 285 P0704285 PROTECTIVE PAPER
279 P0704279 CAP SCREW M4-.7 X 20 286 P0704286 SET SCREW M5-.8 X 10
280 P0704280 EXT RETAINING RING 12MM 287 P0704287 CHIP GUARD POST
281 P0704281 WAVY WASHER 20MM 288 P0704288 CHIP GUARD
282 P0704282 GUARD MOUNTING BLOCK 289 P0704289 CAP SCREW M4-.7 X 18
283 P0704283 SPACER, COPPER 290 P0704290 CAP SCREW M3-.5 X 16

Grizzly G0704 Specifications

General

Motor	1 HP, 110V, Single-phase
Spindle Taper	R-8
Max Spindle Speed	2500 RPM
Model	G0704
Category	Drill
Spindle Travel	2"
Spindle Speed	50-2500 RPM
Table Tilt	45° Left/Right
Speed Range	50-2500 RPM
