Grizzly G0817 User Manual

-16-
Model G0817 (Mfd. Since 05/16)

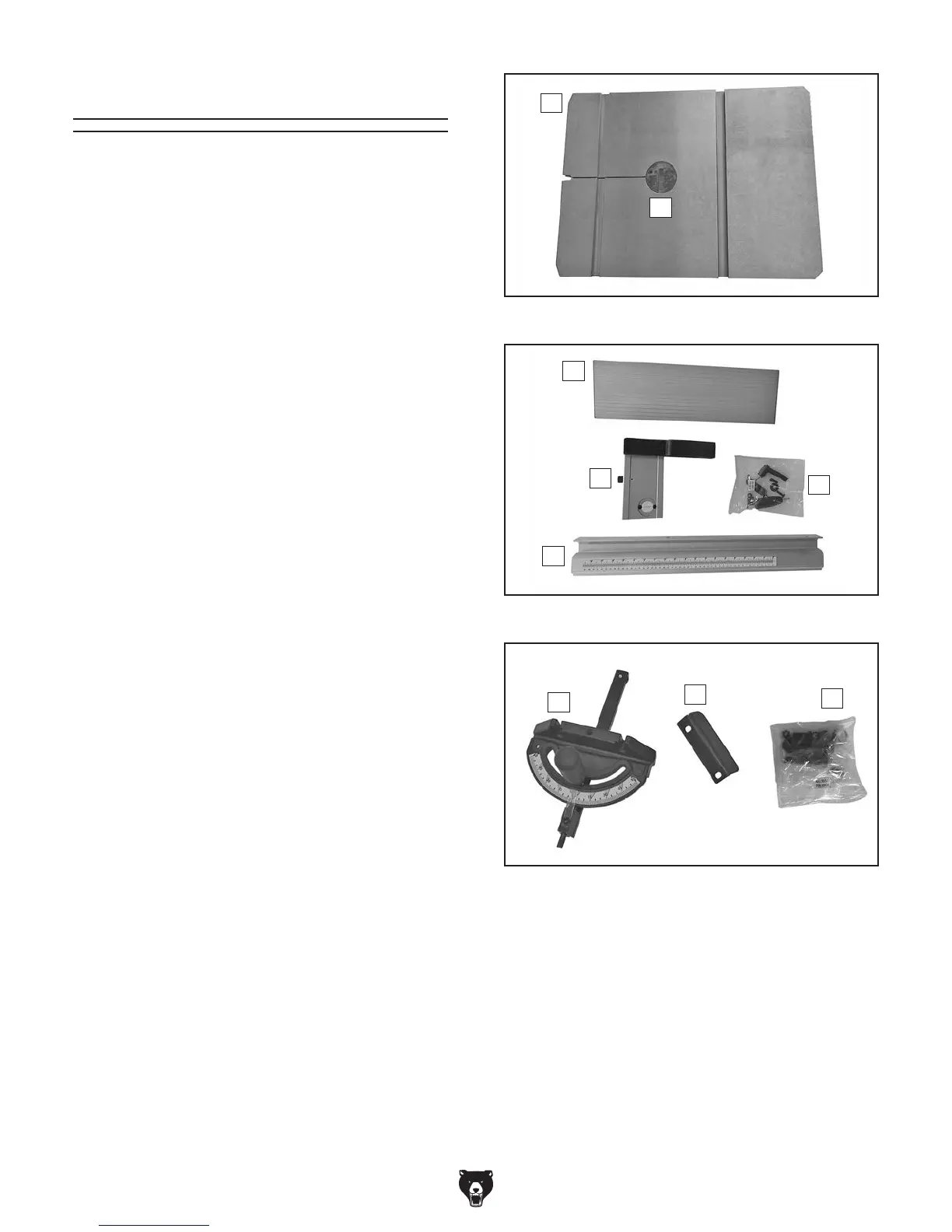

Figure 16. Box 1 inventory.
B
C
Figure 17. Box 2 inventory.
D
E
F
G
Figure 18. Loose item inventory.
H
I
J
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Inventory (Figures 16–18) Qty
A. Main Bandsaw Body (not shown) ............... 1
B. Table ........................................................... 1
C. Table Insert ................................................. 1
D. Fence Face................................................. 1
E. Fence Base Assembly ............................... 1
F. Hardware Bag ............................................ 1
— Hex Bolts M6-1 x 20 ............................... 2
— Lock Washers 6mm ................................ 2
— Flat Washers 6mm .................................. 2
—Fence Face Adjustable Handle .............. 1
— Flat Washer 8mm ................................... 1
— Fence Guide Plate .................................. 1
— Fence Base Lock Lever .......................... 1
— Hex Nut M8-1.25 ..................................... 1
G. Fence Rail .................................................. 1
H. Miter Gauge ................................................ 1
I. Fence Support ............................................ 1
J. Hardware Bag (refer to Page 17) ............... 1
— Lock Washers 8mm ................................ 4
— Flat Washers 8mm .................................. 4
— Hex Bolts M8-1.25 x 25 .......................... 4
— Open-End Wrench 10/13mm .................. 1
— Table Gap Screw Assembly ................... 1
— Hex Nut M8-1.25 ..................................... 1
— Flat Washer 8mm ................................... 1
— Flat Washers 6mm .................................. 2
— Cap Screws M6-1 x 12 ........................... 2
— Hex Wrench 5mm ................................... 1
— Hex Wrench 8mm ................................... 1
If you cannot find an item on this list, check
around/inside the machine and packaging materi-
als. Often, these items get lost while unpacking or
they are pre-installed at the factory.
