-74-
Model G0817 (Mfd. Since 05/16)
READ ELECTRICAL SAFETY
ON PAGE 71!

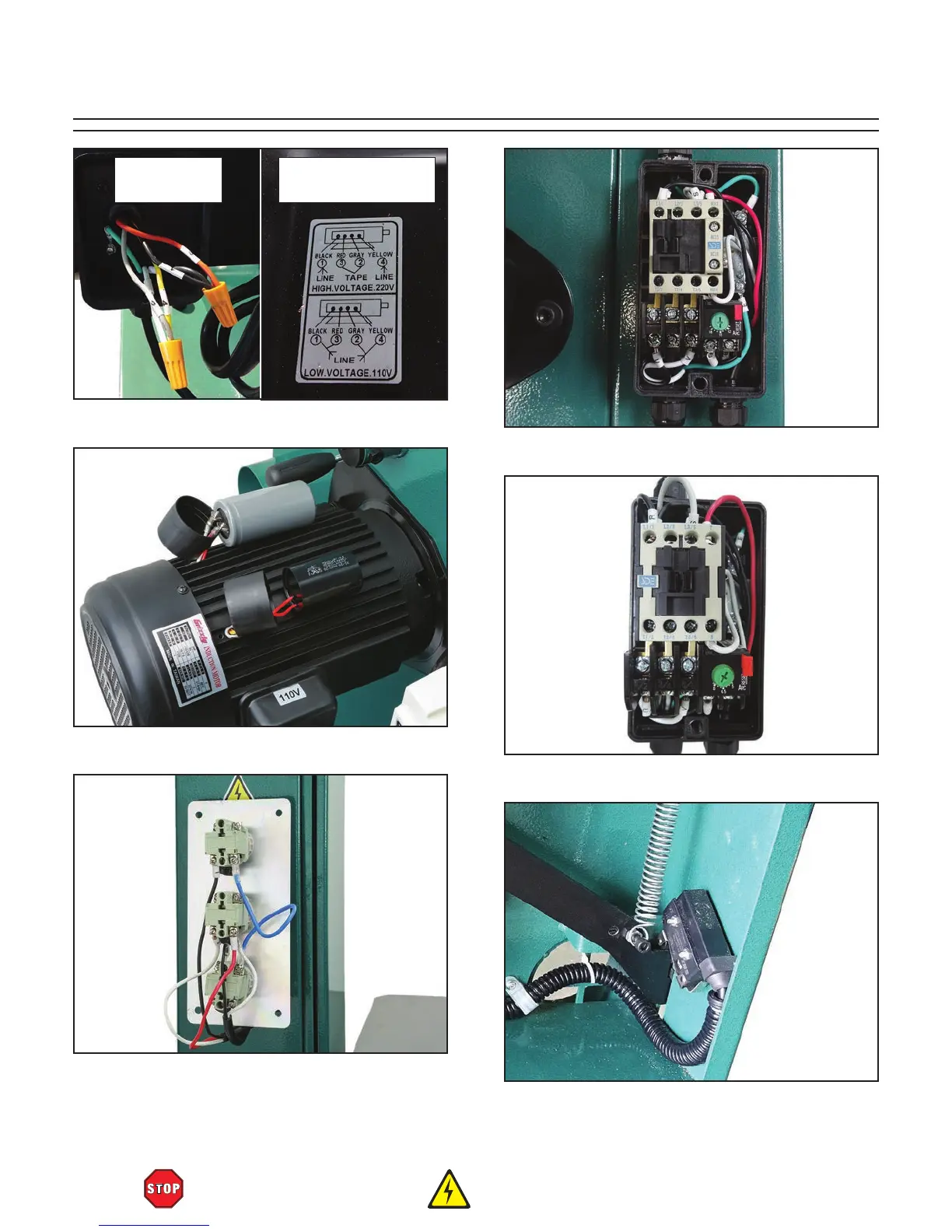

Electrical Component Wiring Photos
Figure 116. Motor junction box wiring.
Figure 117. Start and run capacitors.
Figure 119. Magnetic switch wiring 110V.
Figure 120. Magnetic switch wiring 220V.
Figure 121. Foot brake limit switch.
Figure 118. Control panel wiring.
Voltage Conversion
Label
110V Wiring
Connections
To Next Page
