Model G0817 (Mfd. Since 05/16)
Controls &
Components
Fence & Miter Gauge

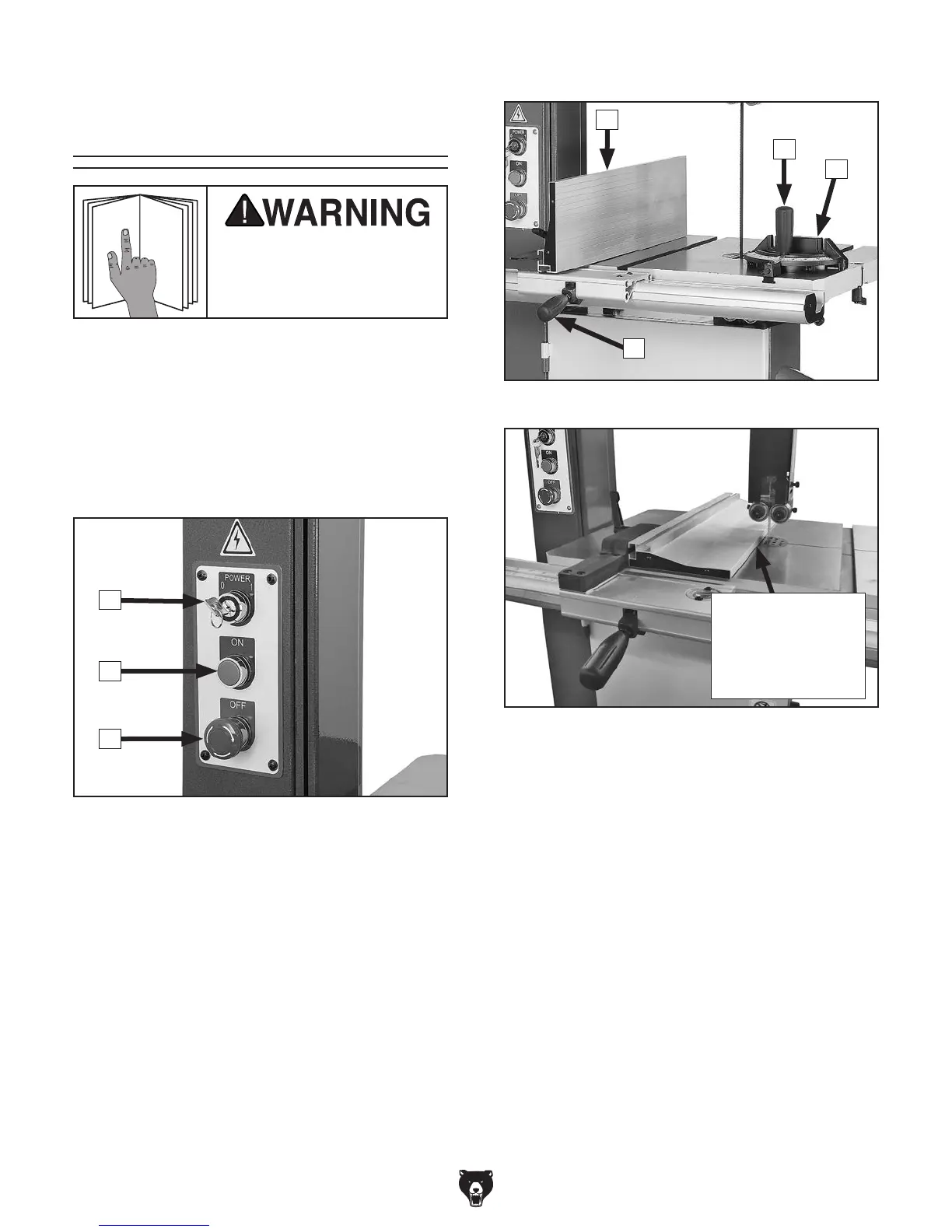

Figure 2. Fence and miter gauge controls.
D. Fence: Used for ripping or resawing. Distance
from blade determines width of cut. Can be
used in vertical position (as shown in Figure
2) for normal workpieces, or in horizontal
position (as shown in Figure 3) for thin
workpieces.
E. Miter Gauge Lock Knob: Secures angle
position of miter gauge.
F. Miter Gauge: Typically used for cross cuts.
Can be adjusted from 0°–60° left or right, and
has stops at 45°L, 90°, and 45°R.
G. Fence Lock Handle: Secures fence position.
D
E
F
G
Refer to Figures 1–10 and the following descrip-
tions to become familiar with the basic controls
and components of this machine. Understanding
these items and how they work will help you
understand the rest of the manual and stay safe
when operating this machine.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Control Panel
A. Master Power Key Switch: Turns incoming
power ON and OFF. Requires key.
B. ON Button: Turns motor ON when pressed.
C. Emergency Stop/Reset Button: Turns
motor OFF when pressed. Motor will not start
until switch is reset. Twist clockwise to reset.
Figure 1. Control panel.
A
B
C
Figure 3. Fence mounted in horizontal position.
Horizontal Position
Allows Upper
Blade Guide to Be
Adjusted Closer to
Thin Workpieces
To Next Page
