Grizzly G0817 User Manual

-80-
Model G0817 (Mfd. Since 05/16)
121-1
121-2
121-3
121-4
121-5
121-6
121-7
121-8
121-9
121-10
121-11
121-12
121-13
121-15
121-16
121-17
121-18
121-20
121-21
121-22
121-24
121-25
121-26
121-27
121-28
121
145
145-1
145-7
145-15
145-8
145-9
145-14
145-13
145-4
145-5
145-11
145-10
145-12
145-3
145-2
145-6

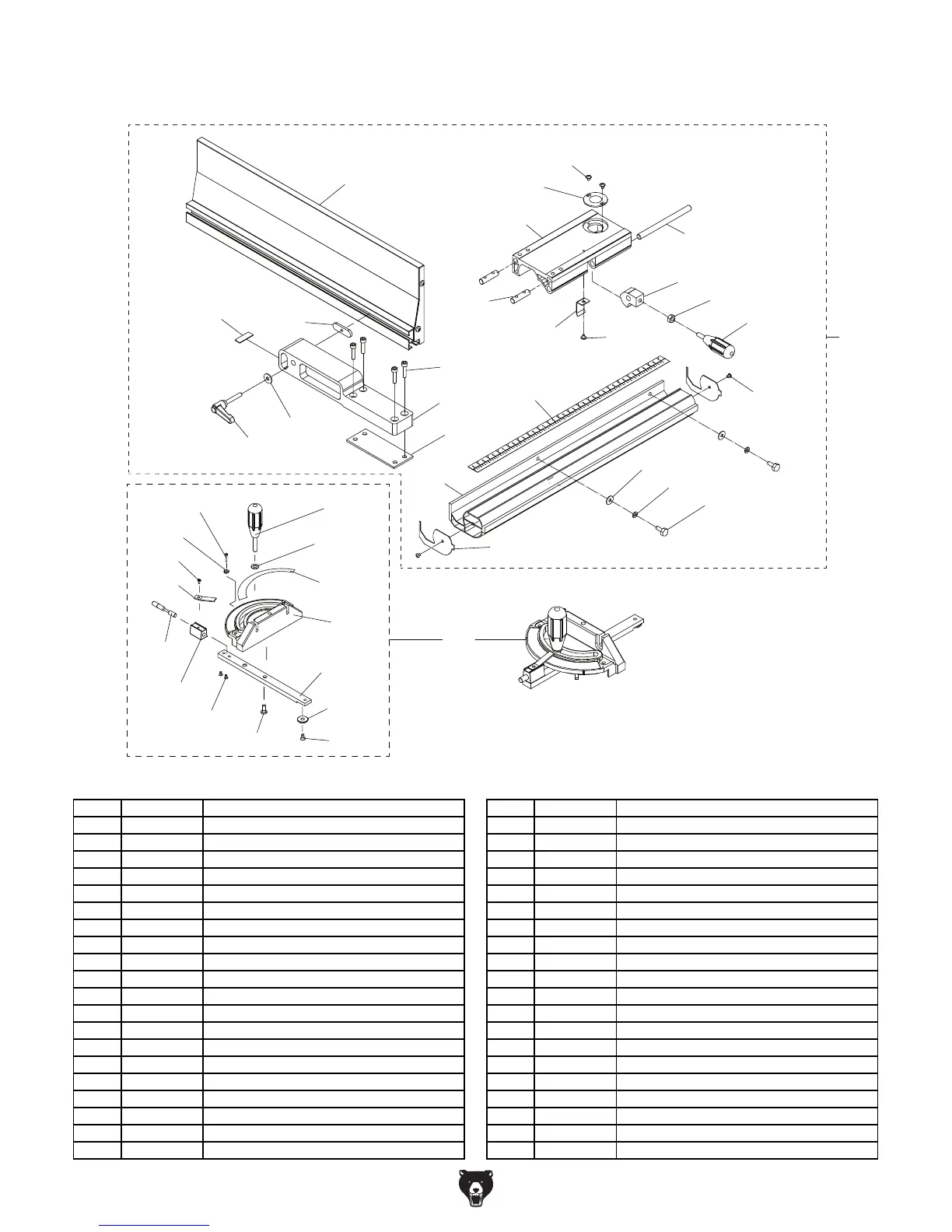

Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
121 P0817121 FENCE ASSEMBLY 121-24 P0817121-24 HEX BOLT M6-1 X 20
121-1 P0817121-1 FENCE RAIL 121-25 P0817121-25 FLANGE SCREW M4-.7 X 8
121-2 P0817121-2 FENCE BASE 121-26 P0817121-26 FLAT WASHER 6MM
121-3 P0817121-3 ALIGNMENT PIN 121-27 P0817121-27 FENCE MOUNTING PLATE
121-4 P0817121-4 LOCK CAM SHAFT 121-28 P0817121-28 FENCE
121-5 P0817121-5 SPRING PLATE 145 P0817145 MITER GAUGE ASSEMBLY
121-6 P0817121-6 ADJUSTABLE HANDLE M8-1.25 X 50, 78L 145-1 P0817145-1 MITER BAR
121-7 P0817121-7 FENCE MOUNT BRACKET 145-2 P0817145-2 MITER BAR GUIDE WASHER 6MM
121-8 P0817121-8 FLAT WASHER 8MM 145-3 P0817145-3 FLAT HD SCR M6-1 X 8
121-9 P0817121-9 FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77 145-4 P0817145-4 POINTER
121-10 P0817121-10 SLIDE (NYLON) 145-5 P0817145-5 PHLP HD SCR 3/8-24 X 1/2
121-11 P0817121-11 SCALE WINDOW 145-6 P0817145-6 SHOULDER SCREW M6-1 X 12, 8 X 4MM
121-12 P0817121-12 CAP SCREW M6-1 X 25 145-7 P0817145-7 MITER GAUGE BODY
121-13 P0817121-13 LOCK CAM 145-8 P0817145-8 FLAT WASHER 8MM
121-15 P0817121-15 HEX NUT M8-1.25 145-9 P0817145-9 HANDLE M8-1.25 X 38, 30 X 77
121-16 P0817121-16 FLANGE SCREW M4-.7 X 6 145-10 P0817145-10 INDEXING BLOCK
121-17 P0817121-17 FENCE RAIL END CAP 145-11 P0817145-11 INDEXING PIN
121-18 P0817121-18 FENCE GUIDE PLATE 145-12 P0817145-12 PHLP HD SCR 3/8-24 X 1/2
121-20 P0817121-20 TAP SCREW 3.5 X 12 145-13 P0817145-13 HEX NUT M4-.7
121-21 P0817121-21 FENCE SCALE 145-14 P0817145-14 PHLP HD SCR M4-.7 X 16
121-22 P0817121-22 LOCK WASHER 6MM 145-15 P0817145-15 MITER SCALE
