-30-
Model G0817 (Mfd. Since 05/16)
Fine Tune Tracking
During setup, the blade was tracked without the
machine connected to power (refer to Page 25).
In this procedure, the bandsaw is turned ON to
perform fine tuning of the tracking. Make small
changes with the blade tracking knob as you
monitor the effect on the blade tracking.
To fine tune blade tracking:
1. Close wheel covers and turn bandsaw ON.
2. Observe blade tracking path through clear
tracking window on right edge of bandsaw
(see Figures 42–43).

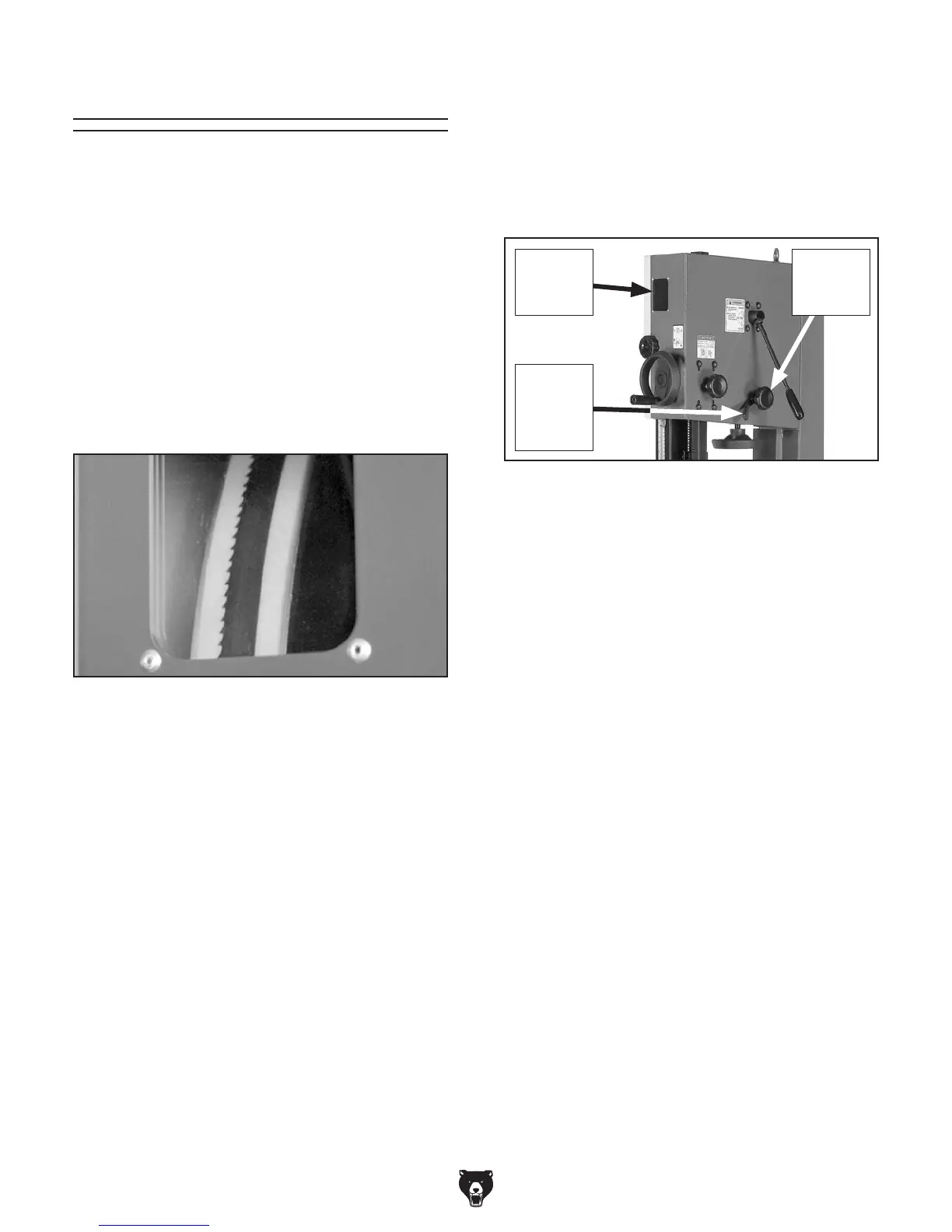

Figure 42. Example of blade, viewed through
tracking window.
3. If necessary, loosen tracking control lock
lever and use tracking control knob (see
Figure 43) to adjust the blade so it tracks on
the center of the wheel.
4. Tighten tracking control lock lever (see Figure
43) to secure setting, then turn machine OFF.
Figure 43. Fine-tune tracking controls.
Blade
Tracking
Window
Tracking
Control
Lock
Lever
Tracking
Control
Knob
