Model G0817 (Mfd. Since 05/16)
-41-
Setting Upper Blade
Guide Height
When cutting, the blade guides must always be
positioned so they just clear (no more than
1
⁄4")
the workpiece. The guide post, shown in Figure
64, allows the upper blade guide assembly to be
quickly adjusted for height.
To adjust height of upper blade guides:
1. DISCONNECT MACHINE FROM POWER!
2. Loosen guide post lock knob.
3. Use guide post elevation handwheel to adjust
height of guide post so that blade guide
assembly just clears (no more than
1
⁄4")
workpiece.
4. Retighten lock knob to secure setting.

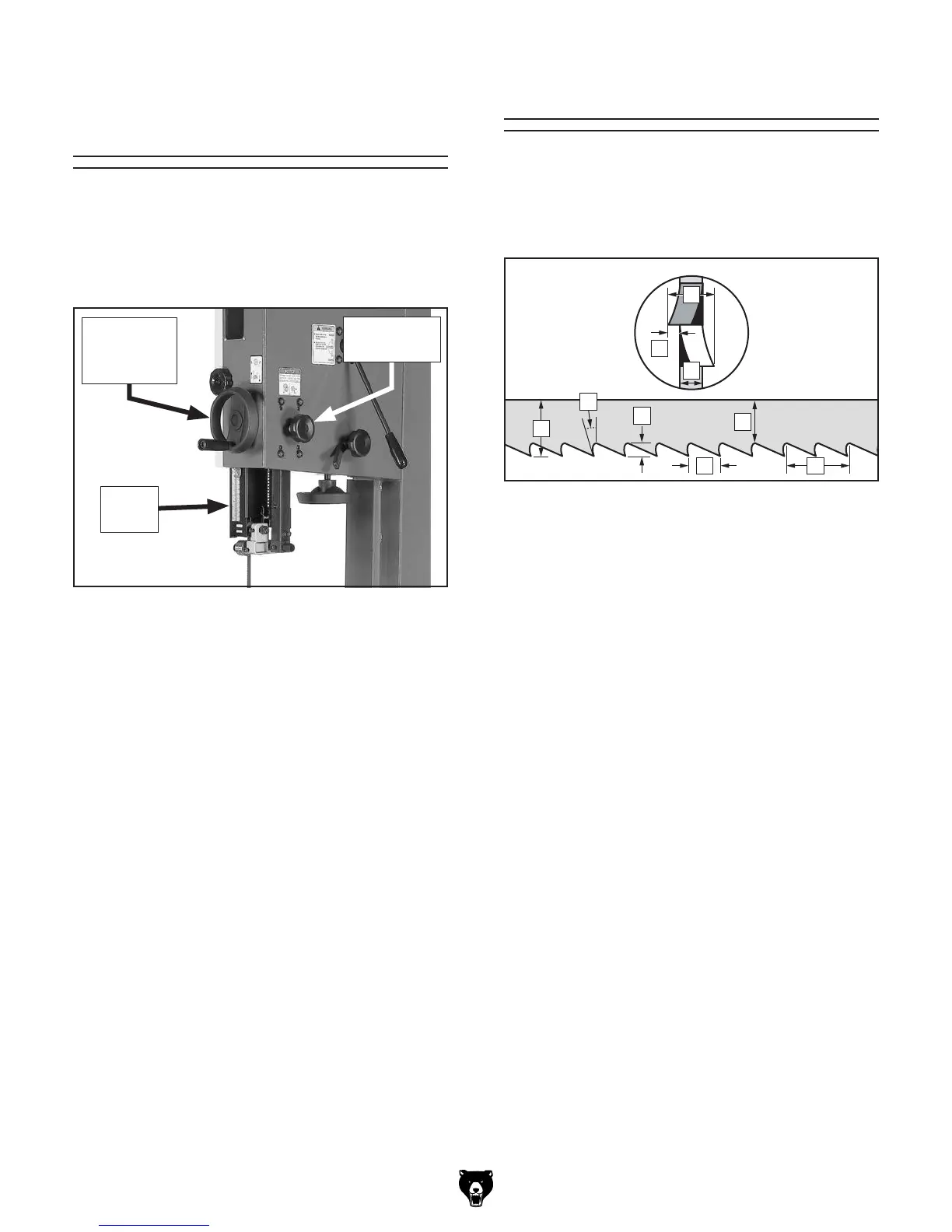

Figure 64. Location of guide post, elevation
handwheel, and lock knob.
Guide Post
Lock Knob
Guide
Post
Guide Post
Elevation
Handwheel
Blade Selection
Blade Terminology
B
C
G
H
D
E
F
I
A
Figure 65. Bandsaw blade components.
A. Kerf: The amount of material removed by the
blade during cutting.
B. Tooth Set: The amount each tooth is bent
left or right along the blade.
C. Gauge: The thickness of the blade.
D. Blade Width: The widest point of the blade
measured from the tip of the tooth to the back
edge of the blade.
E. Tooth Rake: The angle of the tooth face from
a line perpendicular to the length of the blade.
F. Gullet Depth: The distance from the tooth tip
to the bottom of the curved area (gullet).
G. Tooth Pitch: The distance between tooth
tips.
H. Blade Back: The distance between the bot-
tom of the gullet and the back edge of the
blade.
I. TPI: The number of teeth per inch measured
from gullet to gullet.
Selecting the right blade requires a knowledge
of the various blade characteristics to match the
blade with the particular cutting operation.
