-20-
Model G4003 (Mfd. Since 6/20)
Spindle Speeds
SECTION 4: CONTROLS

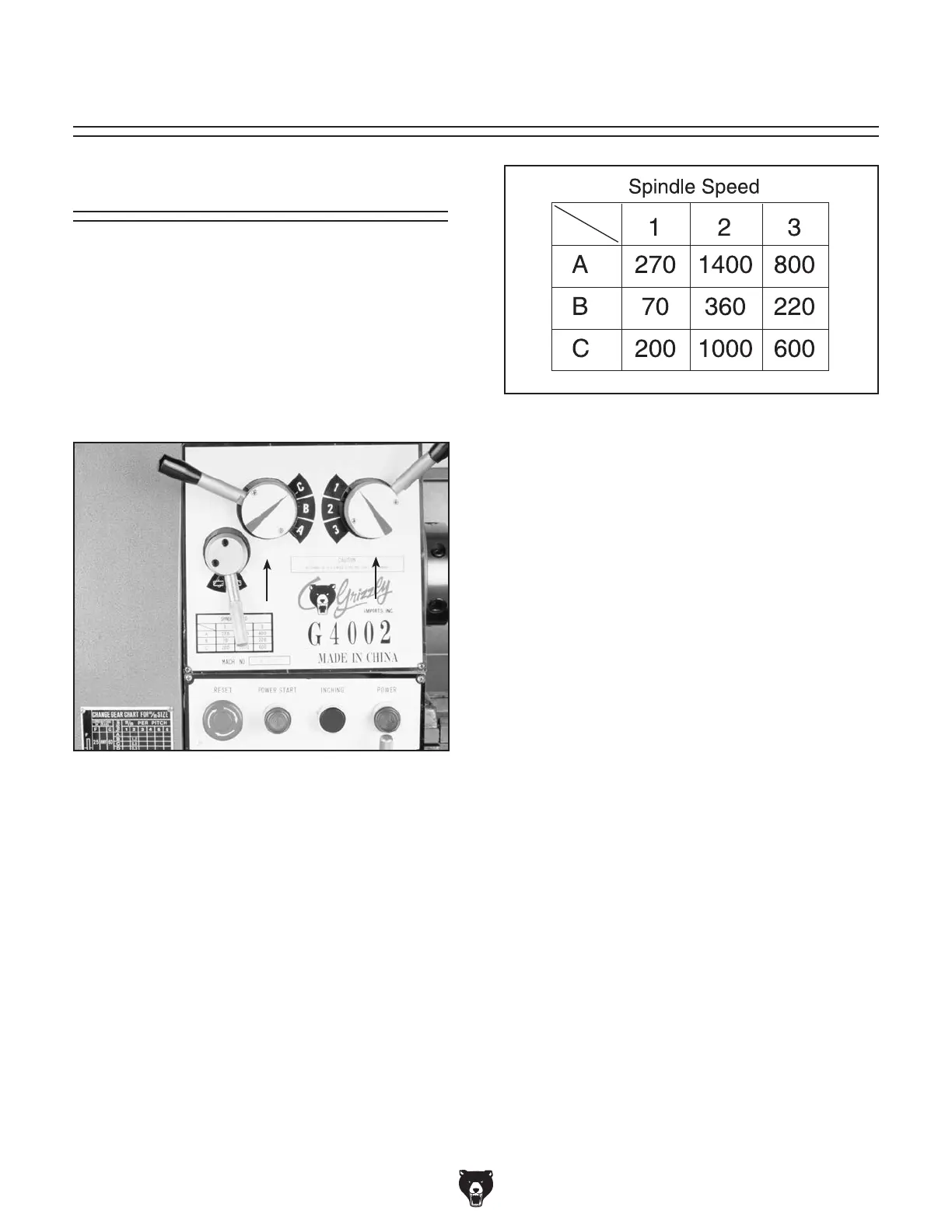

Figure 12. Speed shifting levers.
Never change speeds while spindle or motor
is in motion.
The speed of the spindle is controlled by the posi-
tions of the speed control knobs. See Figure 12.
By positioning the knobs using the chart in Figure
8, you can achieve all of these speed ranges:
70, 200, 220, 270, 360, 600, 800, 1000 and 1400
RPM.
The chart above shows the various combinations
of knob positions for achieving a desired speed.
Example:
To select a spindle speed of 600 RPM, move the
left-hand selector knob until the indicator arrow on
its hub is pointing to the “C”. Move the right-hand
selector knob until its indicator arrow is pointed at
the “3”.
Figure 13. Speed chart.
