Grizzly G4002 User Manual

Model G4003 (Mfd. Since 6/20)
-55-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
1001V2
1002
1002B
1003
1004
1005
1008
1009
1010
1011

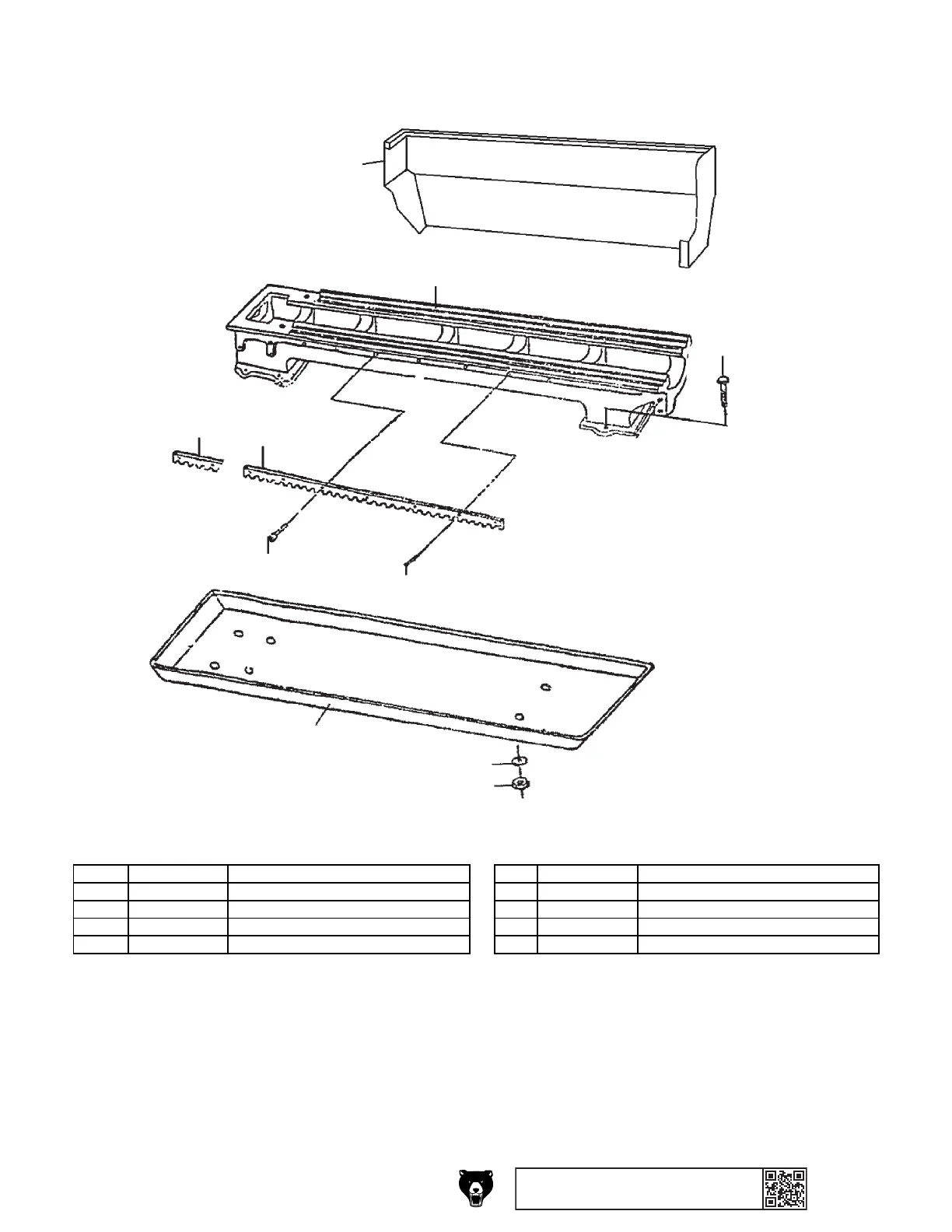

Bed
REF PART # DESCRIPTION REF PART # DESCRIPTION
1001V2 P40031001V2 LATHE BED V2.06.20 1005 P40031005 CAP SCREW M12-1.75 X 40
1002 P40031002 RACK 1008 P40031008 CHIP PAN 19" X 61"
1002B P40031002B RACK 6-1/8" SHORT 1009 P40031009 FLAT WASHER 12MM
1003 P40031003 ROLL PIN 5 X 24 1010 P40031010 HEX NUT M12-1.75
1004 P40031004 CAP SCREW M6-1 X 14 1011 P40031011 SPLASH GUARD 46"
