-56-
Model G4003 (Mfd. Since 6/20)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND
AMOUNT.
CHECK OIL
LEVEL BEFORE USING!
MODEL G4003
12" x 36" LATHE
Specifications
Motor: 2 HP, 220V, 1-Ph, 60 Hz
Full Load Current Rating: 12A
Swing Over Bed: 12"
Swing Over Gap: 17"
Swing Over Cross Slide: 7"
Distance Between Centers: 36"
Spindle Type: D1-4 Camlock
Spindle Taper: MT#5
Spindle Bore: 1.417"
Tailstock Taper: MT#3
Cross Slide Travel: 6-1/4"
Compound Travel: 3-1/4"
Weight: 917 lbs.
WARNING!
S/N
Date
Mfd. for Grizzly in China
To reduce the risk of serious injury while using this machine:
1. Read and understand owner’s manual before starting.
2. Always wear approved safety glasses AND a face shield.
3. Only plug power cord into a grounded outlet.
4. Tie back long hair, roll up sleeves, and DO NOT wear
loose clothing, gloves, or jewelry.
5. Disconnect power before setting up, adjusting, or
servicing.
6. Rotate workpiece by hand to ensure clearance before
starting.
7. Test each new workpiece setup for safe rotation; start
with slowest speed and stand to side of lathe until safe
rotation verified.
8. Keep all guards and covers in place during operation.
9. Never leave chuck key in chuck.
10. Never leave lathe running unattended.
11. DO NOT reverse spindle rotation while spindle is
moving.
12. Properly support long workpieces with an appropriate
rest.
13. DO NOT expose to rain or use in wet locations.
14. Prevent unauthorized use by children or untrained
users.
1201
1202
1203
1204
1205
1206 1207
1208 1209
1210
1211
1212
1213
1214
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 P40031201 ELECTRICITY LABEL LARGE 1208 P40031208 I MPACT I NJ URY HAZARD LABEL
1202 P40031202 FLUID CAPACITY LABEL 1209 P40031209 SPINDLE SPEED HAZARD LABEL
1203 P40031203 TRAINED OPERATORS NOTICE LABEL 1210 P40031210 STOP OIL FILL TAG
1204 P40031204 ENTANGLEMENT HAZARD LABEL 1211 P40031211 MACHINE ID LABEL
1205 P40031205 FACE SHIELD & SAFETY GLASSES LABEL 1212 P40031212 ELECTRICITY LABEL SMALL
1206 P40031206 DISCONNECT POWER LABEL 1213 P40031213 TOUCH-UP PAINT, GRI ZZLY GREEN
1207 P40031207 READ MANUAL LABEL 1214 P40031214 PI NCH ENTANGLEMENT HAZARD LABEL

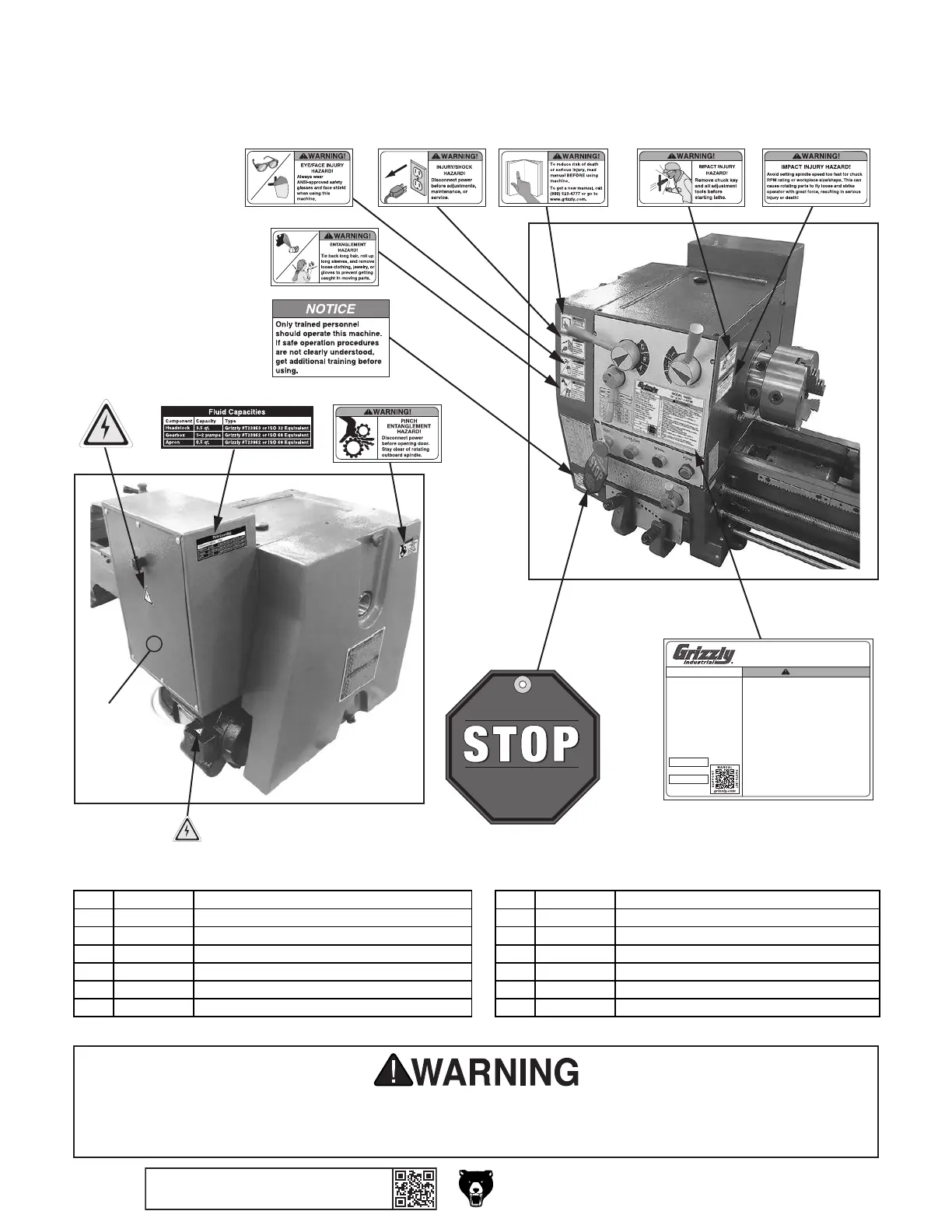

Labels & Cosmetics
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
