Grizzly G4002 User Manual

Model G4003 (Mfd. Since 6/20)
-53-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
820

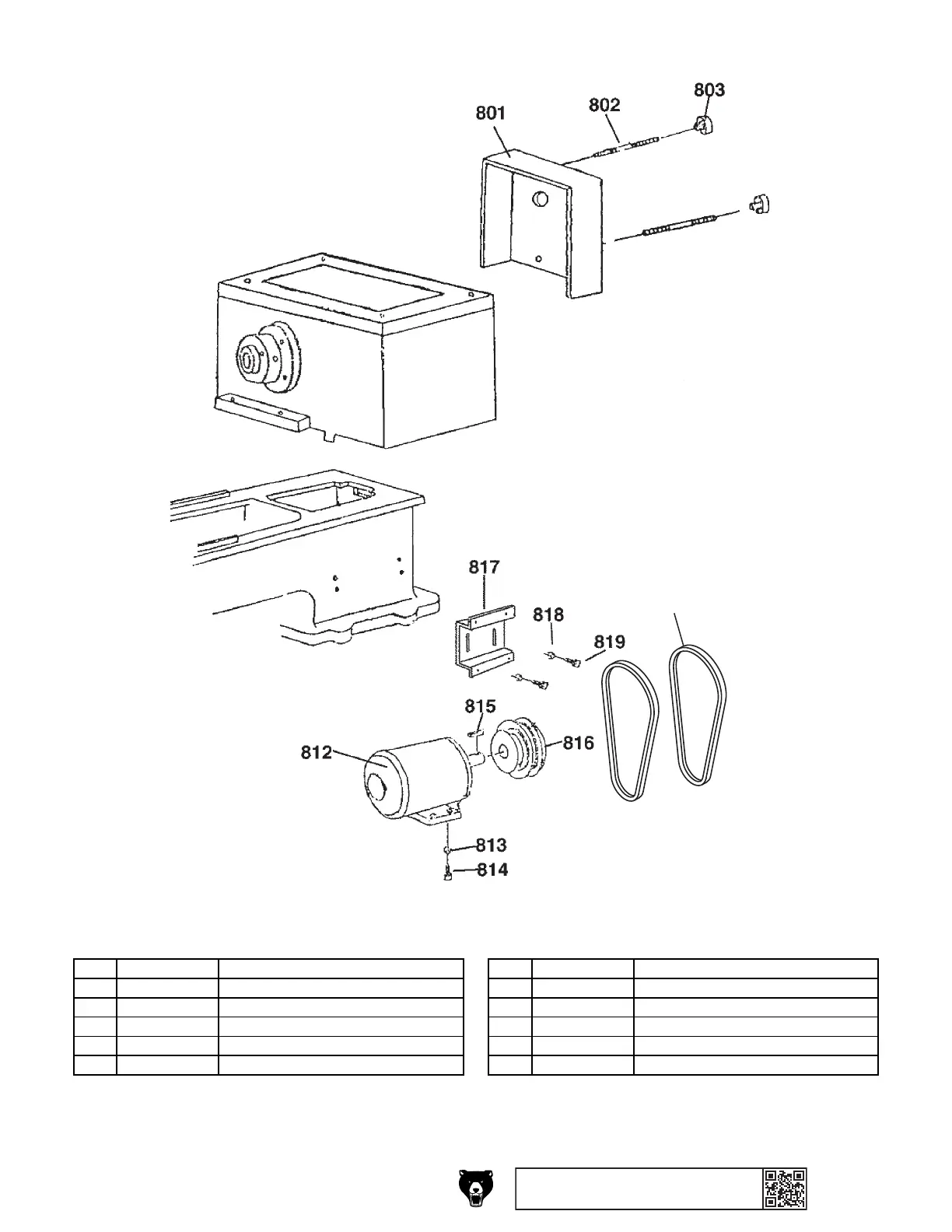

Motor Assembly
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P4003801 COVER 815 P4003815 KEY
802 P4003802 SCREW 816 P4003816 PULLEY
803 P4003803 NUT 817 P4003817 MOTOR MOUNT BRACKET
812 P4003812 MOTOR 2 HP 1.1KW V2.12.97 818 P4003818 FLAT WASHER 12MM
813 P4003813 FLAT WASHER 10MM 819 P4003819 HEX BOLT M10-1.5 X 30
814 P4003814 HEX BOLT M10-1.5 X 30 820 P4003820 V-BELT A29
