Grizzly G4002 User Manual

-54-
Model G4003 (Mfd. Since 6/20)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918V2
919V2
946
947
948
949
950
902

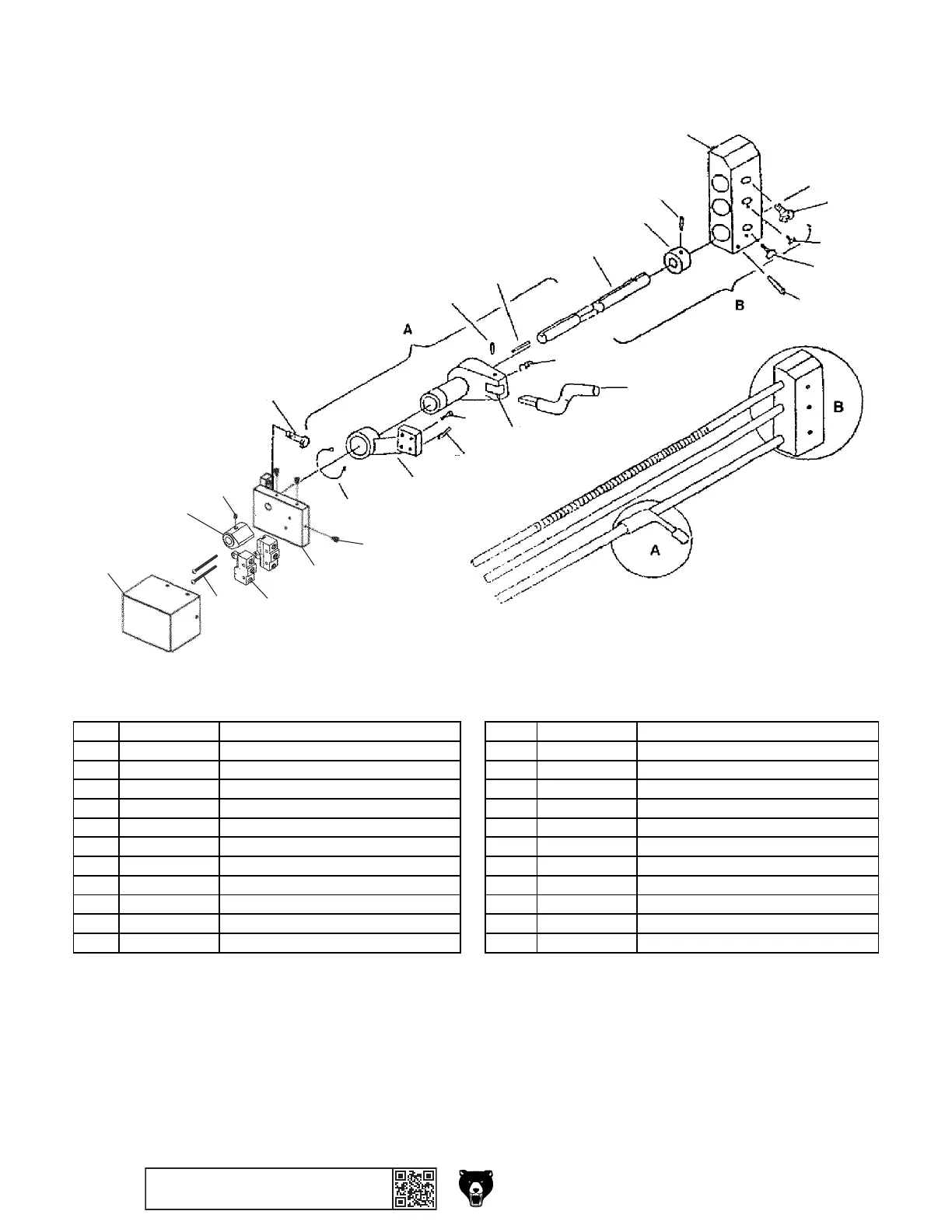

Feed Rod Leadscrew
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 P4003901 BRACKET 913 P4003913 CAP SCREW M6-1 X 14
902 P4003902 CAP SCREW M6-1 X 11 914 P4003914 ROLL PIN 5 X 25
903 P4003903 OIL CAP 6MM 915 P4003915 BRACKET
904 P4003904 ROLL PIN 6 X 55 916 P4003916 EXT RETAI NI NG RI NG 30MM
905 P4003905 SET SCREW M6-1 X 6 917 P4003917 CAP SCREW M8-1.25 X 25
906 P4003906 COLLAR 918V2 P4003918V2 CONNECTION BRACKET V2.12.14
907 P4003907 SPINDLE ROD 919V2 P4003919V2 SPINDLE ON/OFF SWITCH V2.12.14
908 P4003908 KEY 946 P4003946 CAP SCREW M4-.7 X 6
909 P4003909 ROLL PIN 4 X 20 947 P4003947 SET SCREW M6-1 X 8
910 P4003910 COMPRESSION SPRING 7020 948 P4003948 SPINDLE SWI TCH ARM
911 P4003911 HANDLE 949 P4003949 SPINDLE SWITCH BOX
912 P4003912 BRACKET 950 P4003950 BUTTON HD CAP SCR M4-.7 X 45
