Grizzly T33903 User Manual

Model T33903/T33904 (Mfd. Since 07/23)
-33-
Adjusting
Laser Guide
The laser guide should be checked and adjusted
for accuracy when you change drill bits, raise or
lower the table, or change workpiece thickness.

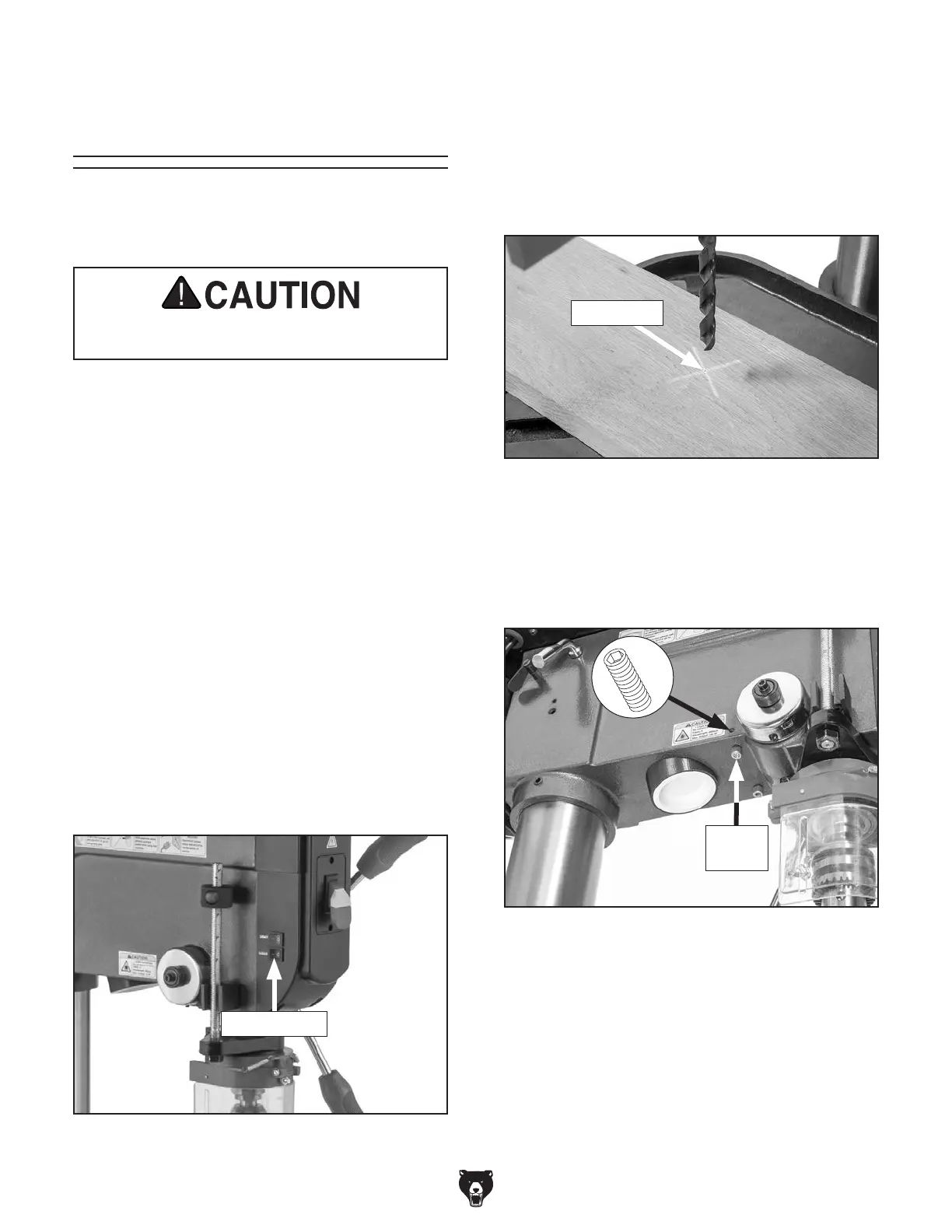

Figure 43. Location of laser switch.
Laser Switch
Item Needed Qty
Hex Wrench 3mm .............................................. 1
Figure 44. Example of laser crosshairs aligned
with indentation on workpiece.
Indentation
Figure 45. Laser module adjustment
components.
x 2
Laser
(1 of 2)
To adjust laser guide:
1. DISCONNECT MACHINE FROM POWER!
2.
Install drill bit in chuck (see Installing/
Removing Drill Bit on Page 30).
3.
Clamp workpiece to table.
4.
Adjust table so workpiece is just below drill
bit, then lock table in position.
5.
Lower drill bit so it touches workpiece, mak-
ing slight indentation in surface, then raise
bit.
6
. Connect drill press to power. Use laser switch
to turn laser guide ON (see Figure 43).
7
. Loosen (2) set screws shown in Figure 45,
then adjust laser modules by hand, position-
ing them so crosshairs align with indentation
you made in Step 5.
DO NOT look directly into laser. Eye injury
may result.
— If laser crosshairs align with indentation
you made in Step 5 (see Figure 44), no
adjustment is necessary.
— If laser crosshairs do not align with inden-
tation you made in Step 5 (see Figure
44), proceed to Step 7.
— Turning each laser module will adjust each
crosshair line angle.
— Adjusting laser module position in seat will
adjust crosshair line positions.
8
. Once crosshairs are aligned with indenta-
tion in workpiece, tighten screws loosened in
Step 7 to secure laser module positions.
