Model T33903/T33904 (Mfd. Since 07/23)

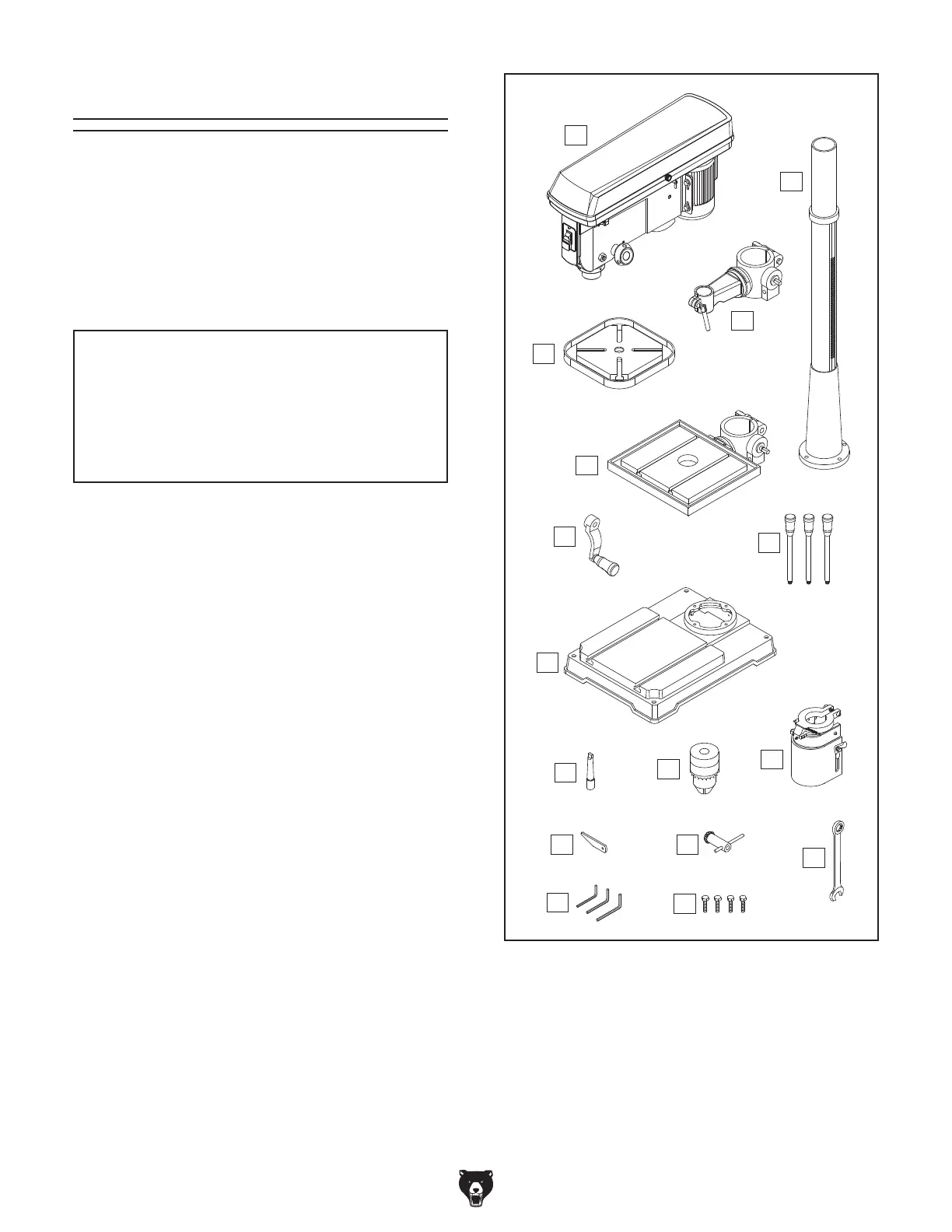

Figure 9. Inventory.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Box 1 (Figure 9) Qty
A. Headstock .................................................. 1
B. Column Assembly ...................................... 1
C. Table Support Bracket (T33903 Only) ....... 1
D. Table (T33903 Only) .................................. 1
E. Table Assembly (T33904 Only) .................. 1
F. Table Height Crank ..................................... 1
G. Downfeed Handles ..................................... 3
H. Base ........................................................... 1
I. Arbor MT#4 x JT3 ....................................... 1
J. Drill Chuck JT3
1
⁄8"–
5
⁄8" .............................. 1
K. Chuck Guard .............................................. 1
L. Drift Key ...................................................... 1
M. Drill Chuck Key ........................................... 1
N. Combo Wrench 30mm ............................... 1
O. Hex Wrenches 3, 4, 5mm .....................1 Ea.
P. Hex Bolts M10-1.5 x 30 .............................. 4
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
