HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
8. With lifting help, carefully lift headstock and
slide it onto column (see Figure 20).
9.
Use measuring tape or ruler to find and mark
center of base, then suspend plumb bob from
center of headstock spindle over base, as
shown in Figure 21.
10.
Adjust headstock on column until it is directly
over center of base, as indicated by plumb
bob, then secure headstock by tightening (2)
set screws shown in Figure 20.
11.
Place chuck guard over quill and secure by
tightening Phillips head screw and hex nut
(see Figure 22).
Tip: Use table height crank to adjust table up
and to hold guard in place while you tighten
fasteners.
Plumb
Bob
7. T33903 Only: Install table in table support
bracket, then tighten table pivot lock handle
to secure (see Figure 19).
Table
Table Pivot
Lock Handle
Table Support
Bracket

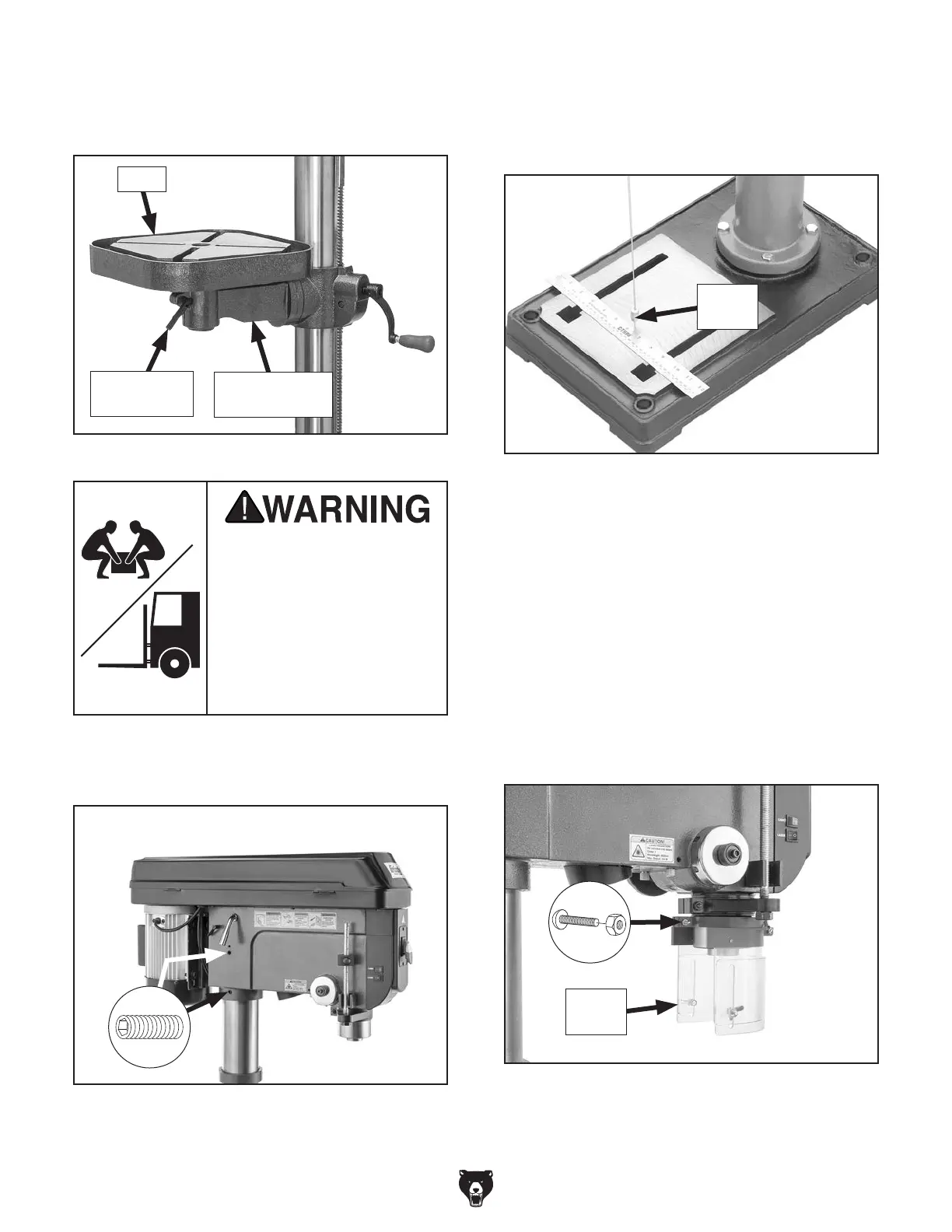

Figure 19. T33903 table installed.
Figure 20. Headstock placed on column and
location of headstock set screws.
Figure 21. Example of aligning headstock with
center of base.
Chuck
Guard
Figure 22. Chuck guard installed.
