M. Belt Tension Lever: Adjusts motor position
to tension and release belts for changing
spindle speed, and for servicing.
N. Depth Stop: Stops spindle travel at prede-
termined drilling depth. Top of depth stop nut
indicates depth on scale.
O. Spindle Return Spring: Automatically
returns quill into headstock.
Table
R. Table Height Crank: Adjusts table up and
down.
S. Tilt Scale: Displays current table tilt angle.
T. Table Height Lock Handle: Loosens to allow
adjustment of table position on column; tight-
ens to lock table position.
R
S
T

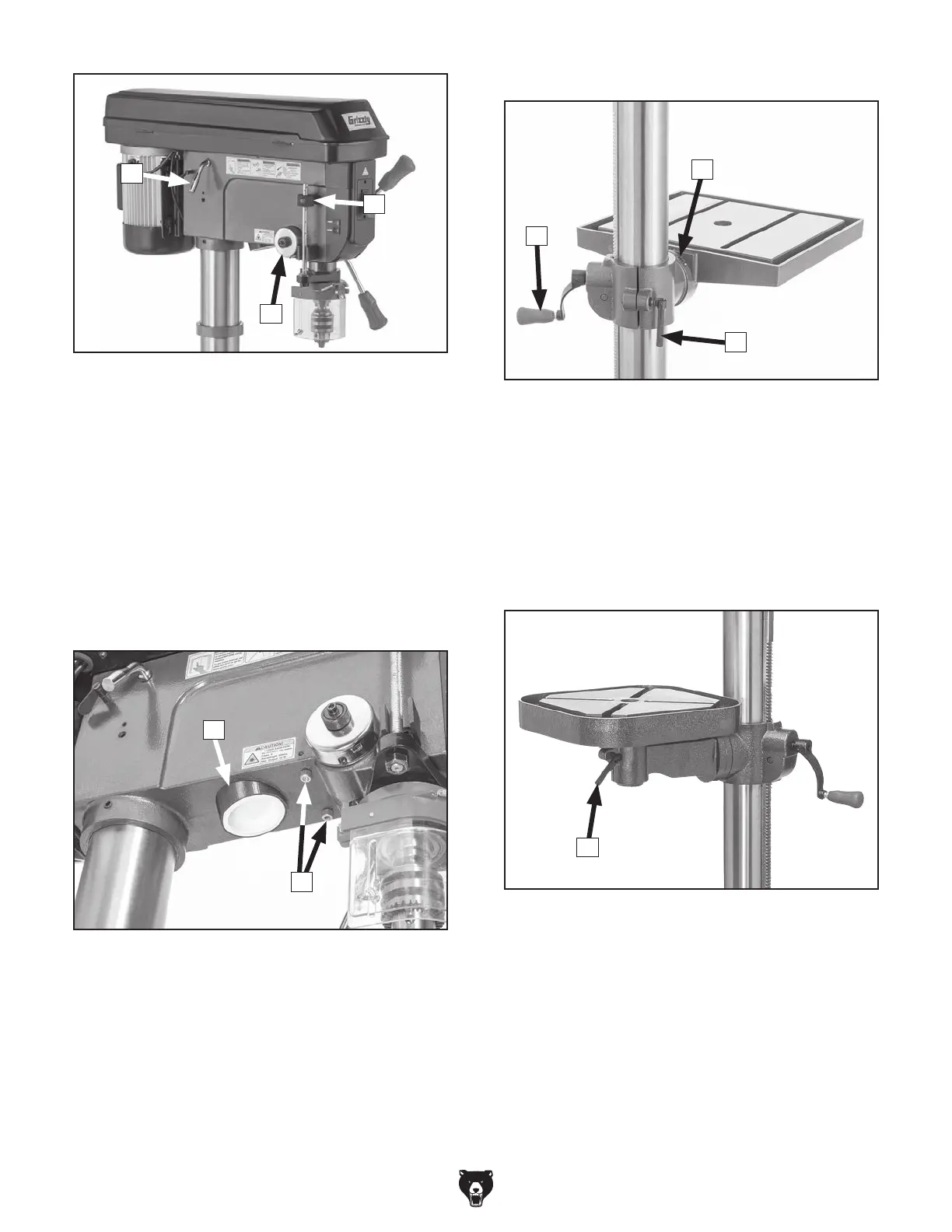

Figure 4. Left headstock components.
O
M
N
P. LED: Illuminates work area.
Q. Laser Guide: Projects crosshairs on table to
align workpiece to drill bit.
P
LED & Laser Guide
Figure 5. LED and laser guide.
Q
P
Figure 6. Table components (T33904 shown).
U. Table Pivot Lock Handle (T33903 Only):
Loosens to allow rotation of table; tightens to
lock table rotation.
Figure 7. Table pivot lock handle.
U
