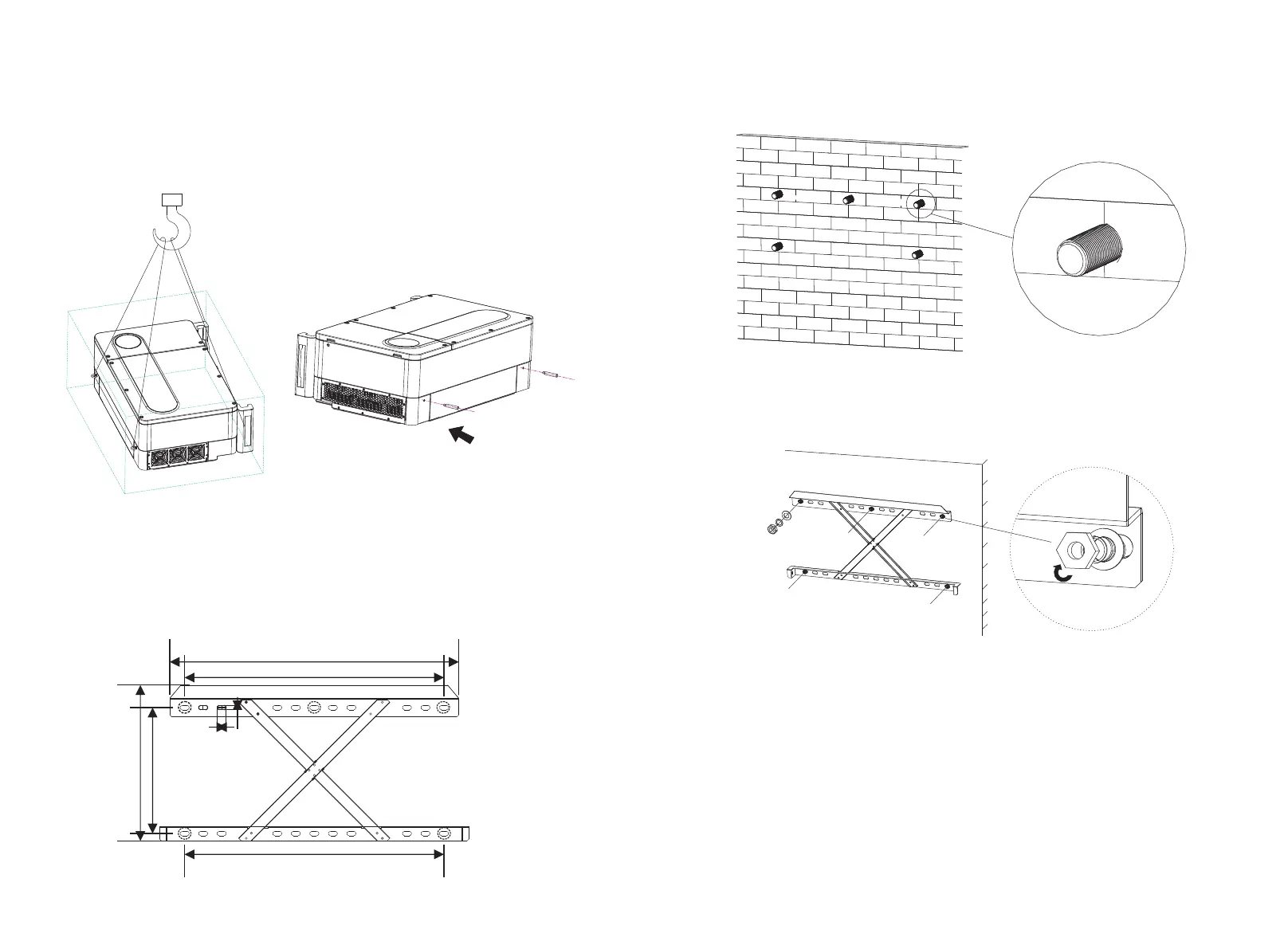

5.4 Wall Mount Bracket Installation
Before install the inverter you need install the wall mount bracket so that the inverter
can be firmly installed on the wall.
Wall mount plan:
Fig 5.7
Fig 5.8
Fig 5.9
Fig 5.10
1>Use the wall mount plate as a template drill holes on the wall and put in expansion
bolts.
2>Follow the following drawing put the bolt to install the wall mount plate on the wall.
Fig 5.11
Notice: Do not install inverter unless you have confirmed the wall mount plate has been
firmly installed on the wall.
Notice：Expansion bolt should be installed on solid walls with at least 100mm thickness.
5.5 Installing The Inverter
After the wall mount bracket has been firmly installed on the wall , put the inverter on
that plate.
1>Use the rope(must meet the weight requirement of the inverter) through two rings
and lift the inverter up, just as following Figure.
2>Before hanging the inverter on the wall mount bracket use screws to fix the inverter
and please keep the inverter balance.
3>Check the inverter if it is firm enough and lock all the screws.
1413
Plan 2(Optional):
1>As shown in Fig5.8, 4-6 persons lift the inverter out of package, swap the ring to
moving handles.
2>When you are moving the inverter, please keep the balance.
Notice: There will be front and bottom mark on the package.
780.0
340.0
420.8
50*14=700.0
50*14=700.0
25.0
12.0
