4>Set up the equipment
The device management page selects MAX. The serial number of the device to be set can
be found in the list.
Notice: The following operations are requested by professionals.
5>Check detailed data
Double-click the device serial number in the device list. The detailed data page is
displayed. Data pages can be viewed by date or exported.

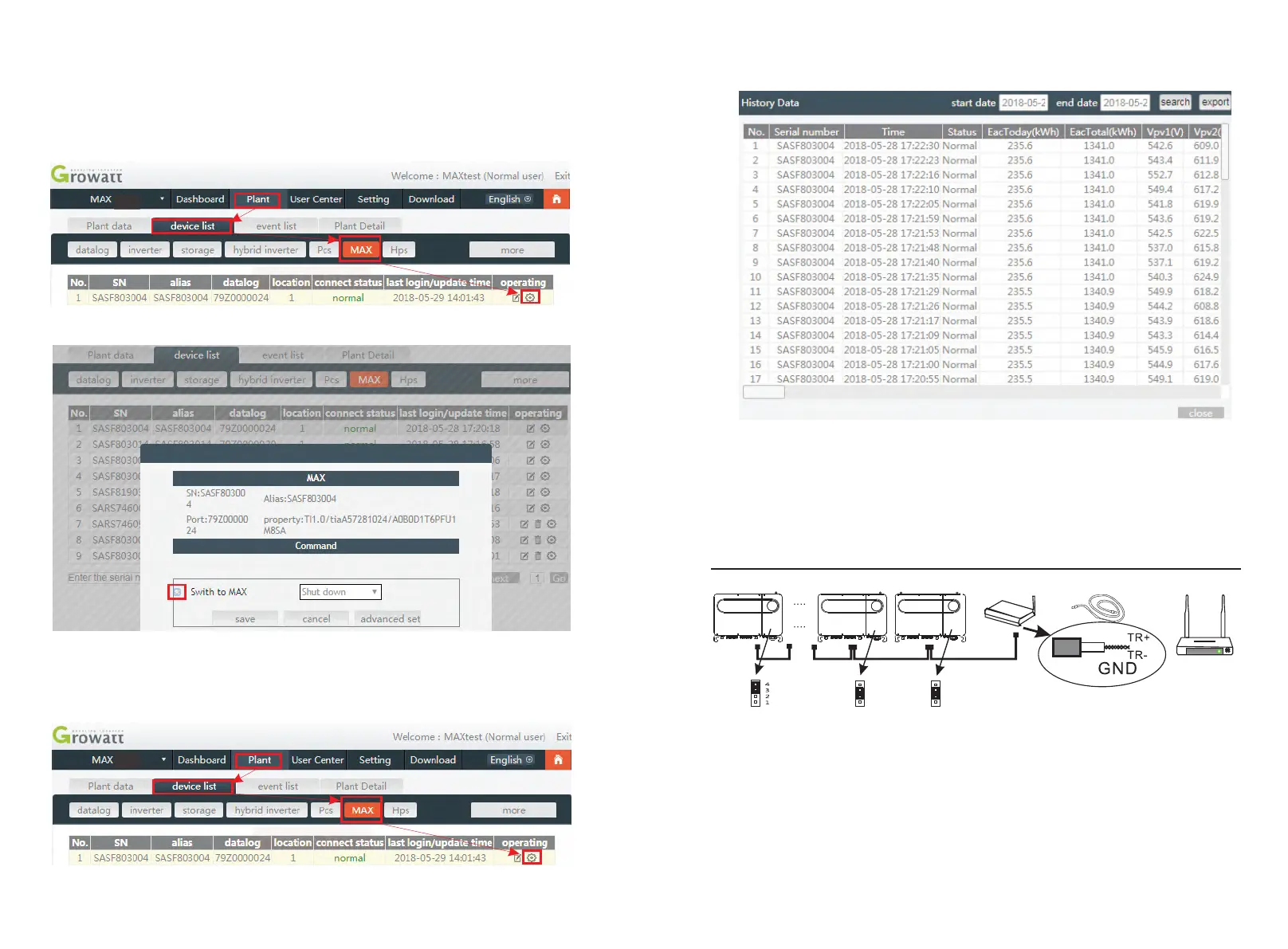

Fig 8.23
Fig 8.22
Fig 8.21
Fig 8.24
8.1.2.2 Shinemaster monitoring
This is a cost-effective and compact monitoring device that is specially designed for solar
power plants, with a high-speed CPU and a stable Linux system that intelligently records
the user's system characteristics.
Feature
1> A versatile and high performance communication data logger that notifies the user
of system status at any time.
2> Flexible parameter setting, system information management, error prompting and
recording, high-capacity storage.
3> Collect data and upload data to Growatt in real time over the network.
Note: The smart meter and environmental monitor must be Growatt's designated
manufacturer, otherwise monitoring will not be possible. When RS485 of multiple
machines is used in parallel, please connect the ground wire according to section 6.3.1.
-
Multiple inverters
ShineMaster
cable
computer
RS485 twisted pair cable
